TubMixer™, Scald protection, thermostatic mixing valve
Product Description
Scald protection, thermostatic mixing valve
Point-of-use applications - ASSE 1070
Mixed outlet temperature limited to 120 ºF
Model Options:
- Mixing valve with inlet check valves

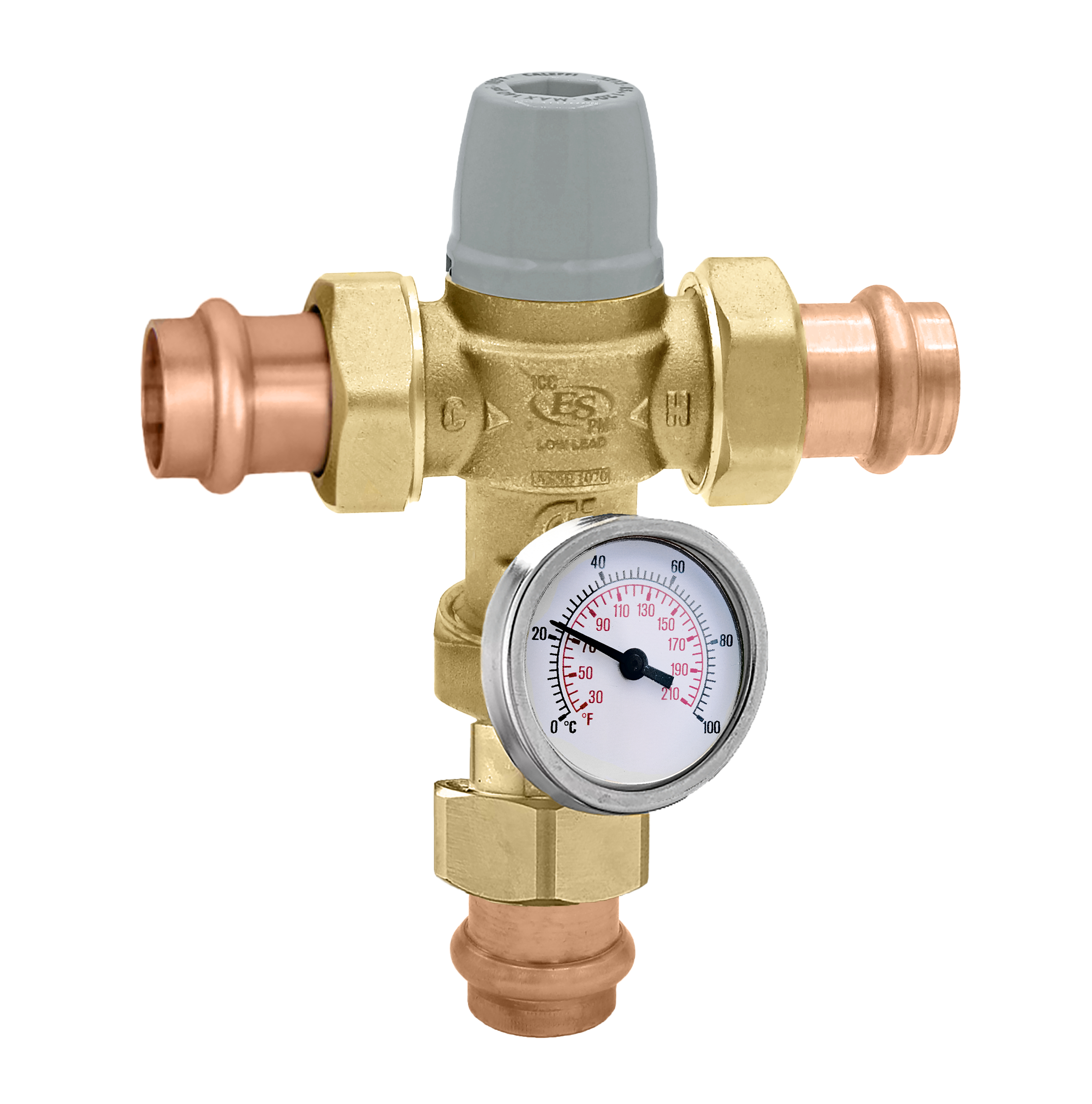

- Mixing valve, check valves with mixed outlet temperature gauge
Connection Options:
- Sizes: ⅜” - 1”
- Connection types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion, Compression
Technical data
Temperature adjustment range:
85 – 120 °F
Maximum inlet temperature:
185 °F
Maximum working pressure:
150 psi
Cv:
2
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Actions |
|---|---|---|---|
| 521333A | 3/8" Compression union |
- | |
|
3D models
Tender text
CALEFFI, 521333A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/8" Compression, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521342A | 1/2" NPT male union |
- | |
|
3D models
Tender text
CALEFFI, 521342A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1/2" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
SCIP code
84860a16-4cdc-47ef-9f01-bc98d4d92c95
|
|||
| 521346A | 1/2" Press union |
- | |
|
3D models
Tender text
CALEFFI, 521346A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" Press, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521347A | 1/2" PEX crimp union |
- | |
|
3D models
Tender text
CALEFFI, 521347A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1/2" PEX crimp, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521348A | 1/2" PEX expansion union |
- | |
|
3D models
Tender text
CALEFFI, 521348A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" PEX expansion, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521349A | 1/2" Sweat union |
- | |
|
3D models
Tender text
CALEFFI, 521349A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521352A | 3/4" NPT male union |
- | |
|
3D models
Tender text
CALEFFI, 521352A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521356A | 3/4" Press union |
- | |
|
3D models
Tender text
CALEFFI, 521356A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" Press, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521357A | 3/4" PEX crimp union |
- | |
|
3D models
Tender text
CALEFFI, 521357A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" PEX crimp, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521358A | 3/4" PEX expansion union |
- | |
|
3D models
Tender text
CALEFFI, 521358A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" PEX expansion, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521359A | 3/4" Sweat union |
- | |
|
3D models
Tender text
CALEFFI, 521359A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521362A | 1" NPT male union |
- | |
|
3D models
Tender text
CALEFFI, 521362A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521366A | 1" Press union |
- | |
|
3D models
Tender text
CALEFFI, 521366A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" Press, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521367A | 1" PEX crimp union |
- | |
|
3D models
Tender text
CALEFFI, 521367A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1" PEX crimp, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521368A | 1" PEX expansion union |
- | |
|
3D models
Tender text
CALEFFI, 521368A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" PEX expansion, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521369A | 1" Sweat union |
- | |
|
3D models
Tender text
CALEFFI, 521369A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521301A | 1" G (ISO 228-1A) M |
Body only | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 521301A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: -, body only. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
SCIP code
dbc59c81-d043-43c7-8774-9d515e952fbe
|
|||
| 521333A 002 | 3/8" Compression union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521333A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/8" Compression, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521342A 002 | 1/2" NPT male union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521342A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521346A 002 | 1/2" Press union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521346A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" Press, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521347A 002 | 1/2" PEX crimp union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521347A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" PEX crimp, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521348A 002 | 1/2" PEX expansion union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521348A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" PEX expansion, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521349A 002 | 1/2" Sweat union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521349A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1/2" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521352A 002 | 3/4" NPT male union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521352A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521356A 002 | 3/4" Press union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521356A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" Press, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521357A 002 | 3/4" PEX crimp union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521357A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" PEX crimp, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521358A 002 | 3/4" PEX expansion union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521358A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" PEX expansion, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521359A 002 | 3/4" Sweat union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521359A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 3/4" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521362A 002 | 1" NPT male union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521362A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521366A 002 | 1" Press union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521366A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" Press, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521367A 002 | 1" PEX crimp union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521367A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" PEX crimp, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521368A 002 | 1" PEX expansion union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521368A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" PEX expansion, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521369A 002 | 1" Sweat union |
Temp. gauge | |
|
3D models
Tender text
CALEFFI, 521369A 002, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Connection: 1" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
