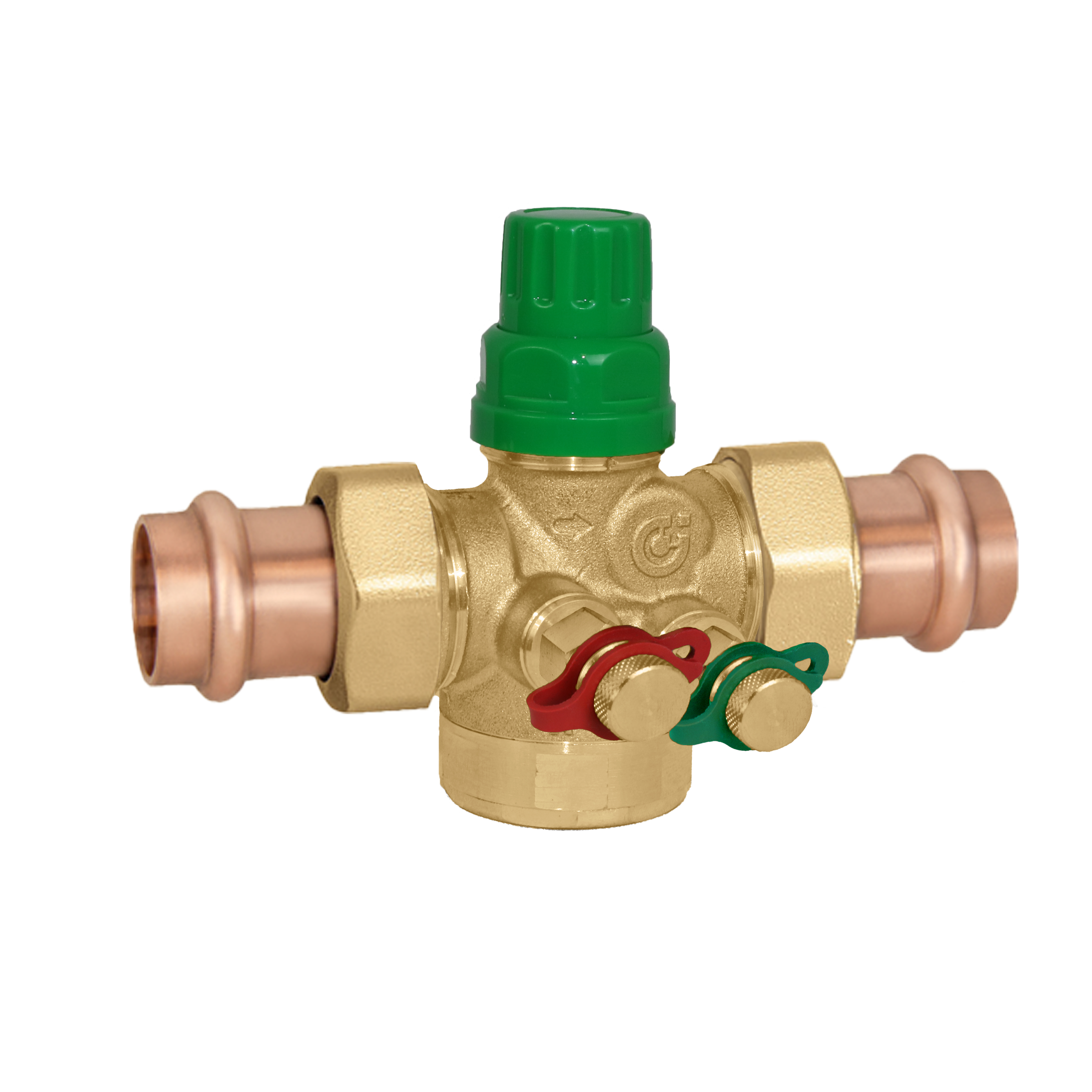

FLOWMATIC, Pressure independent control valve (press)
Product Description
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Technical data
Maximum operating pressure:
360 psi
Medium temperature range:
-4 – 248 °F
Maximum glycol %:
50 %
Medium:
water, glycol solutions
Material:
DZR brass
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 145446A G90 | 1/2" Press press union |
||
|
3D models
Tender text
CALEFFI, 145446A G90, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 1/2" PRS, press union. Maximum operating pressure: 360 psi. Medium temperature range: -4 – 248 °F. Maximum glycol %: 50 %. Medium: water, glycol solutions. Material: DZR brass.
|
|||
| 145446A 1G8 | 1/2" Press press union |
||
|
3D models
Tender text
CALEFFI, 145446A 1G8, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 1/2" PRS, press union.
|
|||
| 145446A 3G5 | 1/2" Press press union |
||
|
3D models
Tender text
CALEFFI, 145446A 3G5, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 1/2" PRS, press union.
|
|||
| 145556A G90 | 3/4" Press press union |
||
|
3D models
Tender text
CALEFFI, 145556A G90, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 3/4" PRS, press union.
|
|||
| 145556A 1G8 | 3/4" Press press union |
||
|
3D models
Tender text
CALEFFI, 145556A 1G8, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 3/4" PRS, press union.
|
|||
| 145556A 3G5 | 3/4" Press press union |
||
|
3D models
Tender text
CALEFFI, 145556A 3G5, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 3/4" PRS, press union.
|
|||
| 145556A 5G3 | 3/4" Press press union |
||
|
3D models
Tender text
CALEFFI, 145556A 5G3, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 3/4" PRS, press union.
|
|||
| 145666A 7G9 | 1" Press press union |
||
|
3D models
Tender text
CALEFFI, 145666A 7G9, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 1" PRS, press union.
|
|||
| 145666A 13G | 1" Press press union |
||
|
3D models
Tender text
CALEFFI, 145666A 13G, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 1" PRS, press union.
|
|||
| 145666A 16G | 1" Press press union |
||
|
3D models
Tender text
CALEFFI, 145666A 16G, FLOWMATIC.
Pressure independent control valve (press)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
connection: 1" PRS, press union.
|
|||
