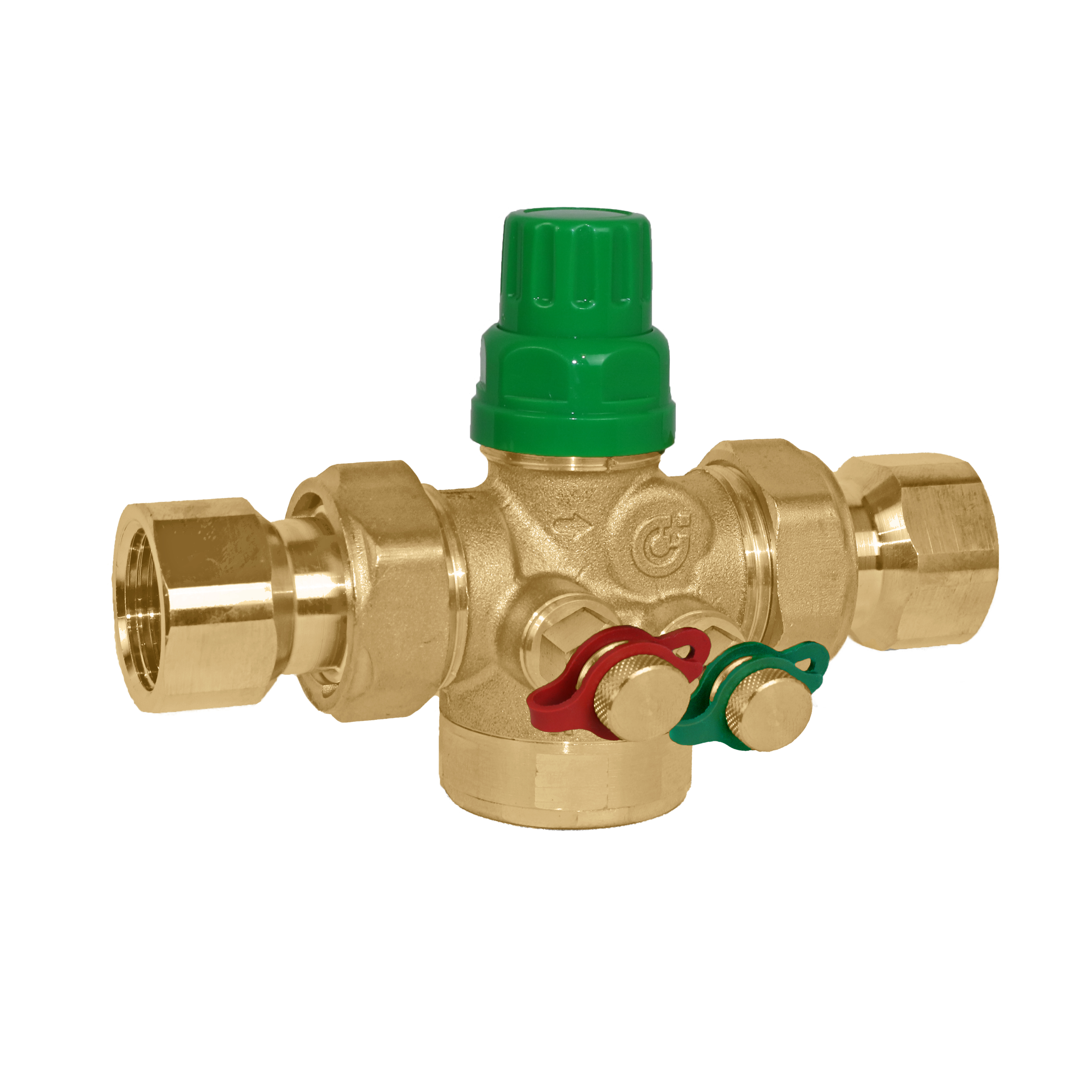

FLOWMATIC, Pressure independent control valve (NPT)
Product Description
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Technical data
Maximum working pressure:
360 psi
Medium temperature range:
-4 – 248 °F, 4-248 °F
Maximum percentage of glycol:
50 %
Medium:
water, glycol solutions
Material:
dezincification resistant brass DR
Download
Drawings and specifications
Part number | Connection | Flow rate working range | |
---|---|---|---|
145443A G90 | 1/2" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 1/2" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: -4 – 248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145443A 1G8 | 1/2" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 1/2" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145443A 3G5 | 0.08–0.40 m³/h | $$ data missing $$ | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
1/2" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145553A G90 | 3/4" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 3/4" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145553A 1G8 | 3/4" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 3/4" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145553A 3G5 | 3/4" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 3/4" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145553A 5G3 | 3/4" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 3/4" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145663A 7G9 | 1" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 1" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145663A 13G | 3/4" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 3/4" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
|||
145663A 16G | 1" FNPT union |
0.08–0.40 m³/h | |
3D models
Tender text
Pressure independent control valve (NPT)
Flow rate is adjusted in two different ways:
- Manually, on the automatic flow rate regulator (to restrict the maximum value);
- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Connection: 1" FNPT, union. Maximum working pressure: 360 psi. Medium temperature range: 4-248 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Flow rate working range: 0.08–0.40 m³/h. Material: dezincification resistant brass DR.
|
