HydroMixer™, Motorized temperature mixing unit (with insulation)
Product Description

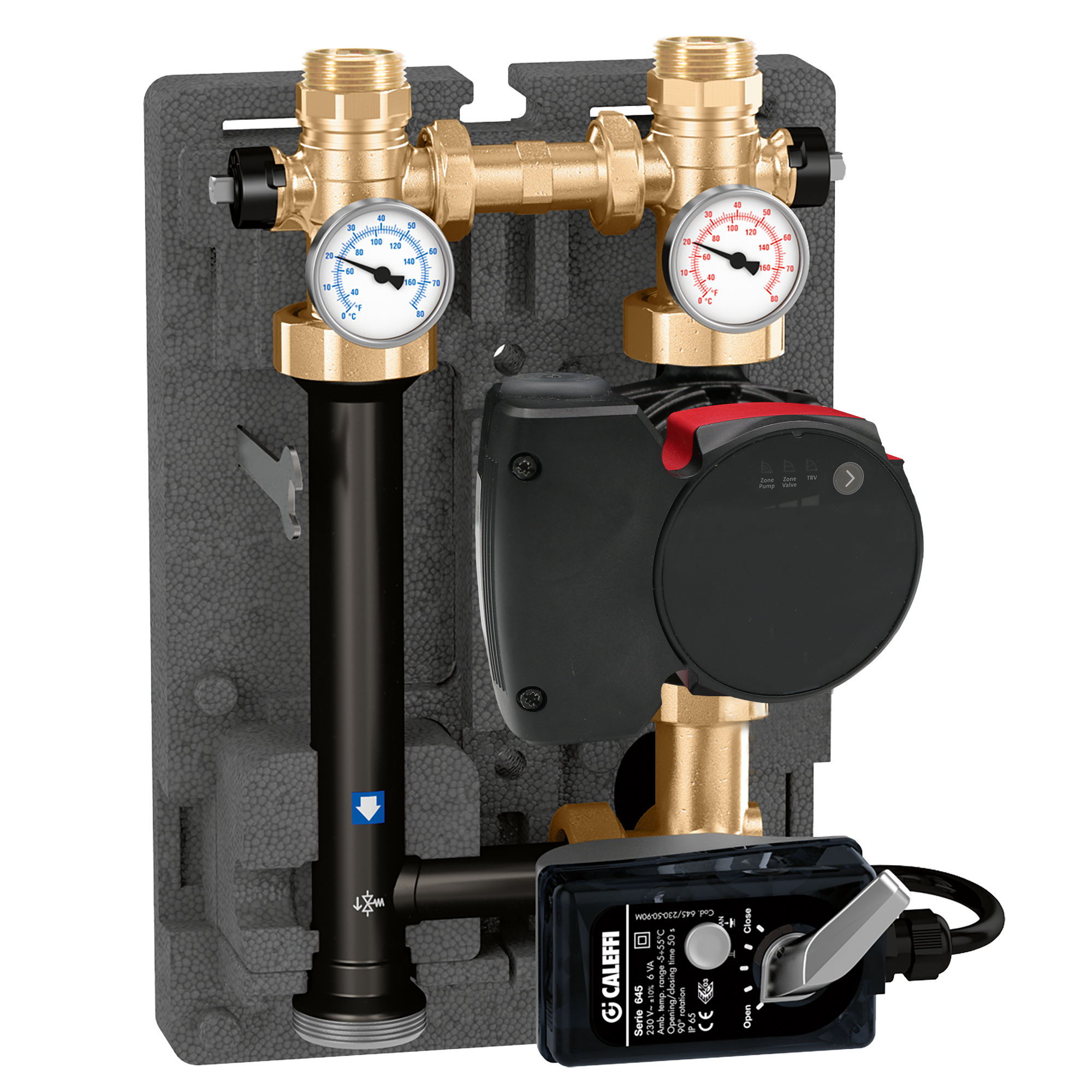

Motorized temperature mixing unit (with insulation)
Grundfos UPS 15-58 three speed pump, or Grundfos Alpha 25-55U pump.
Temperature gauges. Shut-off ball valves.
Compatible with 5599 Hydrolink series.
Three-point floating 24 VAC actuator for use with separately-sourced outdoor reset controller.
Technical data
Maximum operating pressure:
145 psi
Primary inlet working temperature range:
40–212 °F
Electric supply:
115 V (AC) (AC)
Download
pdf
Drawings and specifications
| Code | Note | ||
|---|---|---|---|
| 167600A | Dual line with 15-58 pump on right | ||
|
3D models
Tender text
Motorized temperature mixing unit (with insulation)
Grundfos UPS 15-58 three speed pump, or Grundfos Alpha 25-55U pump. Temperature gauges. Shut-off ball valves. Compatible with 5599 Hydrolink series. Three-point floating 24 VAC actuator for use with separately-sourced outdoor reset controller. Maximum operating pressure: 145 psi. Primary inlet working temperature range: 40–212 °F. Electric supply: 115 V (AC) (AC).
|
|||
| 167602A | Dual line with Alpha pump on right | ||
|
3D models
Tender text
Motorized temperature mixing unit (with insulation)
Grundfos UPS 15-58 three speed pump, or Grundfos Alpha 25-55U pump. Temperature gauges. Shut-off ball valves. Compatible with 5599 Hydrolink series. Three-point floating 24 VAC actuator for use with separately-sourced outdoor reset controller. Maximum operating pressure: 145 psi. Primary inlet working temperature range: 40–212 °F. Electric supply: 115 V (AC) (AC).
|
|||
| 167610A | Dual line with 15-58 pump on left | ||
|
3D models
Tender text
Motorized temperature mixing unit (with insulation)
Grundfos UPS 15-58 three speed pump, or Grundfos Alpha 25-55U pump. Temperature gauges. Shut-off ball valves. Compatible with 5599 Hydrolink series. Three-point floating 24 VAC actuator for use with separately-sourced outdoor reset controller. Maximum operating pressure: 145 psi. Primary inlet working temperature range: 40–212 °F. Electric supply: 115 V (AC) (AC).
|
|||
| 167612A | Dual line with Alpha pump on left | ||
|
3D models
Tender text
Motorized temperature mixing unit (with insulation)
Grundfos UPS 15-58 three speed pump, or Grundfos Alpha 25-55U pump. Temperature gauges. Shut-off ball valves. Compatible with 5599 Hydrolink series. Three-point floating 24 VAC actuator for use with separately-sourced outdoor reset controller. Maximum operating pressure: 145 psi. Primary inlet working temperature range: 40–212 °F. Electric supply: 115 V (AC) (AC).
|
|||
