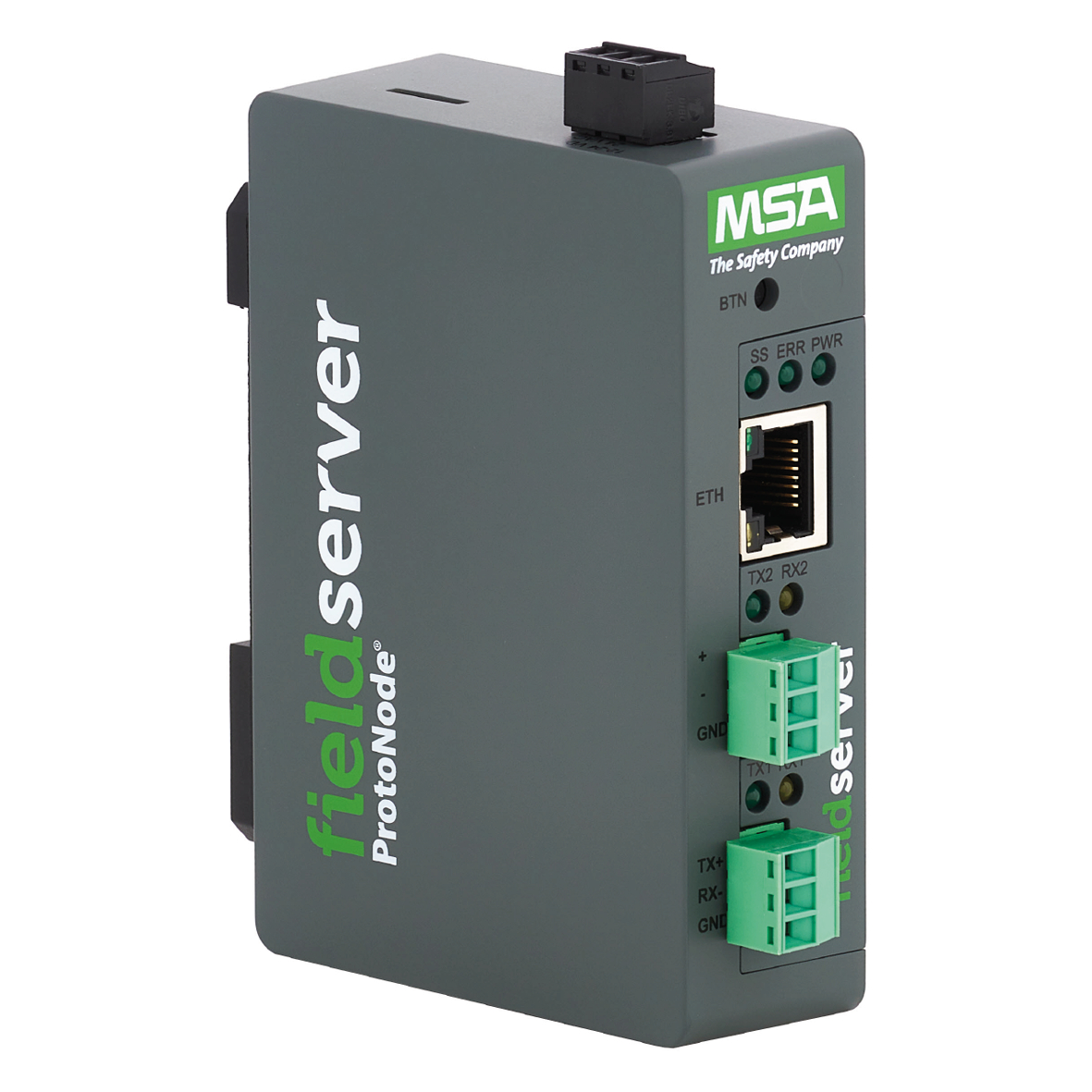

Series 7550

Modbus-to-BACnet gateway

Go to
Download high resolution

Product Description

Modbus-to-BACnet gateway
Certifications: CE, IEC, FCC, RHOS.

Technical data

Ambient temperature range: -20–70 °C
Electric supply: 12-24 V DC, 24 V AC
Power consumption at full capacity: 3 W

Note

To interface products with MODBUS-RTU transmission to supervisory systems with BACnet transmission.
Inputs/Outputs: Ethernet port 10/100 RS-485 port + / - / GND.
The converter is preconfigured for use with the following products:
- LEGIOMIX® 6000 series (for MODBUS-RTU version)
- LEGIOMIX® 2.0 6000 EST series
- CONTECA EASY 750. series.

Certifications

CE

Download

H0004703_NA.pdf pdf
Instruction sheet
Download
03532_NA.pdf pdf
Sell sheet
Download
Idronics_24_NA_Fundamentals of heat metering in hydronic systems.pdf pdf
Idronics
Idronics 24 - Fundamentals of heat metering in hyd...
Download
Idronics_22_NA_Safe and sanitary hot water delivery systems.pdf pdf
Idronics
idronics™ 22 - Safe and Sanitary Hot Water Deliv...
Download

Drawings and specifications

Part number Note
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Modbus-to-BACnet gateway Certifications: CE, IEC, FCC, RHOS. Ambient temperature range: -20–70 °C. Electric supply: 12-24 V DC, 24 V AC. Power consumption at full capacity: 3 W.
SCIP code
CODICE IN FASE DI ANALISI
