Series NA109

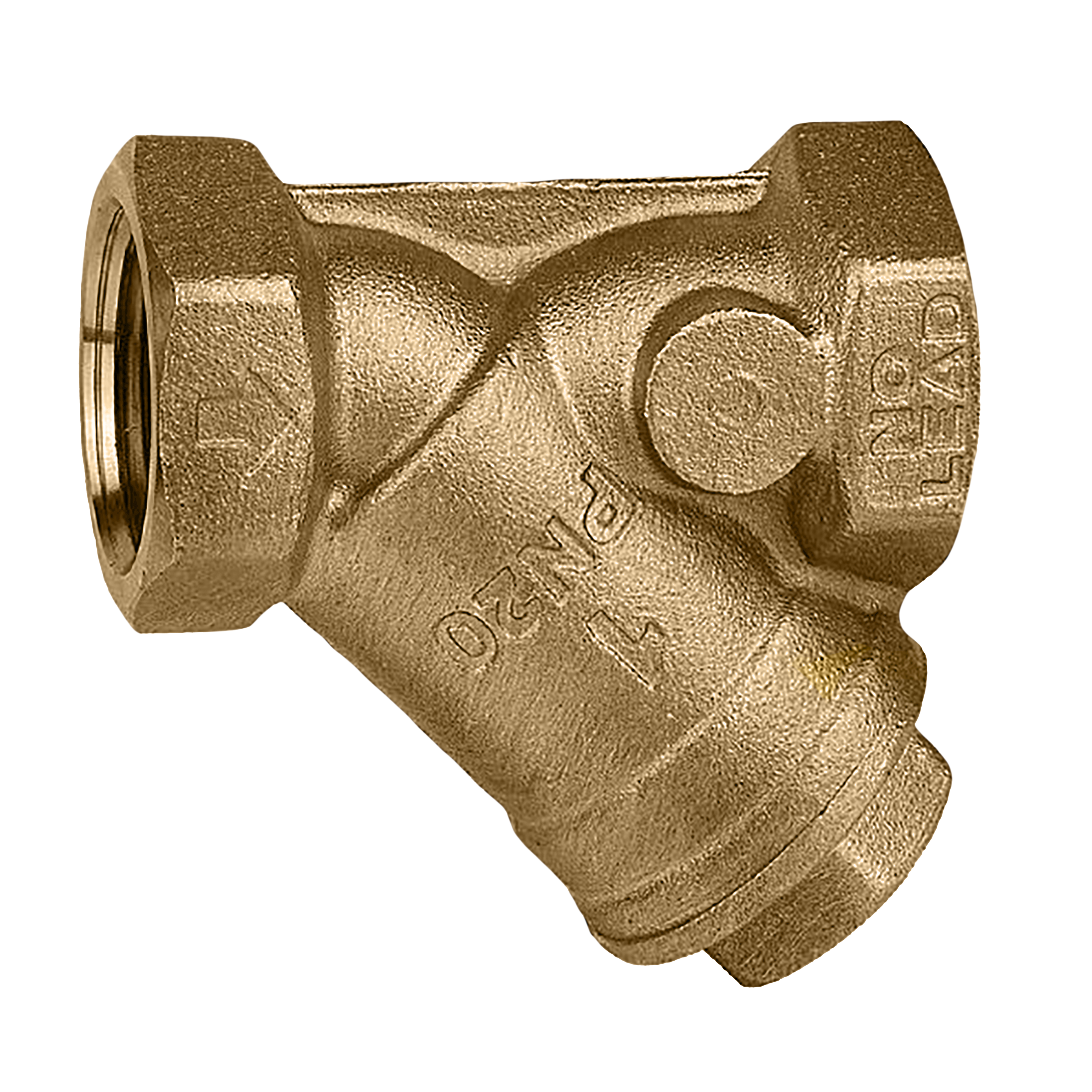

Low-lead brass y-strainer

Go to

Download high resolution

Product Description

Low-lead brass y-strainer
For use in plumbing and hydronics applications
Stainless steel strainer cartridge

Technical data

Maximum operating pressure: 360 psi

Medium temperature range: 14 – 285 °F

Maximum glycol %: 50 %

Medium: glycol solutions, domestic water

Material: DZR low lead brass

Note

*Meets the "lead free" requirement of Section 1417 of the Safe Drinking Water Act (SDWA). This product has a weighted average lead content of less than 0.25% for its wetted surfaces contacted with consumable water.

Certifications

Download

Drawings and specifications

Part number	Connection	Cv
NA10904	1/2" FNPT	4.0
3D models bim Tender text Low-lead brass y-strainer For use in plumbing and hydronics applications Stainless steel strainer cartridge connection: 1/2" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 14 – 285 °F. Maximum glycol %: 50 %. Medium: glycol solutions, domestic water. Cv: 4.0. Material: DZR low lead brass.
NA10905	3/4" FNPT	6.7
3D models bim Tender text Low-lead brass y-strainer For use in plumbing and hydronics applications Stainless steel strainer cartridge connection: 3/4" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 14 – 285 °F. Maximum glycol %: 50 %. Medium: glycol solutions, domestic water. Cv: 6.7. Material: DZR low lead brass.
NA10906	1" FNPT	10.6
3D models bim Tender text Low-lead brass y-strainer For use in plumbing and hydronics applications Stainless steel strainer cartridge connection: 1" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 14 – 285 °F. Maximum glycol %: 50 %. Medium: glycol solutions, domestic water. Cv: 10.6. Material: DZR low lead brass.
NA10907	1 1/4" FNPT	16.3
3D models bim Tender text Low-lead brass y-strainer For use in plumbing and hydronics applications Stainless steel strainer cartridge connection: 1 1/4" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 14 – 285 °F. Maximum glycol %: 50 %. Medium: glycol solutions, domestic water. Cv: 16.3. Material: DZR low lead brass.
NA10908	1 1/2" FNPT	23.6
3D models bim Tender text Low-lead brass y-strainer For use in plumbing and hydronics applications Stainless steel strainer cartridge connection: 1 1/2" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 14 – 285 °F. Maximum glycol %: 50 %. Medium: glycol solutions, domestic water. Cv: 23.6. Material: DZR low lead brass.
NA10909	2" FNPT	39.4
3D models bim Tender text Low-lead brass y-strainer For use in plumbing and hydronics applications Stainless steel strainer cartridge connection: 2" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 14 – 285 °F. Maximum glycol %: 50 %. Medium: glycol solutions, domestic water. Cv: 39.4. Material: DZR low lead brass.
