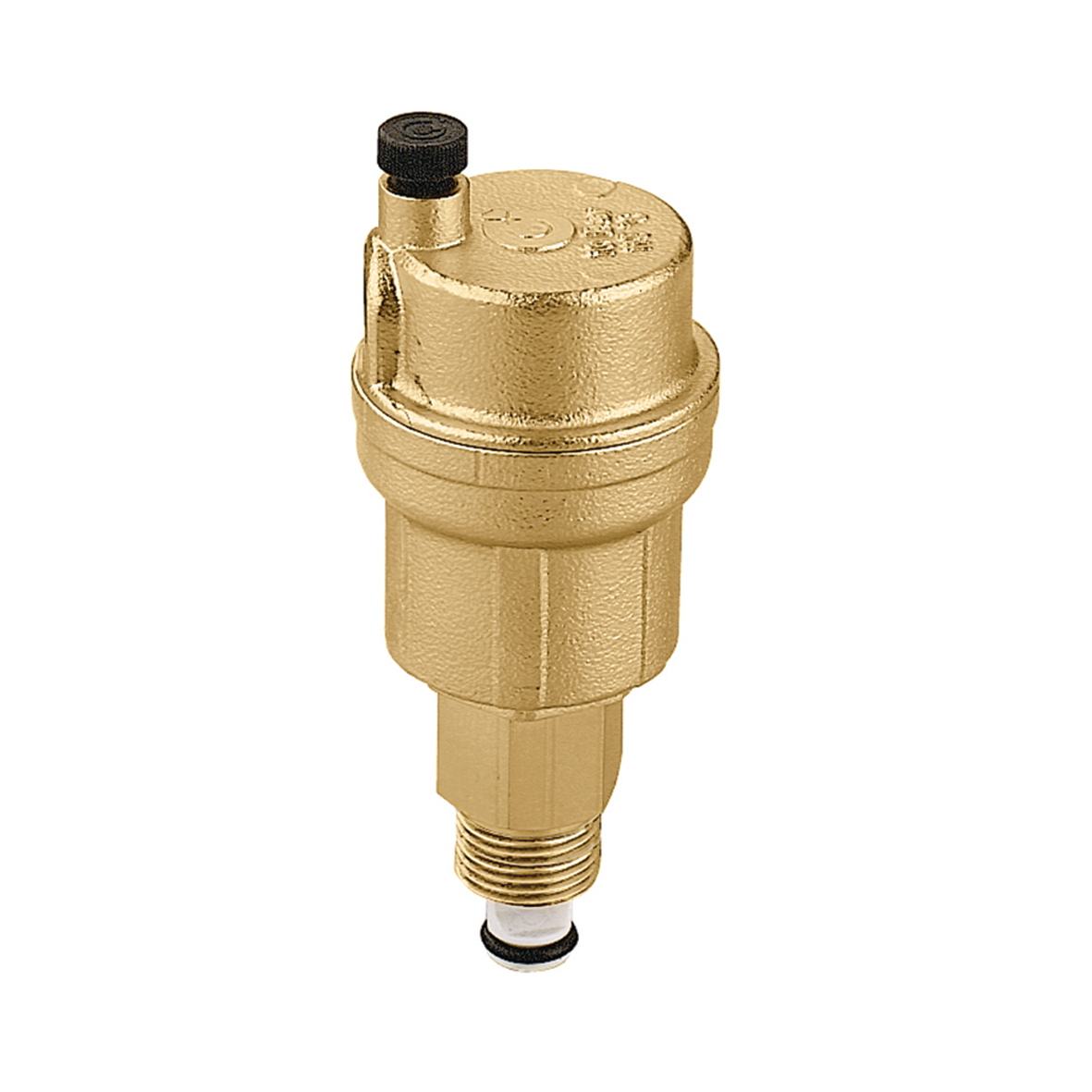

ROBOCAL™, Automatic air vent with service check valve
Product Description
Automatic air vent with service check valve
Technical data
Maximum operating pressure:
150 psi
Maximum air discharge pressure:
90 psi
Medium temperature range:
32 – 230 °F
Maximum discharge rate:
1.75 SCFM
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 502710A | 1/8" MNPT |
||
|
3D models
Tender text
Automatic air vent with service check valve
connection: 1/8" MNPT. Maximum operating pressure: 150 psi. Maximum air discharge pressure: 90 psi. Medium temperature range: 32 – 230 °F. Maximum discharge rate: 1.75 SCFM. Material: brass.
SCIP code
d7192d51-bd43-46c7-85f9-8ff04bd7f688
|
|||
| 502720A | 1/4" MNPT |
||
|
3D models
Tender text
Automatic air vent with service check valve
connection: 1/4" MNPT. Maximum operating pressure: 150 psi. Maximum air discharge pressure: 90 psi. Medium temperature range: 32 – 230 °F. Maximum discharge rate: 1.75 SCFM. Material: brass.
SCIP code
66112de2-2deb-40d0-9dfb-c3eae7ff1a82
|
|||
