MINICAL™, Automatic air vent with service check valve
Product Description

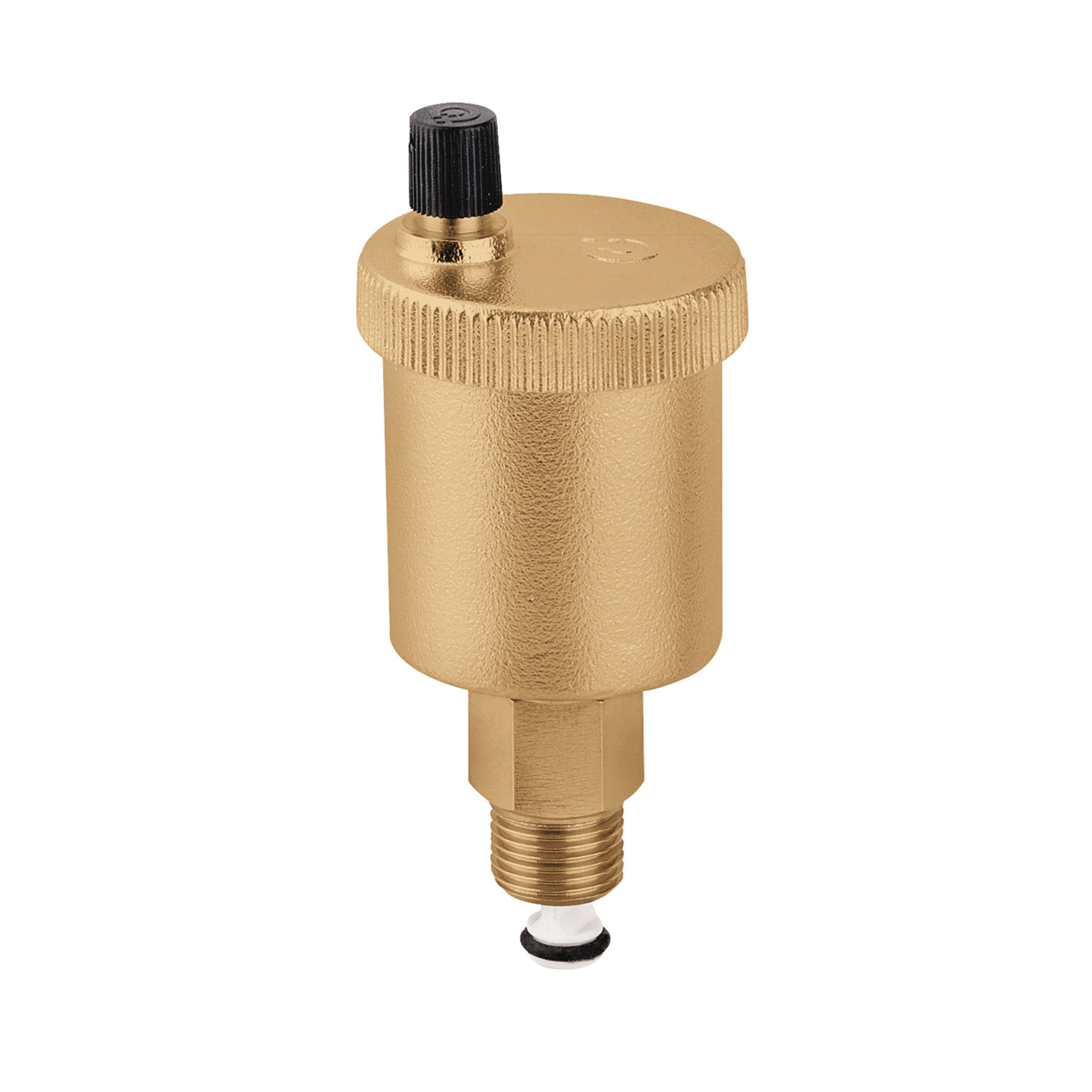

Automatic air vent with service check valve
Technical data
Maximum working pressure:
150 psi
Maximum air discharge pressure:
32 psi
Medium temperature range:
32–250 °F
Maximum discharge rate:
1.75 SCFM
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 502115A | 1/8" MNPT |
- | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic air vent with service check valve
connection: 1/8" MNPT. Maximum working pressure: 150 psi. Maximum air discharge pressure: 32 psi. Medium temperature range: 32–250 °F. Maximum discharge rate: 1.75 SCFM. Material: brass.
|
|||
| 502113A | 1/8" MNPT |
Hygroscopic anti-drip cap | |
|
3D models
Tender text
Automatic air vent with service check valve
connection: 1/8" MNPT. Maximum working pressure: 150 psi. Maximum air discharge pressure: 32 psi. Medium temperature range: 32–250 °F. Maximum discharge rate: 1.75 SCFM.
|
|||
igs
stp
bim
DWS
