Series 5020

MINICAL®, Automatic air vent

Go to

Download high resolution

Product Description

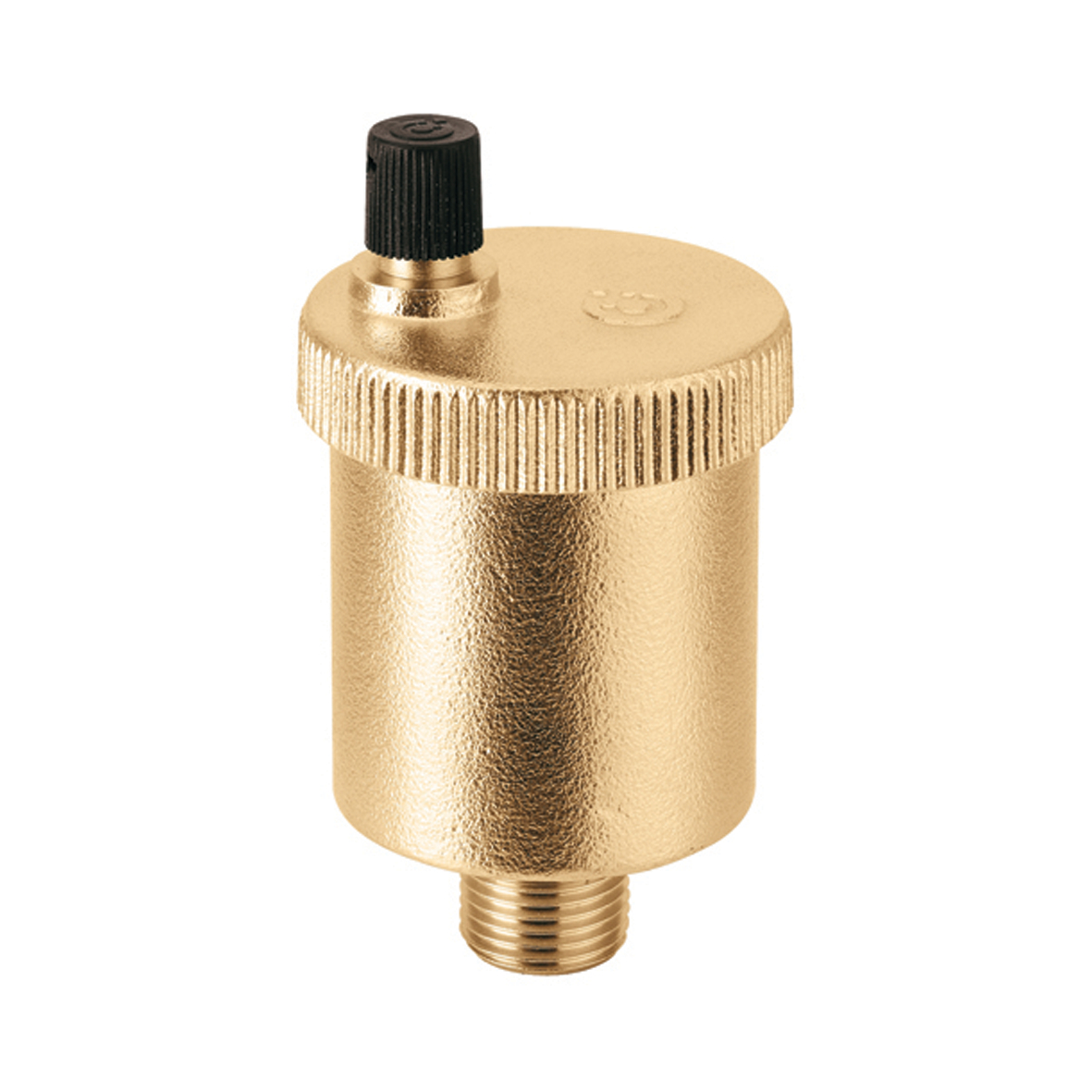

Automatic air vent

Technical data

Maximum operating pressure: 150 psi

Maximum air discharge pressure: 40 psi

Medium temperature range: 32 – 250 °F

Maximum discharge rate: 1.75 SCFM

Material: brass

Download

Drawings and specifications

Part number	Connection
502015A	1/8" MNPT
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/502015A%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/502015A%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/502015A%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/502015A%20%28stp%29.stp bim Tender text Automatic air vent connection: 1/8" MNPT. Maximum operating pressure: 150 psi. Maximum air discharge pressure: 40 psi. Medium temperature range: 32 – 250 °F. Maximum discharge rate: 1.75 SCFM. Material: brass. SCIP code d02ad069-ca1b-4a8b-8ffc-a2af3ee6632f
502040A	1/2" MNPT
