TubMixer™, Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Product Description
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
Technical data
Material:
DZR low lead brass
Flow rate working range:
0.5 – 9 gpm
Maximum inlet temperature:
185 °F
Adjustment temperature range:
85 – 120 °F
Maximum operating pressure:
150 psi
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 521333A | 3/8" compression union |
2 | |
|
3D models
Tender text
CALEFFI, 521333A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 3/8" compression, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521342A | 1/2" NPT male union |
2 | |
|
3D models
Tender text
CALEFFI, 521342A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (NPT)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" MNPT, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
SCIP code
84860a16-4cdc-47ef-9f01-bc98d4d92c95
|
|||
| 521346A | 1/2" Press union |
2 | |
|
3D models
Tender text
CALEFFI, 521346A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1/2" Press, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521347A | 1/2" PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521347A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" Press, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521348A | 1/2" PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521348A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1/2" PEX expansion, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521349A | 1/2" sweat union |
2 | |
|
3D models
Tender text
CALEFFI, 521349A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1/2" sweat, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521352A | 3/4" NPT male union |
2 | |
|
3D models
Tender text
CALEFFI, 521352A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 3/4" NPT male, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521356A | 3/4" Press union |
2 | |
|
3D models
Tender text
CALEFFI, 521356A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 3/4" Press, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||

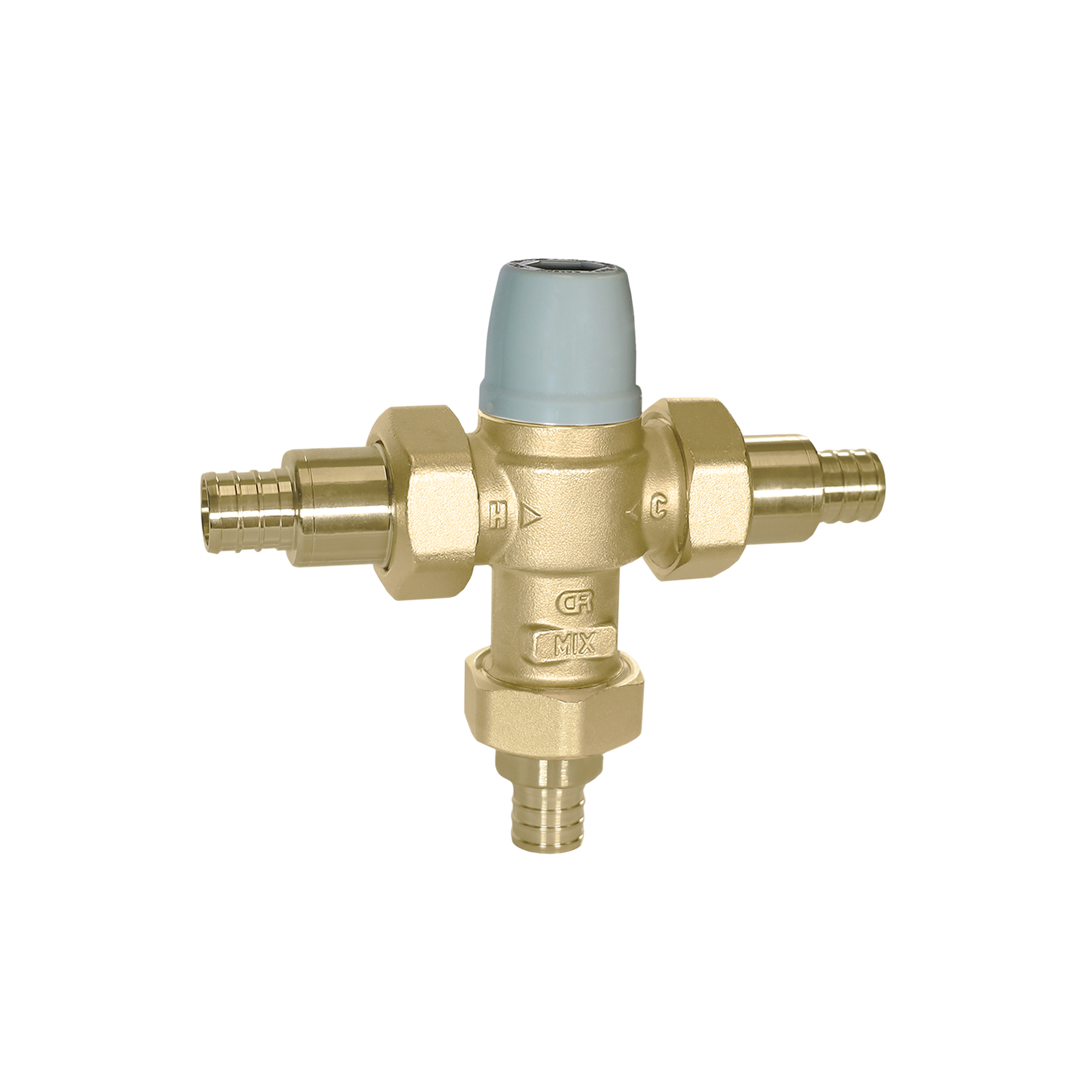

| 521357A | 3/4" PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521357A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 3/4" PEX crimp, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521358A | 3/4" PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521358A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 3/4" PEX expansion, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521359A | 3/4" sweat union |
2 | |
|
3D models
Tender text
CALEFFI, 521359A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 3/4" sweat, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521362A | 1" NPT male union |
2 | |
|
3D models
Tender text
CALEFFI, 521362A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1" NPT male, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521366A | 1" Press union |
2 | |
|
3D models
Tender text
CALEFFI, 521366A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1" Press, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521367A | 1" PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521367A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1" Press, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521368A | 1" PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521368A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1" PEX expansion, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521369A | 1" sweat union |
2 | |
|
3D models
Tender text
CALEFFI, 521369A, TubMixer™.
Adjustable thermostatic mixing valve for high flow point-of-use scald protection
Locking set point knob
Complete with inlet check valves
connection: 1" sweat, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521301A | - no tailpiece |
2 | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 521301A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (sweat)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: -. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
SCIP code
dbc59c81-d043-43c7-8774-9d515e952fbe
|
|||
bim
igs
stp
