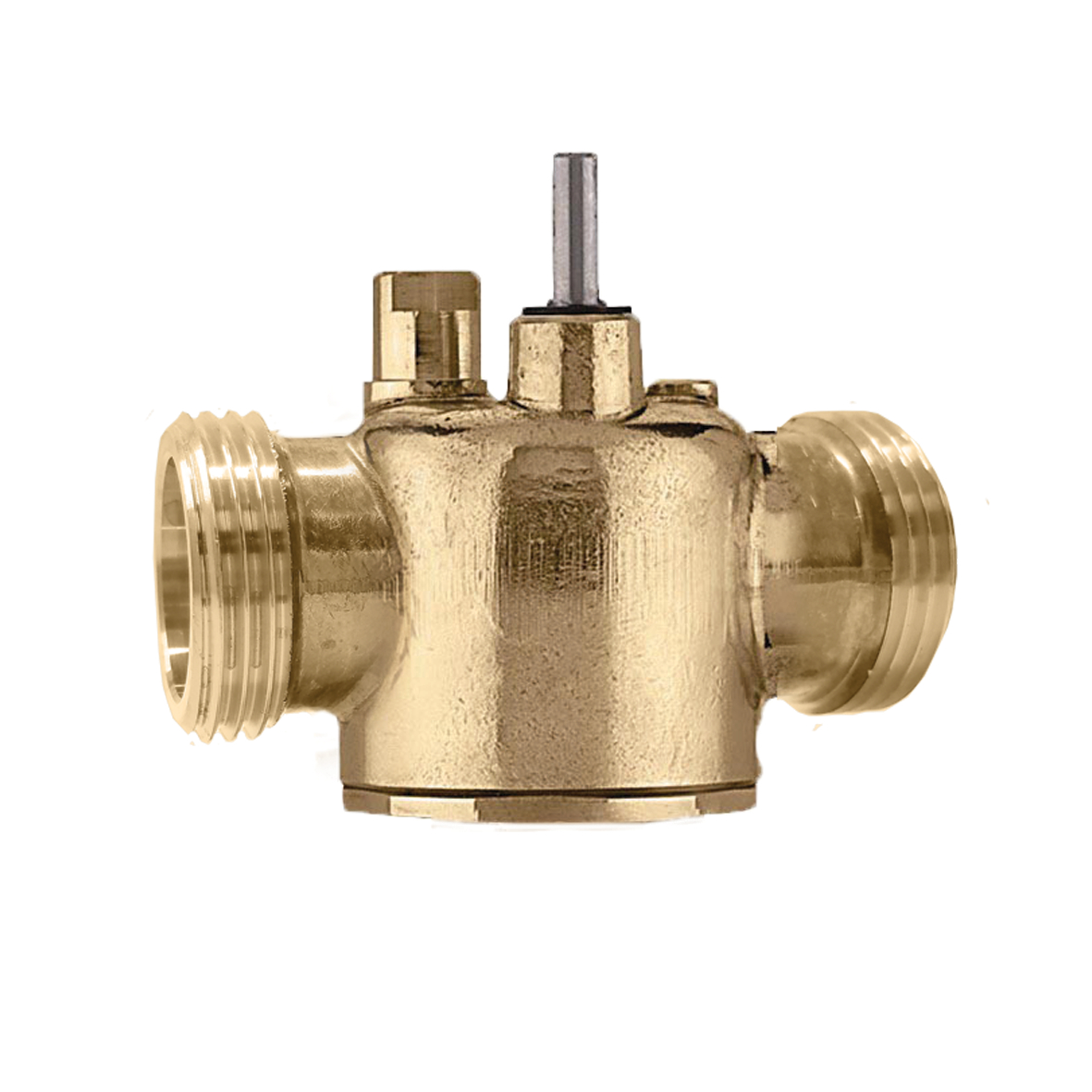

Z2 2-way straight valve body for motorized zone valves (male union)
Product Description
Z2 2-way straight valve body for motorized zone valves (male union)
2-way male union valve body.
Select fittings in Section 8 Table.
pdf
Drawings and specifications
| Part number | Connection | △p max. | Cv |
|---|---|---|---|
| Z200683 | G 1" A (ISO 228-1) M union |
30 psi | 3.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z2 2-way straight valve body for motorized zone valves (male union)
2-way male union valve body.
Select fittings in Section 8 Table. connection: G 1" A (ISO 228-1) M, union. △p max.: 30 psi. Cv: 3.5 gpm.
|
|||
| Z200687 | G 1" A (ISO 228-1) M union |
20 psi | 7.5 gpm |
|
3D models
Tender text
Z2 2-way straight valve body for motorized zone valves (male union)
2-way male union valve body.
Select fittings in Section 8 Table. connection: G 1" A (ISO 228-1) M, union. △p max.: 20 psi. Cv: 7.5 gpm.
|
|||
stp
igs
bim
