Series KIT536

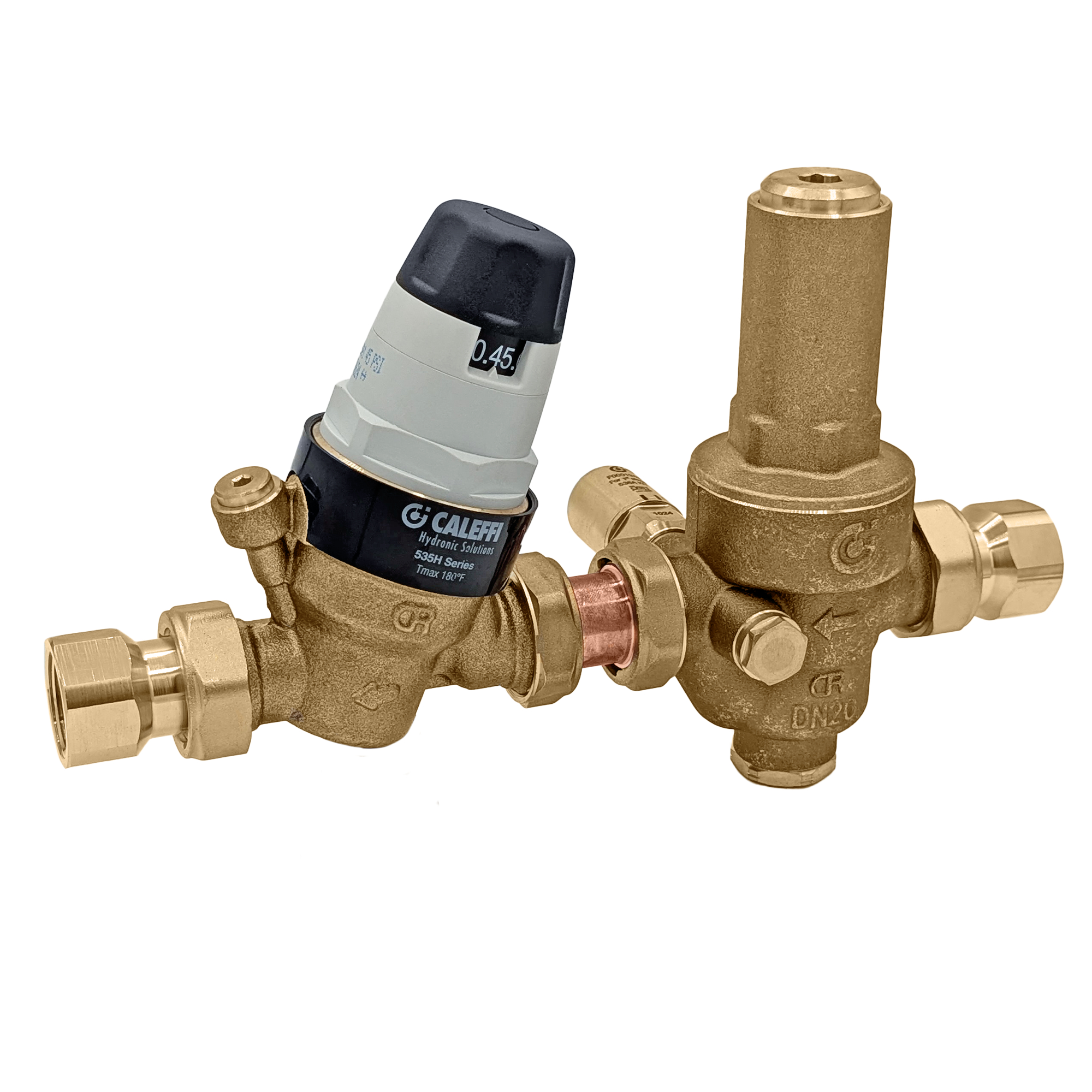

Two stage pressure reducing valve kit (union)

Download high resolution

Product Description

Two stage pressure reducing valve kit (union)
Complete with:

536 PresCal HP
535 PresCal
Low lead/Lead Free Coupler
Expansion Relief Accessory

1st Stage Adjustement Range: 90 – 150 psi
2nd Stage Adjustment Range: 15 – 90 psi

Technical data

Maximum operating pressure: 360 psi

Maximum working temperature: 180 °F

Certifications

Download

Drawings and specifications

Part number	Connection	Note
KIT536535A 053	3/4" FNPT union	No gauge
3D models bim Tender text Two stage pressure reducing valve kit (union) Complete with: 536 PresCal HP 535 PresCal Low lead/Lead Free Coupler Expansion Relief Accessory 1st Stage Adjustement Range: 90 – 150 psi 2nd Stage Adjustment Range: 15 – 90 psi connection: 3/4" FNPT, union. Maximum operating pressure: 360 psi. Maximum working temperature: 180 °F.
KIT536535A 056	3/4" press union	No gauge
3D models bim Tender text Two stage pressure reducing valve kit (union) Complete with: 536 PresCal HP 535 PresCal Low lead/Lead Free Coupler Expansion Relief Accessory 1st Stage Adjustement Range: 90–150 psi 2nd Stage Adjustment Range: 15–90 psi connection: 3/4", press union. Maximum operating pressure: 360 psi. Maximum working temperature: 180 °F.
KIT536535A 059	3/4" sweat union	No gauge
3D models bim Tender text connection: 3/4", sweat union.
KIT536535A 063	1" FNPT union	No gauge
3D models bim Tender text Two stage pressure reducing valve kit (union) Complete with: 536 PresCal HP 535 PresCal Low lead/Lead Free Coupler Expansion Relief Accessory 1st Stage Adjustement Range: 90 – 150 psi 2nd Stage Adjustment Range: 15 – 90 psi connection: 1" FNPT, union. Maximum operating pressure: 360 psi. Maximum working temperature: 180 °F.
KIT536535A 066	1" press union	No gauge
3D models bim Tender text Two stage pressure reducing valve kit (union) Complete with: 536 PresCal HP 535 PresCal Low lead/Lead Free Coupler Expansion Relief Accessory 1st Stage Adjustement Range: 90 – 150 psi 2nd Stage Adjustment Range: 15 – 90 psi connection: 1", press union. Maximum operating pressure: 360 psi. Maximum working temperature: 180 °F.
KIT536535A 069	1" sweat union	No gauge
3D models bim Tender text connection: 1", sweat union.
