LEGIOMIX®evo Station, Pre-assembled digital mixing valve station

Go to
Download high resolution

Product Description

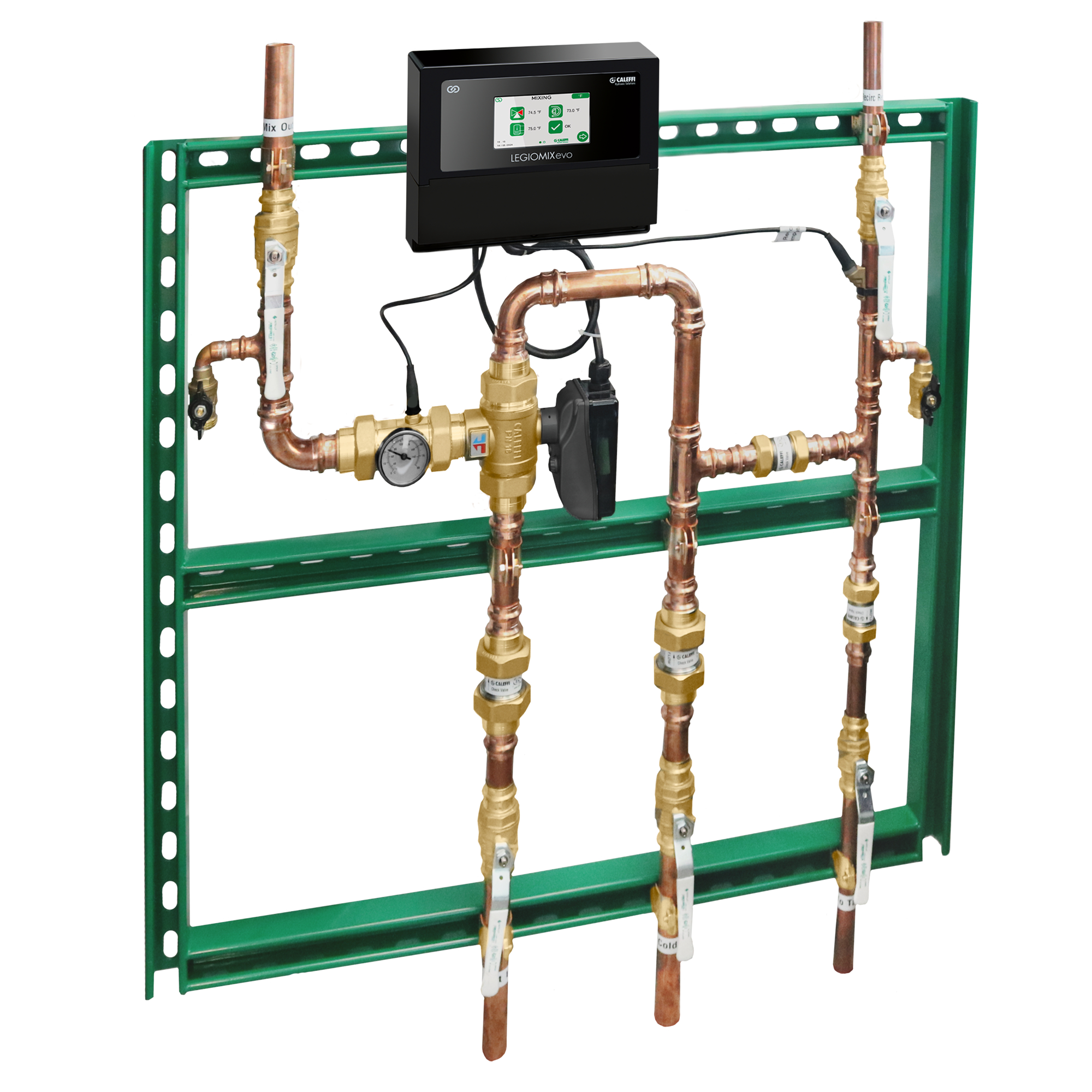

Pre-assembled digital mixing valve station
Mixing valve, controller and associated piping mounted to strut frame

Connection Options:

  • Outlet sizes: 1" - 3"
  • Type: Copper type L pipe


Complete with:

  • Inlet, outlet and recirculation connections
  • Serviceable check valves and isolation valves
  • Self-cleaning 3-way ball valve body and fittings
  • Fail-safe actuator: 0 - 10V control signal
  • LEGIOMIX®evo digital controller and sensor probes
  • 50VA Transformer


Optional:

  • Recirculation pump

Technical data

Maximum operating pressure: 150 psi
Maximum dynamic operating pressure: 70 psi
Electric supply: 24 V AC/DC
Adjustment temperature range: 70 – 185 °F

Download

pdf
Instruction sheet
Download

Drawings and specifications

Part number Connection Recirculation Connections Inlet Connection Note
600366AFS 1"
copper pipe		 3/4"
copper pipe		 - $$ data missing $$
Cv
8.4
3D models
Tender text
CALEFFI, 600366AFS, LEGIOMIX®evo Station.
600376AFS 1 1/4"
copper pipe		 1"
copper pipe		 - $$ data missing $$
Cv
9.1
3D models
Tender text
CALEFFI, 600376AFS, LEGIOMIX®evo Station.
600386AFS 1 1/2"
copper pipe		 1 1/4"
copper pipe		 - $$ data missing $$
Cv
21
3D models
Tender text
CALEFFI, 600386AFS, LEGIOMIX®evo Station.
600396AFS 2"
copper pipe		 1 1/2"
copper pipe		 - $$ data missing $$
Cv
38
3D models
Tender text
CALEFFI, 600396AFS, LEGIOMIX®evo Station.
600360AFS 2 1/2"
copper pipe		 1 1/2"
copper pipe		 - $$ data missing $$
Cv
43
3D models
Tender text
CALEFFI, 600360AFS, LEGIOMIX®evo Station.
600380AFS 3"
copper pipe		 2"
copper pipe		 - $$ data missing $$
Cv
46
3D models
600366AFS 001 1"
copper pipe		 1"
copper pipe		 1"
copper pipe		 $$ data missing $$
Note
Recirc. Pump
Cv
8.4
3D models
600376AFS 001 1 1/4"
copper pipe		 1"
copper pipe		 Recirc. Pump $$ data missing $$
Cv
9.1
3D models
600386AFS 001 1 1/2"
copper pipe		 1 1/4"
copper pipe		 Recirc. Pump $$ data missing $$
Cv
21
3D models
600396AFS 001 2"
copper pipe		 1 1/2"
copper pipe		 Recirc. Pump $$ data missing $$
Cv
38
3D models
600360AFS 001 2 1/2"
copper pipe		 1 1/2"
copper pipe		 Recirc. Pump $$ data missing $$
Cv
43
3D models
600380AFS 001 3"
copper pipe		 2"
copper pipe		 Recirc. Pump $$ data missing $$
Cv
46
3D models
