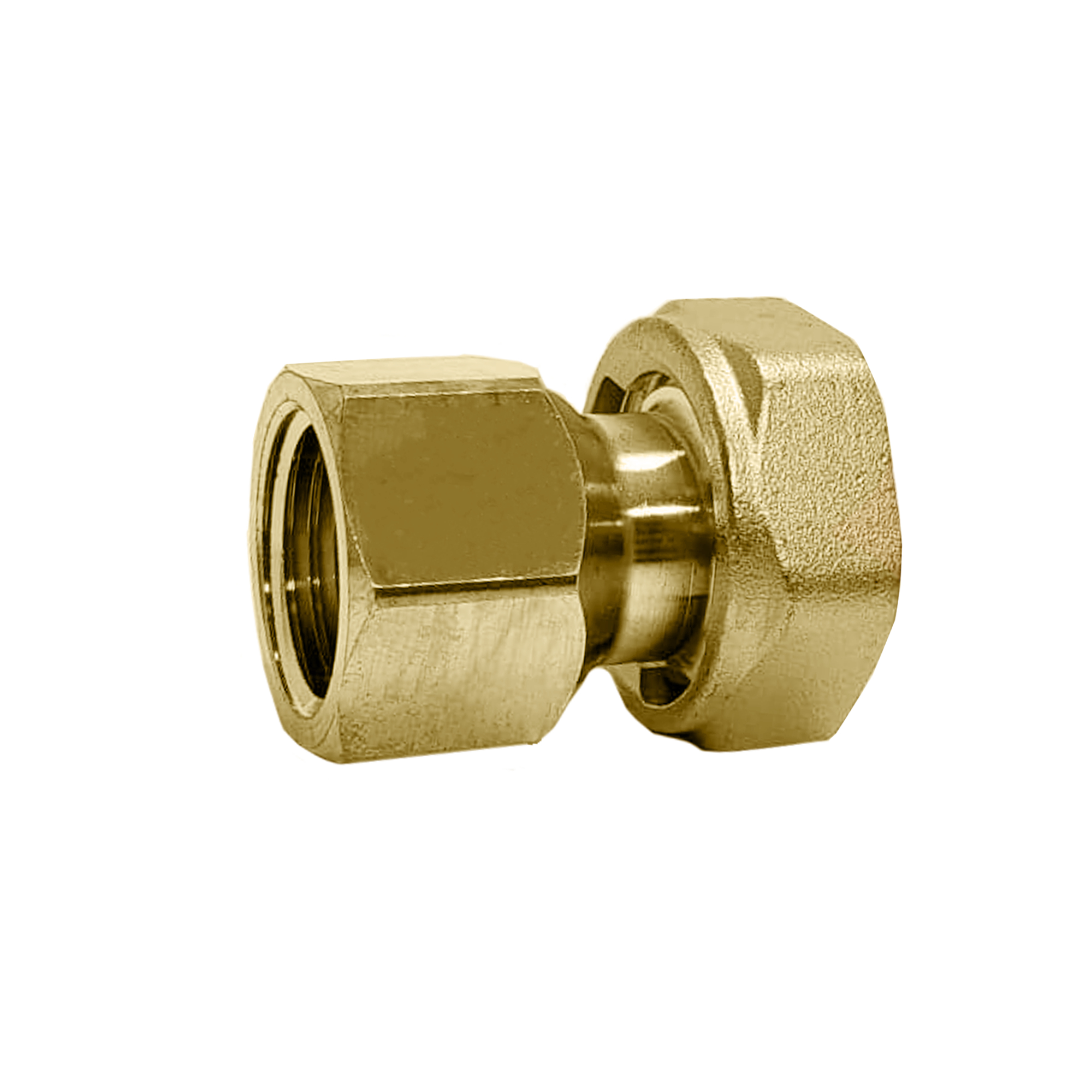

NPT female tailpieces with union nut and washer

NPT female tailpieces with union nut and washer
Download high resolution

Product Description

NPT female tailpieces with union nut and washer

Technical data

Auxiliary microswitch: NO
Battery included: NO
Electrical Components: No
Insulation: No

Drawings and specifications

Part number Connection Note Actions
F49644 1/2" NPT female
tailpiece
With 3/4" union nut
2D drawings
3D models
Tender text
CALEFFI, F49644. NPT female tailpieces with union nut and washer Connection: 1/2" NPT female, tailpiece.
SCIP code
5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
F49645 3/4" NPT female
tailpiece
With 1" union nut
3D models
Tender text
CALEFFI, F49645. NPT female tailpieces with union nut and washer Connection: 3/4" NPT female, tailpiece.
SCIP code
5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
F49646 1" NPT female
tailpiece
With 1 1/4" union nu
3D models
Tender text
CALEFFI, F49646. NPT female tailpieces with union nut and washer Connection: 1" NPT female, tailpiece.
SCIP code
5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
F49647 1 1/4" NPT female
tailpiece
With 1 1/2" union nut
3D models
Tender text
CALEFFI, F49647. NPT female tailpieces with union nut and washer Connection: 1 1/4" NPT female, tailpiece.
SCIP code
5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
F0000493 1 1/2" NPT female
tailpiece
With 2" union nut
3D models
Tender text
CALEFFI, F0000493. NPT female tailpieces with union nut and washer Connection: 1 1/2" NPT female, tailpiece.
SCIP code
5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
F0000495 2" NPT female
tailpiece
With 2 1/2" union nut
3D models
Tender text
CALEFFI, F0000495. NPT female tailpieces with union nut and washer Connection: 2" NPT female, tailpiece.
SCIP code
5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
