Z-one™ , Multi-zone pump and boiler operating control
Product Description
Multi-zone pump and boiler operating control
Replaceable fuses: Type 2AG, 5A slow blow.
Transformer voltage: 24 VAC
Maximum transformer load: 12 VA
Electrical switch rating: 10A
Electrical switch rating pump output: 120 VAC, 5A each
Interfaces with low voltage thermostats or any other low voltage controllers having a switching action.
The ZSR series controls up to 3, 4, 5 or 6 heating circulator pumps, depending on model selected, a primary pump, and has LED indicators to provide functional status and easy system troubleshooting. In addition, a primary pump system circulator is switched on whenever any zone calls for heat.
Technical data
Electric supply:
120 V (AC)
pdf
Drawings and specifications
| Code | Note | ||
|---|---|---|---|

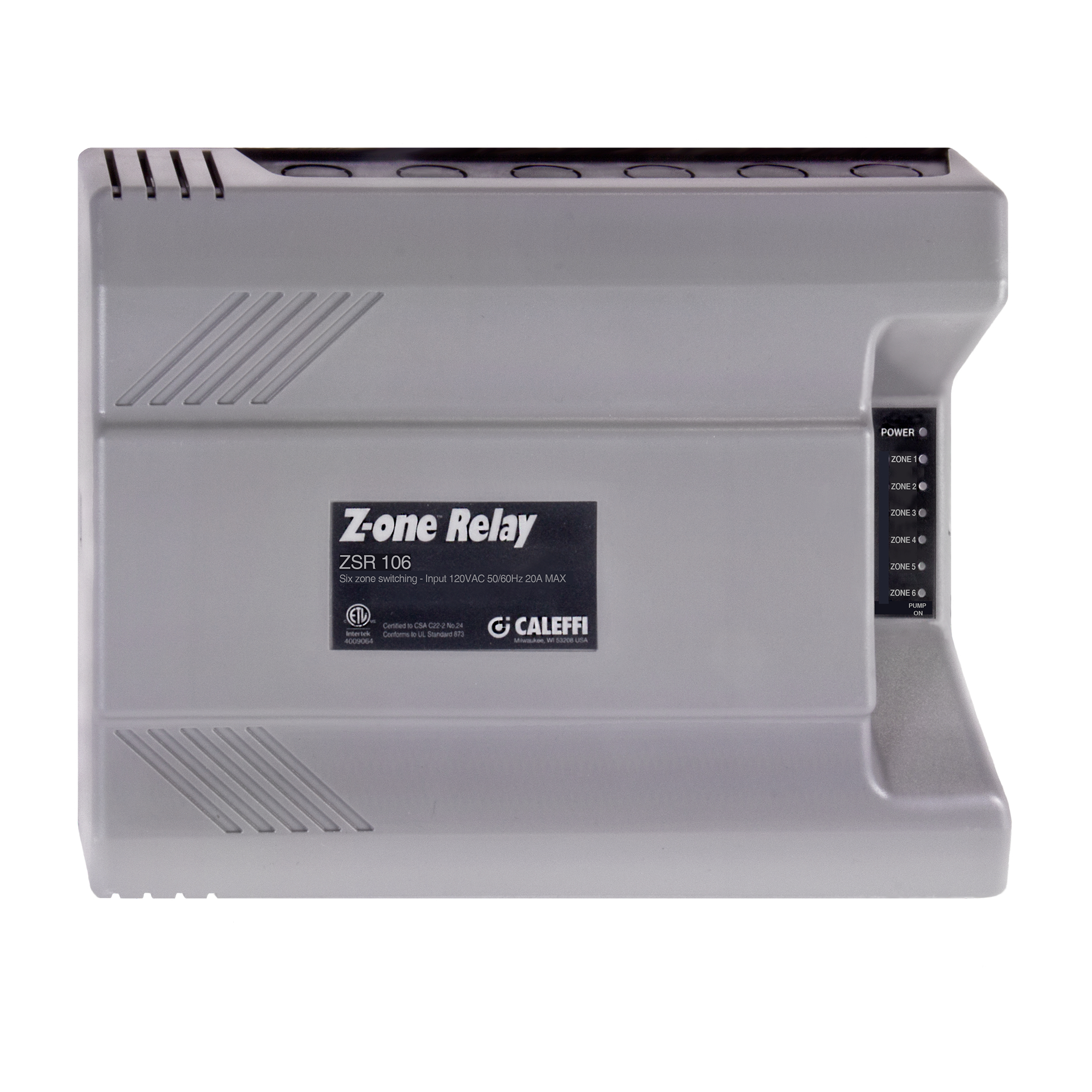

| ZSR106 | 6 zone pump control | ||
|
3D models
Tender text
Multi-zone pump and boiler operating control
Replaceable fuses: Type 2AG, 5A slow blow.
Transformer voltage: 24 VAC
Maximum transformer load: 12 VA
Electrical switch rating: 10A
Electrical switch rating pump output: 120 VAC, 5A each
Interfaces with low voltage thermostats or any other low voltage controllers having a switching action. The ZSR series controls up to 3, 4, 5 or 6 heating circulator pumps, depending on model selected, a primary pump, and has LED indicators to provide functional status and easy system troubleshooting. In addition, a primary pump system circulator is switched on whenever any zone calls for heat. Electric supply: 120 V (AC).
|
|||
| ZSR103 | 3 zone pump control | ||
|
3D models
Tender text
Multi-zone pump and boiler operating control
Replaceable fuses: Type 2AG, 5A slow blow.
Transformer voltage: 24 VAC
Maximum transformer load: 12 VA
Electrical switch rating: 10A
Electrical switch rating pump output: 120 VAC, 5A each
Interfaces with low voltage thermostats or any other low voltage controllers having a switching action. The ZSR series controls up to 3, 4, 5 or 6 heating circulator pumps, depending on model selected, a primary pump, and has LED indicators to provide functional status and easy system troubleshooting. In addition, a primary pump system circulator is switched on whenever any zone calls for heat. Electric supply: 120 V (AC).
|
|||
| ZSR104 | 4 zone pump control | ||
|
3D models
Tender text
Multi-zone pump and boiler operating control
Replaceable fuses: Type 2AG, 5A slow blow.
Transformer voltage: 24 VAC
Maximum transformer load: 12 VA
Electrical switch rating: 10A
Electrical switch rating pump output: 120 VAC, 5A each
Interfaces with low voltage thermostats or any other low voltage controllers having a switching action. The ZSR series controls up to 3, 4, 5 or 6 heating circulator pumps, depending on model selected, a primary pump, and has LED indicators to provide functional status and easy system troubleshooting. In addition, a primary pump system circulator is switched on whenever any zone calls for heat. Electric supply: 120 V (AC).
|
|||
