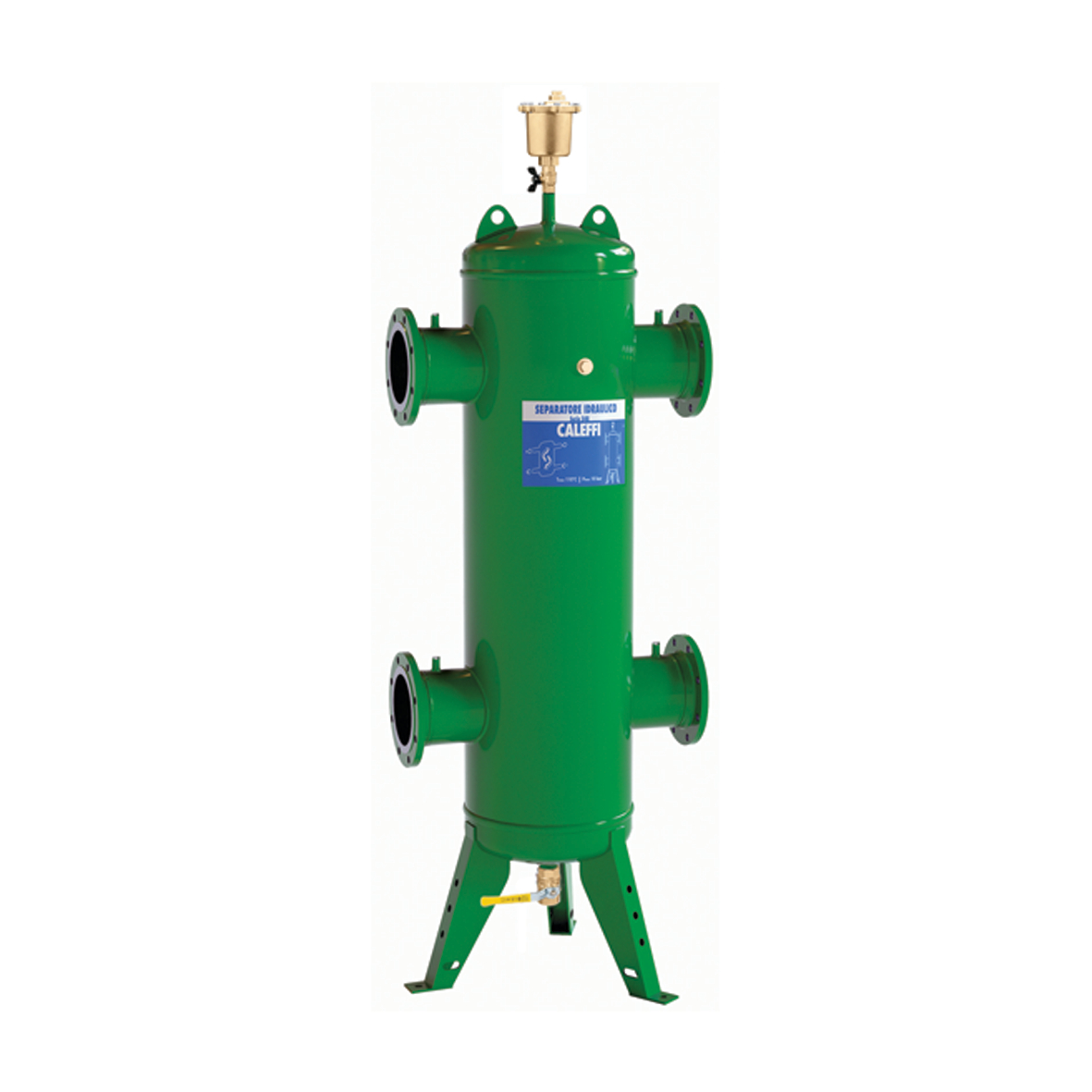

Hydro Separator (ANSI flange ASME, 8-14")
Product Description
Hydro Separator (ANSI flange ASME, 8-14")
Complete with:
- automatic air vent (code 501502A)
- shut-off valve (code NA39589)
- drain valve (code NA39588)
Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center.
ASME U-stamp tagged and registered withthe National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12".
Consult factory for 14".
Baffle plates for all sizes: 304SST.
Technical data
Maximum working pressure:
150 psi
Medium temperature range:
32–270 °F, 32–212 °F
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| NA548200A | 8'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME, 8-14")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. ASME U-stamp tagged and registered withthe National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12". Consult factory for 14". Baffle plates for all sizes: 304SST. connection: 8'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–270 °F.
|
|||
| NA548250A | 10'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME, 8-14")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. ASME U-stamp tagged and registered withthe National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12". Consult factory for 14". Baffle plates for all sizes: 304SST. connection: 10'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–212 °F.
|
|||
| NA548300A | 12'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME, 8-14")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. ASME U-stamp tagged and registered withthe National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12". Consult factory for 14". Baffle plates for all sizes: 304SST. connection: 12'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–212 °F.
|
|||
| NA548350A | 14'' ANSI 150 flange ASME |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME, 8-14")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. ASME U-stamp tagged and registered withthe National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12". Consult factory for 14". Baffle plates for all sizes: 304SST. connection: 14'' ANSI 150 flange, ASME. Maximum working pressure: 150 psi. Medium temperature range: 32–212 °F.
|
|||
