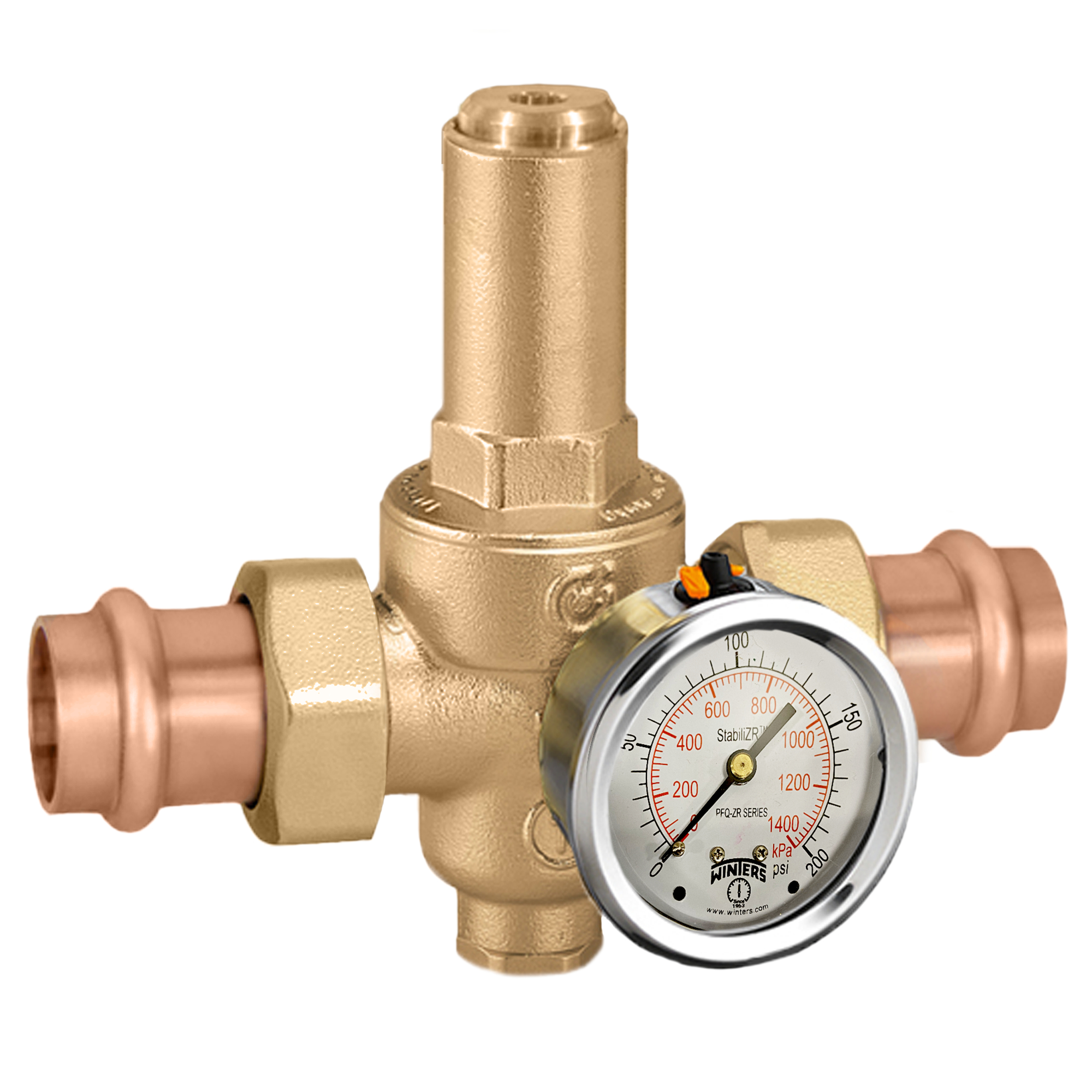

PresCal™ HP, High flow pressure reducing valve (press, high range)
Product Description
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Technical data
Adjustment pressure range:
90 – 150 psi
Maximum working temperature:
180 °F
Maximum operating pressure:
360 psi
Certifications
pdf
Drawings and specifications
| Part number | Connection | Actions | |
|---|---|---|---|
| 536043A 106 | 1/2" Press union |
||
|
3D models
Tender text
CALEFFI, 536043A 106, PresCal™ HP.
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. connection: 1/2" Press, press union. Adjustment pressure range: 90 – 150 psi. Maximum working temperature: 180 °F. Pressure gauge scale: 0 – 200 psi. Material: DZR low lead brass.
|
|||
| 536053A 106 | 3/4" Press union |
||
|
3D models
Tender text
CALEFFI, 536053A 106, PresCal™ HP.
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. connection: 3/4" Press, press union. Adjustment pressure range: 90 – 150 psi. Maximum working temperature: 180 °F. Pressure gauge scale: 0 – 200 psi. Material: DZR low lead brass.
|
|||
| 536063A 106 | 1" Press union |
||
|
3D models
Tender text
CALEFFI, 536063A 106, PresCal™ HP.
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. connection: 1" Press, press union. Adjustment pressure range: 90 – 150 psi. Maximum working temperature: 180 °F. Pressure gauge scale: 0 – 200 psi. Material: DZR low lead brass.
|
|||
| 536073A 106 | 1 1/4" Press union |
||
|
3D models
Tender text
CALEFFI, 536073A 106, PresCal™ HP.
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. connection: 1 1/4" Press, press union. Adjustment pressure range: 90 – 150 psi. Maximum working temperature: 180 °F. Pressure gauge scale: 0 – 200 psi. Material: DZR low lead brass.
|
|||
| 536083A 106 | 1 1/2" Press union |
||
|
3D models
Tender text
CALEFFI, 536083A 106, PresCal™ HP.
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. connection: 1 1/2" Press, press union. Adjustment pressure range: 90 – 150 psi. Maximum working temperature: 180 °F. Pressure gauge scale: 0 – 200 psi. Material: DZR low lead brass.
|
|||
| 536093A 106 | 2" Press union |
||
|
3D models
Tender text
CALEFFI, 536093A 106, PresCal™ HP.
High flow pressure reducing valve (press, high range)
High performance piston type pressure reducing valve designed for demanding applications where water hammer and pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. connection: 2" Press, press union. Adjustment pressure range: 90 – 150 psi. Maximum working temperature: 180 °F. Pressure gauge scale: 0 – 200 psi. Material: DZR low lead brass.
|
|||
