Series 520

AngleMix+™, High-flow, angled thermostatic mixing valve

Download high resolution

Product Description

High-flow, angled thermostatic mixing valve
Point-of-distribution applications (ASSE 1017)

Complete with:

Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with tamper-resistant setpoint lock
Mixed outlet temperature gauge

Product Configurations:

Sizes: 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
Available Models:
- Valve + mixed outlet temperature gauge
- Valve + mixed outlet temperature gauge & inlet check valves

Technical data

Cv: 3.5

Maximum working pressure: 150 psi

Maximum inlet temperature: 195 °F

Temperature adjustment range: 95 – 150 °F

Note

*Meets the "lead free" requirement of Section 1417 of the Safe Drinking Water Act (SDWA). This product has a weighted average lead content of less than 0.25% for its wetted surfaces contacted with consumable water.

Certifications

Download

Drawings and specifications

Part number	Connection	Note
520610A	1" NPT male union	Temp. gauge
3D models bim Tender text CALEFFI, 520610A, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" NPT male, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520614A	1" PEX crimp union	Temp. gauge
3D models bim Tender text CALEFFI, 520614A, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" PEX crimp, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520615A	1" PEX expansion union	Temp. gauge
3D models bim Tender text CALEFFI, 520615A, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" PEX expansion, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520616A	1" Press union	Temp. gauge
3D models bim Tender text CALEFFI, 520616A, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.

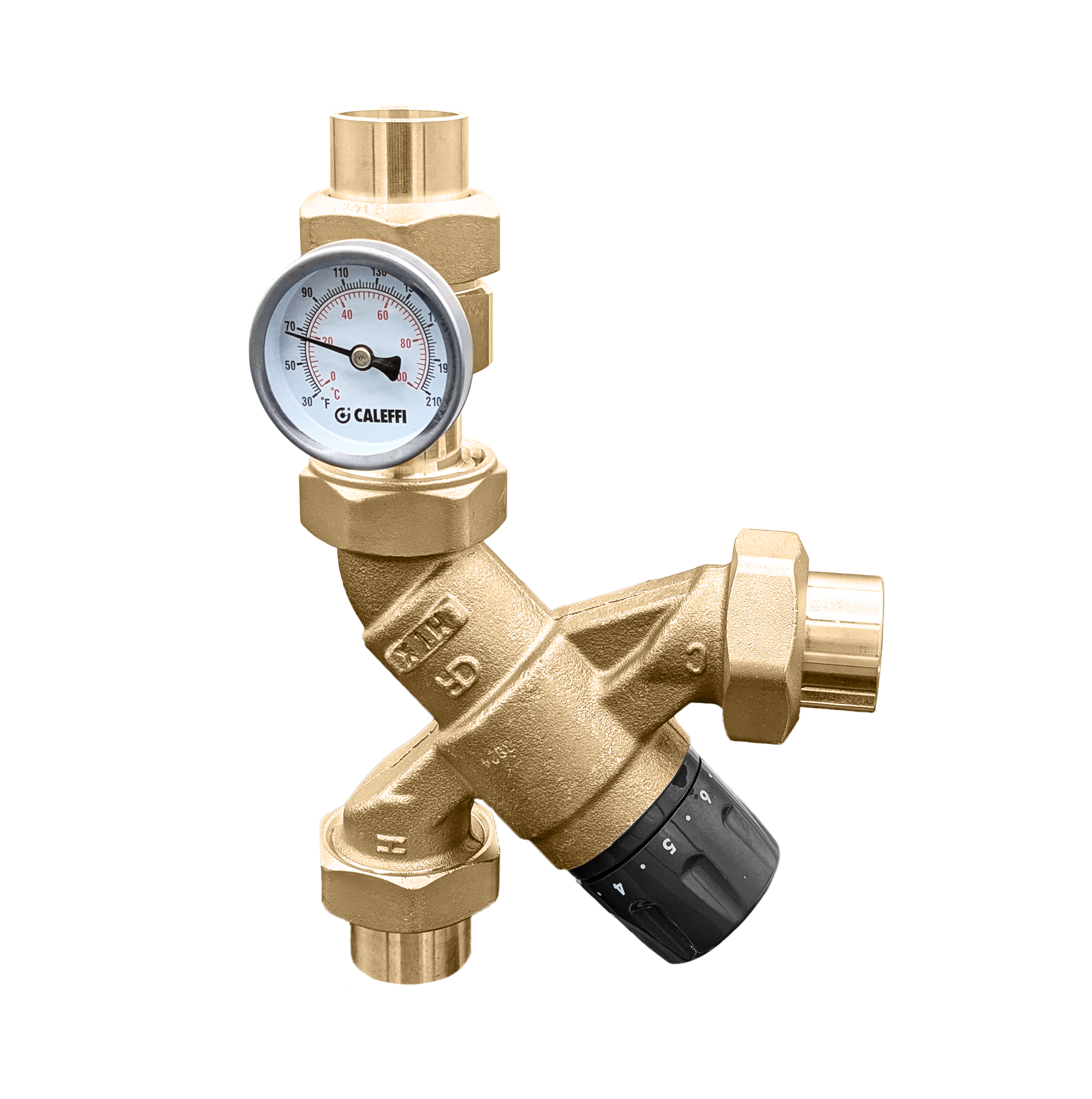

520619A	1" Sweat union	Temp. gauge
3D models bim Tender text CALEFFI, 520619A, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" Sweat, union. Maximum working pressure: 150 psi. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520610AC	1" NPT male union	Temp. gauge & check valves
3D models bim Tender text CALEFFI, 520610AC, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" NPT male, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520614AC	1" PEX crimp union	Temp. gauge & check valves
3D models bim Tender text CALEFFI, 520614AC, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" PEX crimp, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520615AC	1" PEX expansion union	Check valves
3D models bim Tender text CALEFFI, 520615AC, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" PEX expansion, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520616AC	1" Press union	Temp. gauge & check valves
3D models bim Tender text CALEFFI, 520616AC, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
520619AC	1" Sweat union	Temp. gauge & check valves
3D models bim Tender text CALEFFI, 520619AC, AngleMix+™. High-flow, angled thermostatic mixing valve Point-of-distribution applications (ASSE 1017) Complete with: Low-lead / lead-free, scale-resistant brass valve body Temperature adjustment knob with tamper-resistant setpoint lock Mixed outlet temperature gauge Product Configurations: Sizes: 1" Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion Available Models: Valve + mixed outlet temperature gauge Valve + mixed outlet temperature gauge & inlet check valves connection: 1" Sweat, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 3.5.
