AngleMix™ DL, Dual listed, angled thermostatic mixing valve
Product Description
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
- Mixing valve body
- Inlet check valves
- Mixed outlet temperature gauge
Connection Options:
- Sizes: ½", ¾", 1"
- Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
Technical data
Cv:
2.0
Maximum working pressure:
150 psi
Maximum inlet temperature:
195 °F
Temperature adjustment range:
95 – 150 °F
Note
*Meets the "lead free" requirement of Section 1417 of the Safe Drinking Water Act (SDWA). This product has a weighted average lead content of less than 0.25% for its wetted surfaces contacted with consumable water.
Certifications
pdf
Drawings and specifications
| Part number | Connection | Actions | |
|---|---|---|---|
| 520410AC DL | 1/2" NPT male union |
||
|
3D models
Tender text
CALEFFI, 520410AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1/2" NPT male, union. Maximum working pressure: 150 psi. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520414AC DL | 1/2" PEX crimp union |
||
|
3D models
Tender text
CALEFFI, 520414AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1/2" PEX crimp, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520415AC DL | 1/2" PEX expansion union |
||
|
3D models
Tender text
CALEFFI, 520415AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1/2" PEX expansion, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||

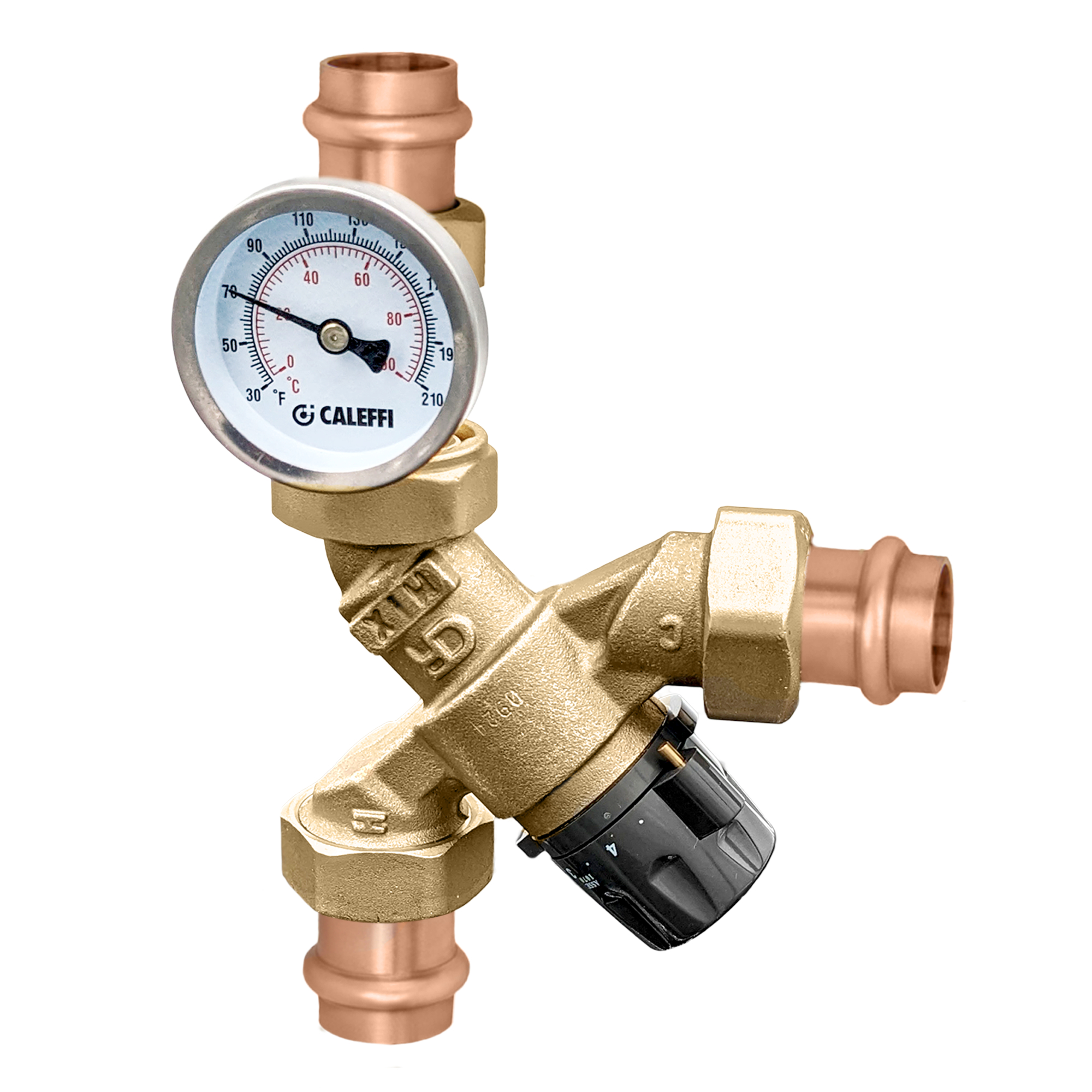

| 520416AC DL | 1/2" Press union |
||
|
3D models
Tender text
CALEFFI, 520416AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1/2" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520419AC DL | 1/2" Sweat union |
||
|
3D models
Tender text
CALEFFI, 520419AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1/2" Sweat, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520510AC DL | 3/4" NPT male union |
||
|
3D models
Tender text
CALEFFI, 520510AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 3/4" NPT male, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520514AC DL | 3/4" PEX crimp union |
||
|
3D models
Tender text
CALEFFI, 520514AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 3/4" PEX crimp, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520515AC DL | 3/4" PEX expansion union |
||
|
3D models
Tender text
CALEFFI, 520515AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 3/4" PEX expansion, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520516AC DL | 3/4" Press union |
||
|
3D models
Tender text
CALEFFI, 520516AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 3/4" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520519AC DL | 3/4" Sweat union |
||
|
3D models
Tender text
CALEFFI, 520519AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 3/4" Sweat, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520610AC DL | 1" NPT male union |
||
|
3D models
Tender text
CALEFFI, 520610AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1" NPT male, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520614AC DL | 1" PEX crimp union |
||
|
3D models
Tender text
CALEFFI, 520614AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1" PEX crimp, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520615AC DL | 1" PEX expansion union |
||
|
3D models
Tender text
CALEFFI, 520615AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1" PEX expansion, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520616AC DL | 1" Press union |
||
|
3D models
Tender text
CALEFFI, 520616AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1" Press, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
| 520619AC DL | 1" Sweat union |
||
|
3D models
Tender text
CALEFFI, 520619AC DL, AngleMix™ DL.
Dual listed, angled thermostatic mixing valve
Point-of-use or point-of-distribution applications - ASSE 1070 & ASSE 1017
Factory set mixed outlet temperature limited to 120 ºF
Complete with:
Low-lead / lead-free, scale-resistant brass valve body
Temperature adjustment knob with integrated 120 °F max-limit stop pin
Thermal shut-off on cold water supply failure (anti-scald protection)
Posi-Stop™ union connections
Inlet check valves and mixed outlet temperature gauge
Product Configurations:
Sizes: ½", ¾", 1"
Connection Types: Press, Sweat, NPT Male, PEX Crimp, PEX Expansion
connection: 1" Sweat, union. Temperature adjustment range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0.
|
|||
Caleffi Rep Locator
Find your nearest Caleffi Representative
