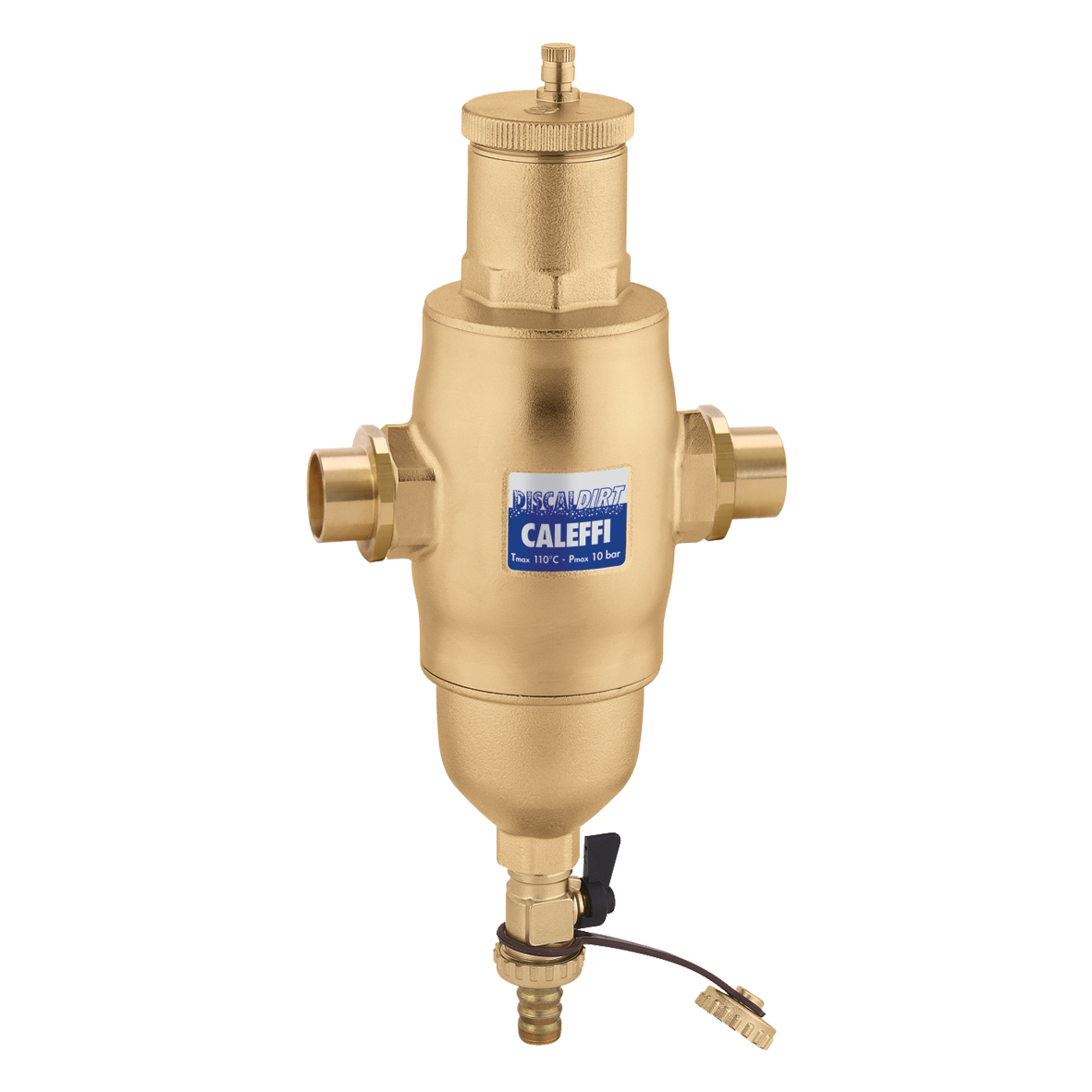

DISCALDIRT®, Air & dirt separator
Product Description
Air & dirt separator
Connection Options:
- Sizes: 1” - 1-¼”
- Types: NPT Male, Sweat
Complete with:
- Stainless steel float guide pin and linkage
- Glass reinforced nylon internal media
- Drain valve
Accessories (sold separately):
- Insulation jacket (1” - 1-¼”)
Technical data
Material:
brass
Medium temperature range:
32 – 250 °F
Maximum working pressure:
150 psi
pdf
Drawings and specifications
| Part number | Connection | Actions | |
|---|---|---|---|
| 546096A | 1" Sweat |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 546096A, DISCALDIRT®.
Air & dirt separator
Connection Options:
Sizes: 1” - 1-¼”
Types: NPT Male, Sweat
Complete with:
Stainless steel float guide pin and linkage
Glass reinforced nylon internal media
Drain valve
Accessories (sold separately):
Insulation jacket (1” - 1-¼”)
Connection: 1" Sweat. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Material: brass.
SCIP code
8ea1e45e-a234-48fe-9acf-ad297eb31ab4
|
|||
| 546016A | 1" NPT male |
||
|
3D models
Tender text
CALEFFI, 546016A, DISCALDIRT®.
Air & dirt separator
Stainless steel float guide pin and linkage
Glass reinforced nylon internal element
Complete with:
Drain valve with cap
connection: 1" NPT male. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Material: brass.
|
|||
| 546097A | 1 1/4" Sweat |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 546097A, DISCALDIRT®.
Air & dirt separator
Connection Options:
Sizes: 1” - 1-¼”
Types: NPT Male, Sweat
Complete with:
Stainless steel float guide pin and linkage
Glass reinforced nylon internal media
Drain valve
Accessories (sold separately):
Insulation jacket (1” - 1-¼”)
Connection: 1 1/4" Sweat. Maximum working pressure: 150 psi. Medium temperature range: 32 – 250 °F. Material: brass.
SCIP code
465c35c6-8004-48f6-ab63-70a5fe679247
|
|||
dwg
dxf
igs
stp
bim
