Series 116

ThermoSetter™, Adjustable thermal balancing valve with thermal disinfection capability (PEX)

Go to

Download high resolution

Product Description

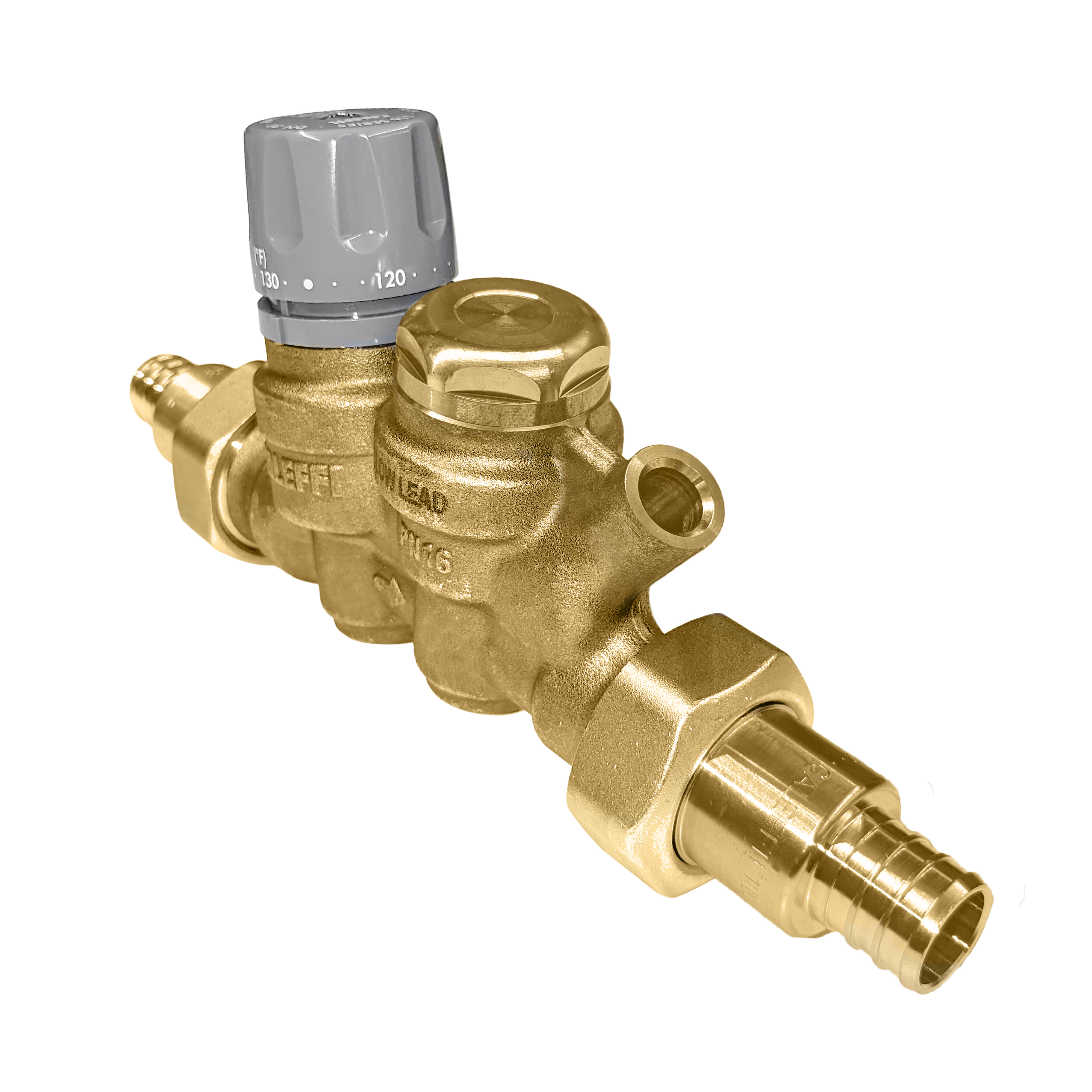

Adjustable thermal balancing valve with thermal disinfection capability (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:

Cavity for bypass cartridge
Outlet check valve

Optional:

Union isolation valves
Temperature gauge

Technical data

Maximum operating pressure: 230 psi

Adjustment temperature range: 95 – 140 °F

Max Cv: 2.1

Min Cv: 0.23

Disinfection Cv: 1.2

Material: DZR low lead brass

Download

Drawings and specifications

Part number	Connection	Note
116140AC 007	1/2" PEX crimp union	-
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116140AC 107	1/2" PEX crimp union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116140AC 008	1/2" PEX expansion union	-
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116140AC 108	1/2" PEX expansion union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116141AC 007	1/2" PEX crimp union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116141AC 107	1/2" PEX crimp union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116141AC 008	1/2" PEX expansion union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116141AC 108	1/2" PEX expansion union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116150AC 007	3/4" PEX crimp union	-
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116150AC 107	3/4" PEX crimp union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116150AC 008	3/4" PEX expansion union	-
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116150AC 108	3/4" PEX expansion union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116151AC 007	3/4" PEX crimp union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116151AC 107	3/4" PEX crimp union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116151AC 008	3/4" PEX expansion union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116151AC 108	3/4" PEX expansion union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve with thermal disinfection capability (PEX) For use in domestic hot water recirculation circuits Dual union connections Complete with: Cavity for bypass cartridge Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
