Series 116

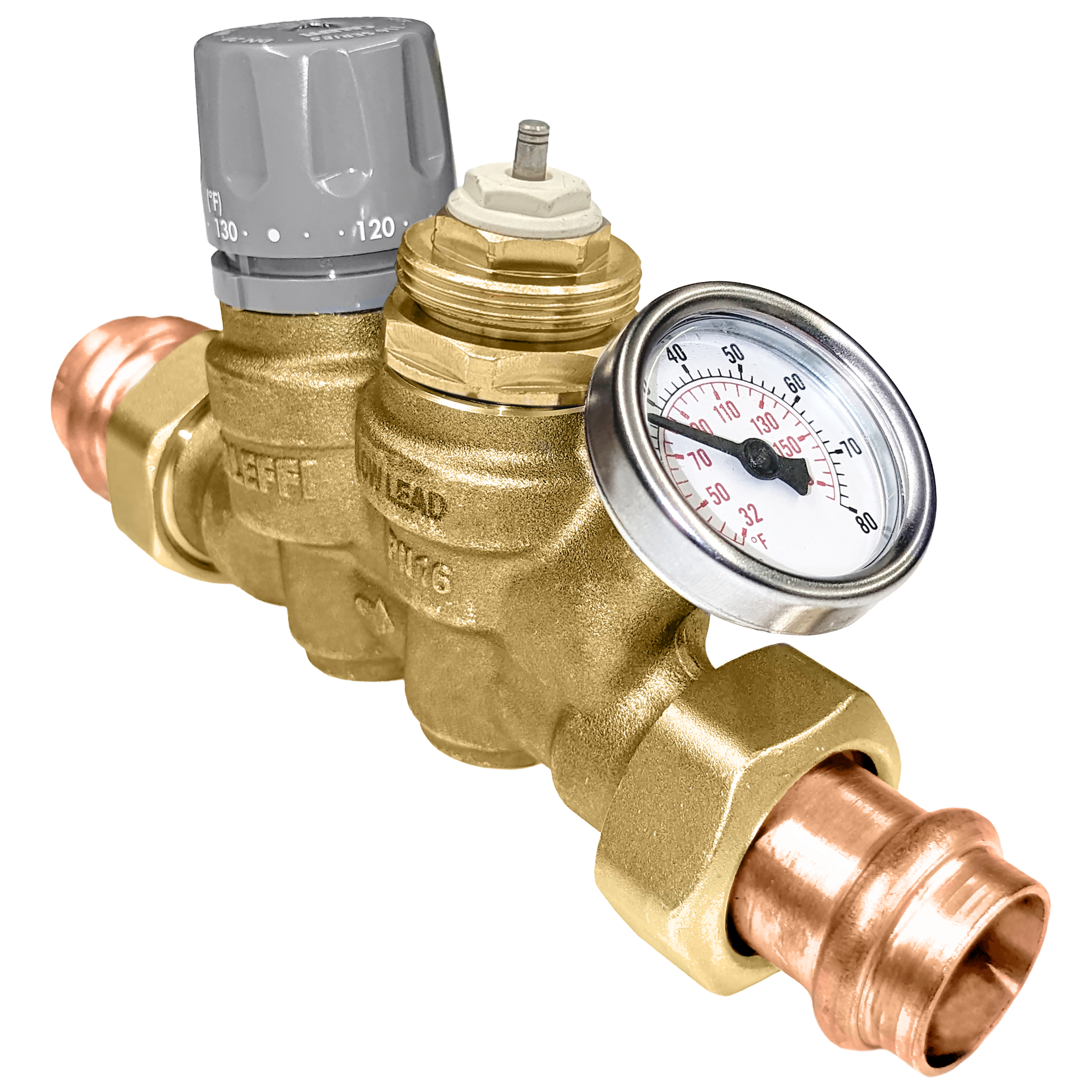

ThermoSetter™, Adjustable thermal balancing valve for thermal disinfection using electronic actuator (press)

Go to

Download high resolution

Product Description

Adjustable thermal balancing valve for thermal disinfection using electronic actuator (press)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:

Thermo-electric bypass valve
Outlet check valves
Temperature gauge

Optional:

Union isolation valves

656 series actuator for bypass valve sold separately

Technical data

Maximum operating pressure: 230 psi

Adjustment temperature range: 95 – 140 °F

Max Cv: 2.1

Min Cv: 0.23

Disinfection Cv: 1.2

Material: DZR low lead brass

Download

Drawings and specifications

Part number	Connection	Note
116340AC 006	1/2" press union	-
3D models bim Tender text Adjustable thermal balancing valve for thermal disinfection using electronic actuator (press) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermo-electric bypass valve Outlet check valves Temperature gauge Optional: Union isolation valves 656 series actuator for bypass valve sold separately connection: 1/2", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116340AC 106	1/2" press union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve for thermal disinfection using electronic actuator (press) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermo-electric bypass valve Outlet check valves Temperature gauge Optional: Union isolation valves 656 series actuator for bypass valve sold separately connection: 1/2", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116350AC 006	3/4" press union	-
3D models bim Tender text Adjustable thermal balancing valve for thermal disinfection using electronic actuator (press) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermo-electric bypass valve Outlet check valves Temperature gauge Optional: Union isolation valves 656 series actuator for bypass valve sold separately connection: 3/4", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116350AC 106	3/4" press union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve for thermal disinfection using electronic actuator (press) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermo-electric bypass valve Outlet check valves Temperature gauge Optional: Union isolation valves 656 series actuator for bypass valve sold separately connection: 3/4", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
