ThermoSetter™, Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
Product Description
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
- Thermo-electric bypass valve
- Outlet check valves
- Temperature gauge
Optional:
- Union isolation valves
656 series actuator for bypass valve sold separately
Technical data
Maximum operating pressure:
230 psi
Adjustment temperature range:
95 – 140 °F
Max Cv:
2.1
Min Cv:
0.23
Disinfection Cv:
1.2
Material:
DZR low lead brass
Download
Drawings and specifications
Part number | Connection | Note | |
---|---|---|---|
116340AC 007 | 1/2" PEX crimp union |
- | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||
116340AC 107 | 1/2" PEX crimp union |
With isolation valves | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||
116340AC 008 | 1/2" PEX expansion union |
- | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||
116340AC 108 | 1/2" PEX expansion union |
With isolation valves | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||

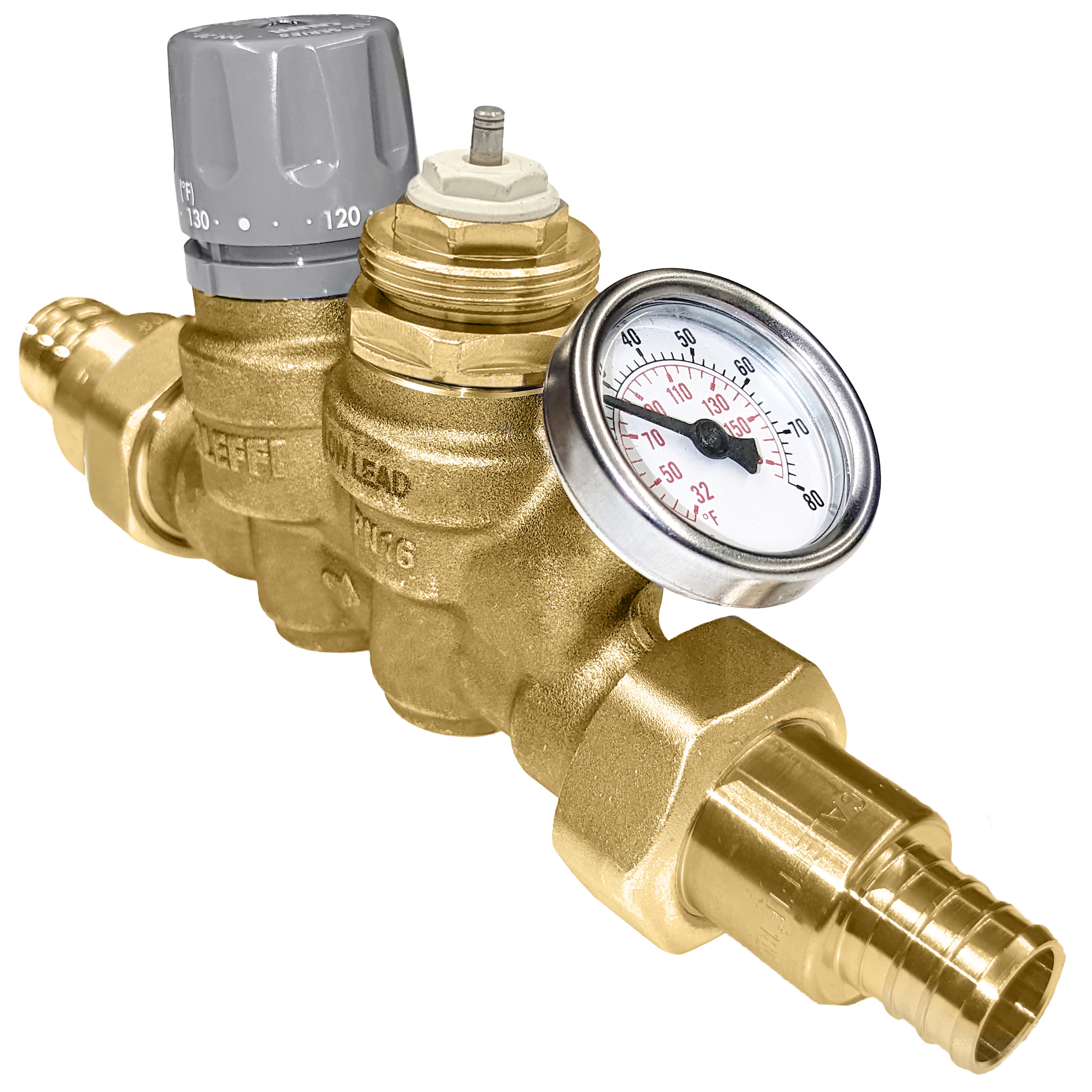

116350AC 007 | 3/4" PEX crimp union |
- | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||
116350AC 107 | 3/4" PEX crimp union |
With isolation valves | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||
116350AC 008 | 3/4" PEX expansion union |
- | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
|||
116350AC 108 | 3/4" PEX expansion union |
With isolation valves | |
3D models
Tender text
Adjustable thermal balancing valve for thermal disinfection using electronic actuator (PEX)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:
Thermo-electric bypass valve
Outlet check valves
Temperature gauge
Optional:
Union isolation valves
656 series actuator for bypass valve sold separately
connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
|
