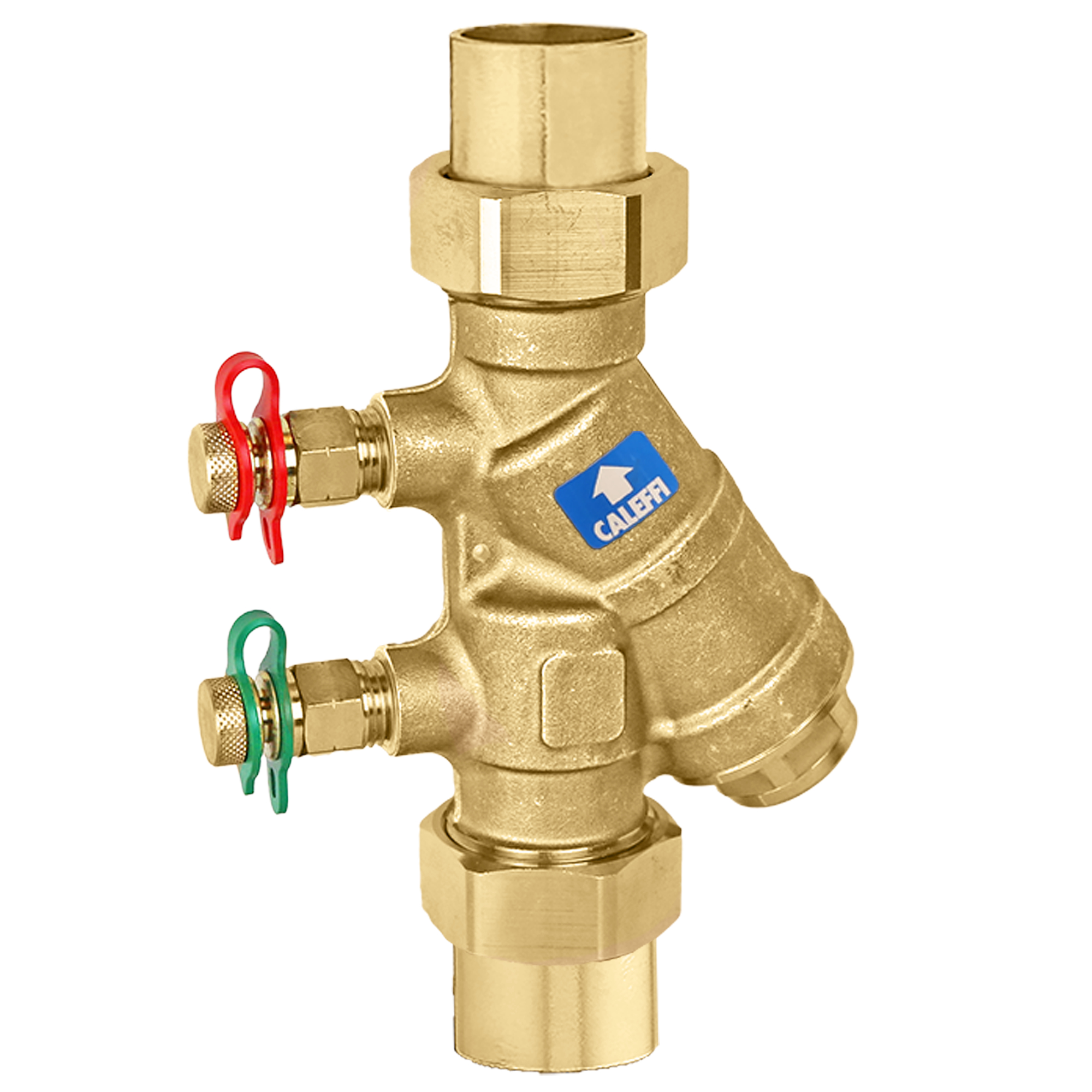

FlowCal+™ sweat, Y-body automatic balancing valves.
Product Description
Y-body automatic balancing valves.
Patented anti-scale, low noise polymer FlowCal™cartridge.
PT ports included.
1⁄2" FNPT plugged blowdown port.
Models with 2" diameter temperature gauge.
Technical data
Maximum operating pressure:
400 psi
Medium temperature range:
32–212 °F
Maximum glycol %:
50 %
Medium:
water, glycol solutions
Flow rate working range:
0.35–10 gpm
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 128449AFC*** | 1/2" Sweat union |
PT ports, check | |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 128449AFC***, FlowCal+™ sweat.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. Models with 2" diameter temperature gauge. connection: 1/2" Sweat, union.
|
|||
| 128459AFC*** | 3/4" Sweat union |
PT ports, check | |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 128459AFC***, FlowCal+™ sweat.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. Models with 2" diameter temperature gauge. connection: 3/4" Sweat, union.
|
|||
| 128469AFC*** | 1" Sweat union |
PT ports, check | |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 128469AFC***, FlowCal+™ sweat.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. Models with 2" diameter temperature gauge. connection: 1" Sweat, union.
|
|||
