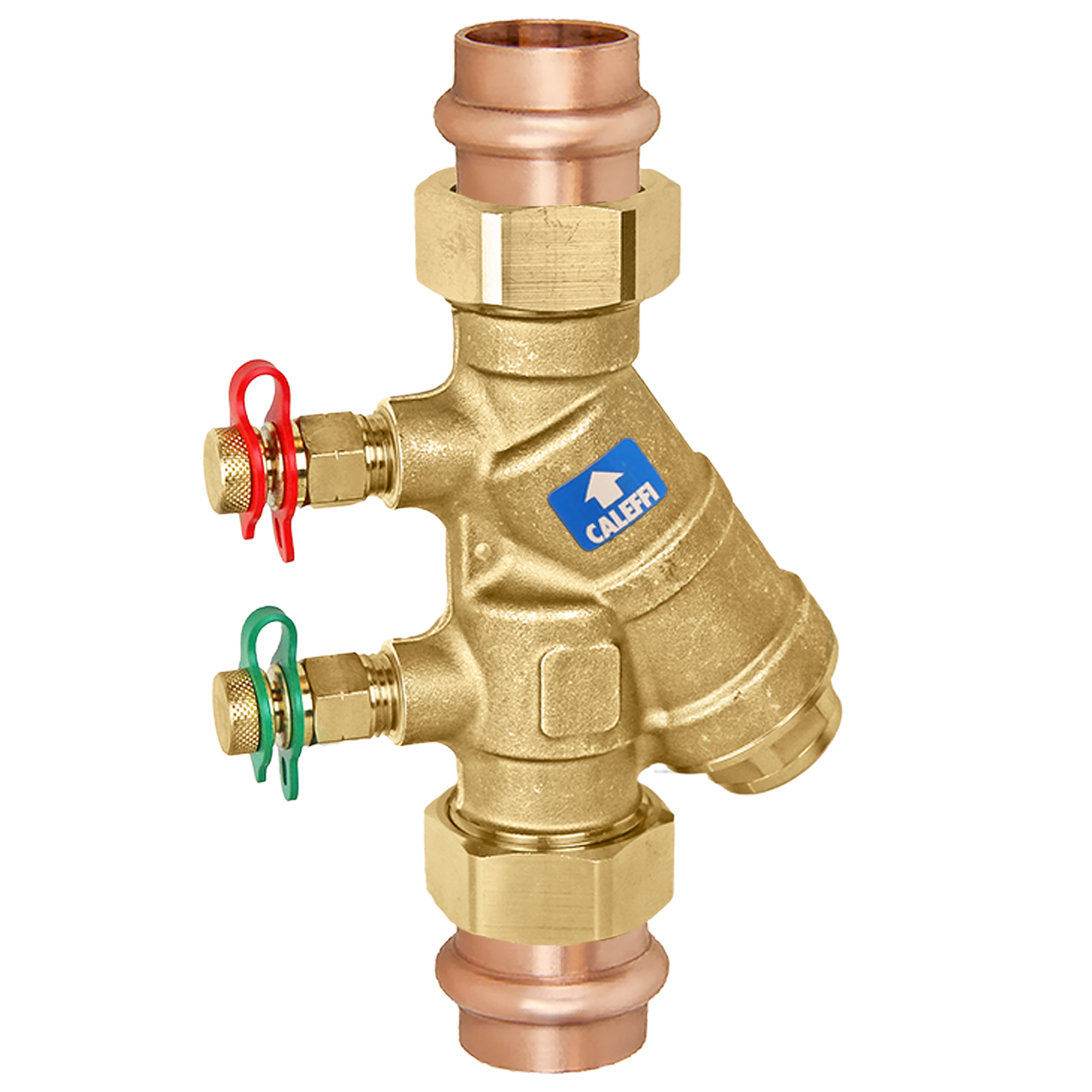

FlowCal+™ press, Y-body automatic balancing valves.
Product Description
Y-body automatic balancing valves.
Patented anti-scale, low noise polymer FlowCal™cartridge.
PT ports included.
1⁄2" FNPT plugged blowdown port.
Models with 2" diameter temperature gauge.
Technical data
Maximum working pressure:
400 psi
Medium temperature range:
32–212 °F
Maximum percentage of glycol:
50 %
Medium:
technical water, glycol solutions
Flow rate working range:
0.35–10 gpm
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 128446AFC*** | 1/2" press |
PT ports, check | |
|
3D models
Tender text
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. Models with 2" diameter temperature gauge. connection: 1/2", press. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate working range: 0.35–10 gpm.
|
|||
| 128456AFC*** | 3/4" press |
PT ports, check | |
|
3D models
Tender text
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. Models with 2" diameter temperature gauge. connection: 3/4", press. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate working range: 0.35–10 gpm.
|
|||
| 128466AFC*** | 1" press |
PT ports, check | |
|
3D models
Tender text
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. Models with 2" diameter temperature gauge. connection: 1", press. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Flow rate working range: 0.35–10 gpm.
|
|||
