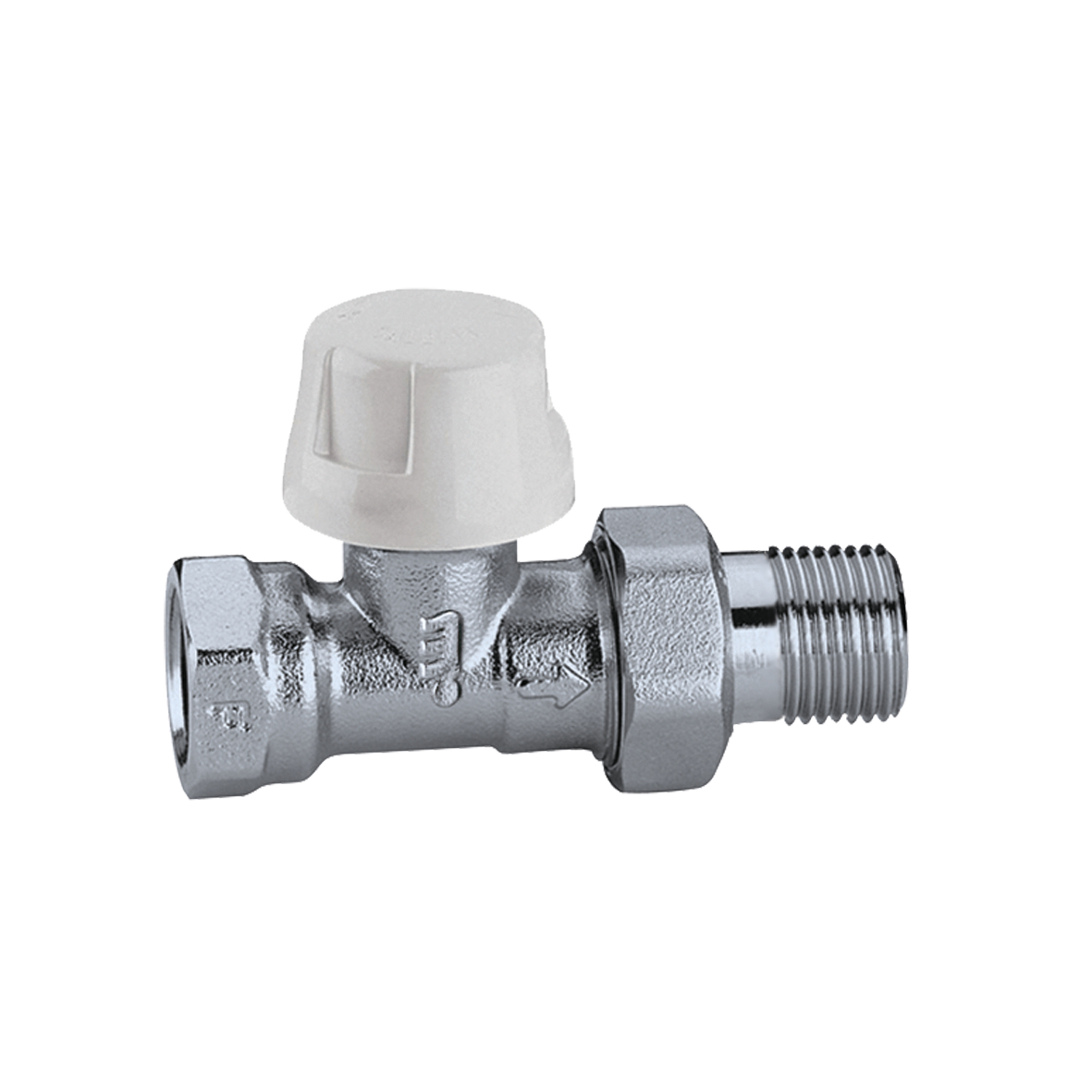

Radiator Valve Body (straight)
Product Description
Radiator Valve Body (straight)
Compatible with 200, 201, 203, 472 and 4490 control heads, and 6564 actuators
Technical data
Finish:
Chrome
Medium temperature range:
40–212 °F
Maximum operating pressure:
150 psi
pdf
Drawings and specifications
| Part number | Inlet Connection | Connection | Cv |
|---|---|---|---|
| 221400A | 1/2" NPT female |
1/2" NPT male union |
1.7 gpm |
|
3D models
Tender text
CALEFFI, 221400A.
Radiator Valve Body (straight)
Compatible with 200, 201, 203, 472 and 4490 control heads, and 6564 actuators
Inlet Connection: 1/2" NPT female. connection: 1/2" NPT male, union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Finish: Chrome. Cv: 1.7 gpm.
SCIP code
ba188f72-970a-4d88-b695-591b7943094a
|
|||
| 221500A | 3/4" NPT female |
3/4" NPT male union |
2.5 gpm |
|
3D models
Tender text
CALEFFI, 221500A.
Radiator Valve Body (straight)
Compatible with 200, 201, 203, 472 and 4490 control heads, and 6564 actuators
Inlet Connection: 3/4" NPT female. connection: 3/4" NPT male, union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Finish: Chrome. Cv: 2.5 gpm.
SCIP code
f0049cdc-1710-4af1-bdfe-164f7d5bdce5
|
|||
