Series 220

Radiator Valve Body (angled)

Go to
Download high resolution

Product Description

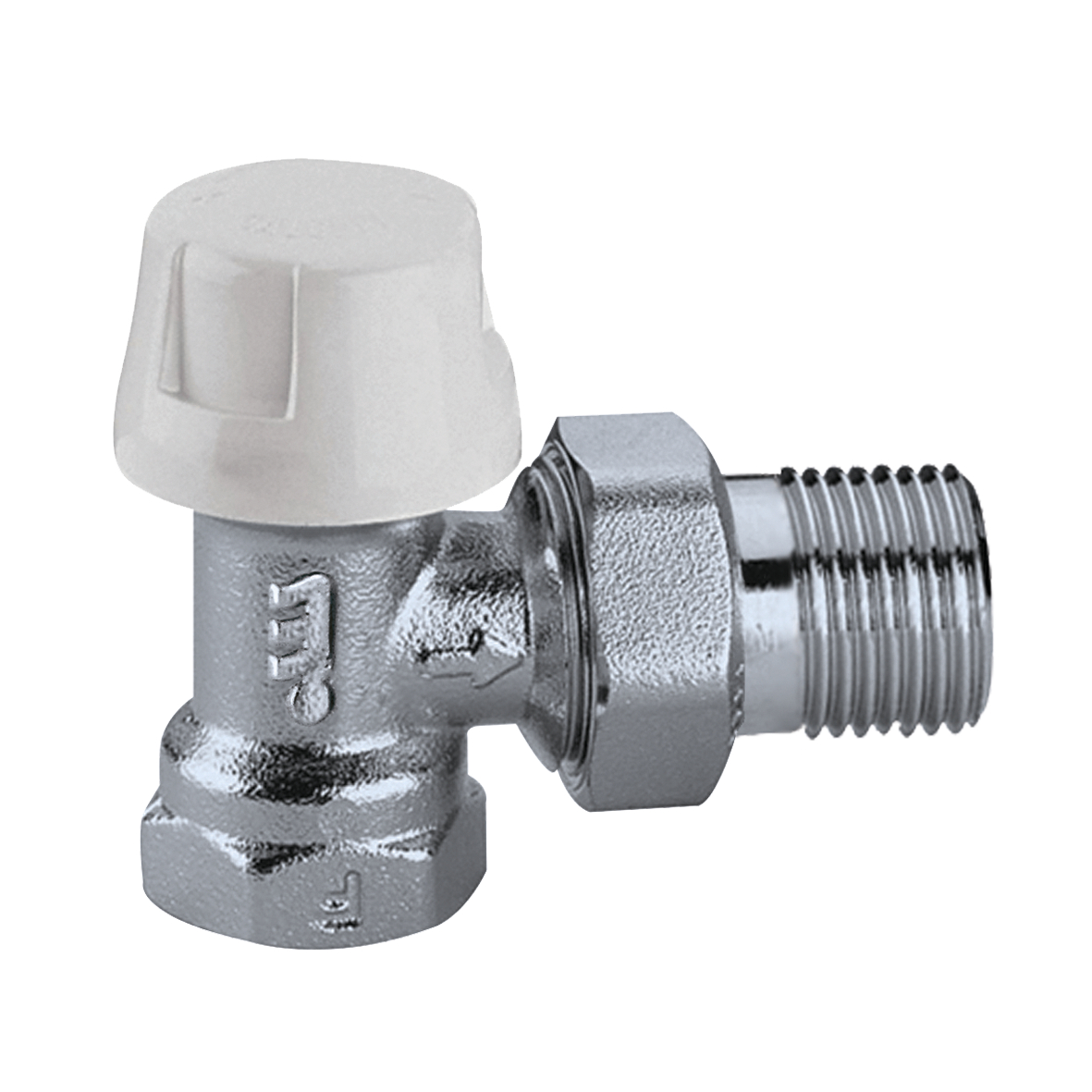

Radiator Valve Body (angled)
Angled radiator valve body.

Technical data

Maximum operating pressure: 150 psi
Fluid temperature range: 40–212 °F
Finish: Chrome

Note

Order thermo-electric actuators or thermostatic control heads separately for field installation.

Drawings and specifications

Code Inlet Connection Connection Cv
3D models
Tender text
Radiator Valve Body (angled) Angled radiator valve body. Inlet Connection: 1/2" FNPT. connection: 1/2" MNPT, union. Maximum operating pressure: 150 psi. Fluid temperature range: 40–212 °F. Finish: Chrome. Cv: 2.7 gpm.
SCIP code
44e02451-e9bd-40b1-b9ee-3a0195bfa8f8
3D models
Tender text
Radiator Valve Body (angled) Angled radiator valve body. Inlet Connection: 3/4" FNPT. connection: 3/4" MNPT, union. Maximum operating pressure: 150 psi. Fluid temperature range: 40–212 °F. Finish: Chrome. Cv: 3.7 gpm.
SCIP code
b0a95bdc-501f-4f8a-b92c-a636b1c0d3e8
