Series NA108

Isolation full-port ball valve

Go to
Download high resolution

Product Description

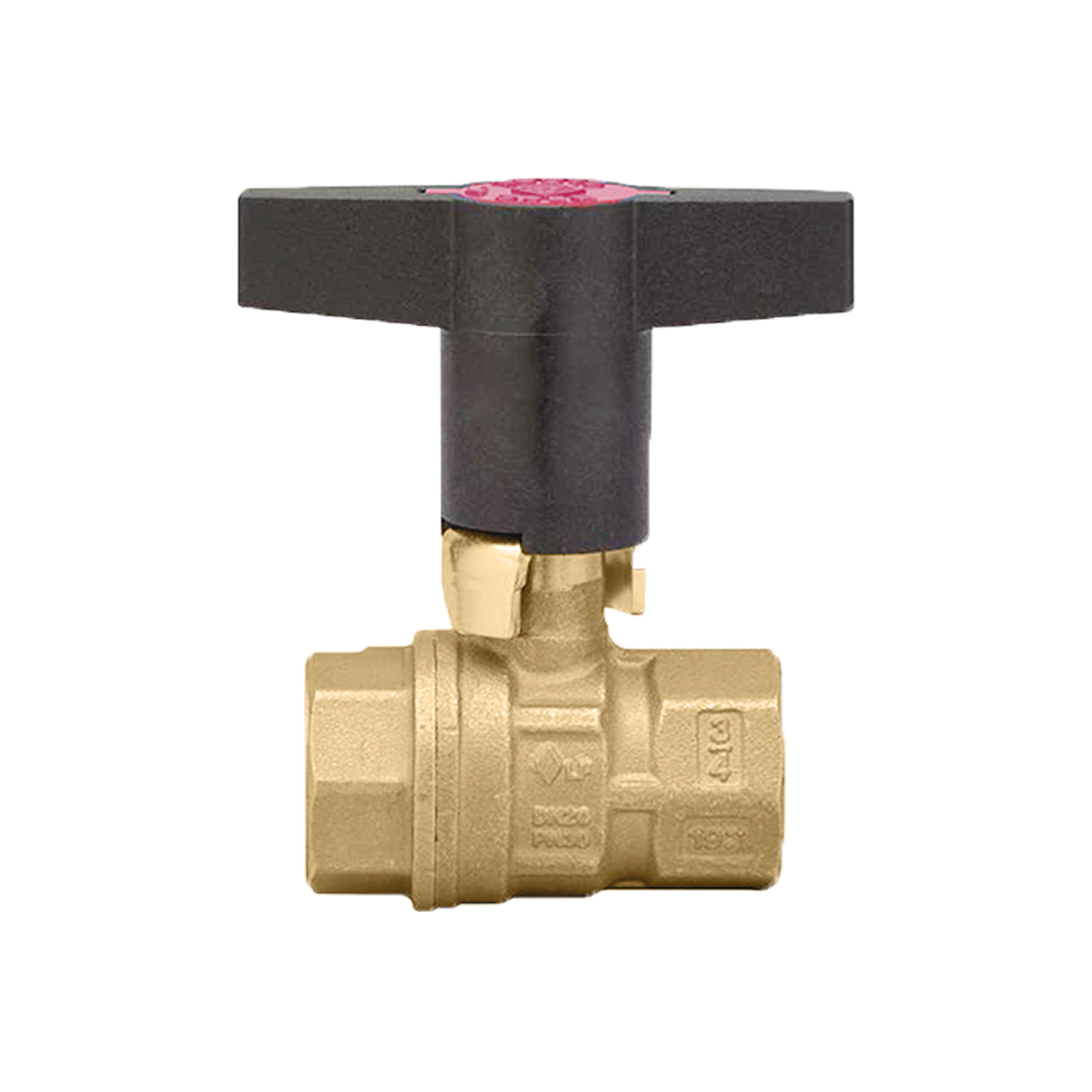

Isolation full-port ball valve
NPT full port ball valves with extended operator handle for insulated or bare pipes.
For use with hot or cold water piping in plumbing or hydronic applications.
High strength forged low lead brass. Blowout-proof stem with dual o-ring seals.

Technical data

Fluid temperature range: -4–366 °F
Fluid temperature range - Note: without ice

Note

To order a ThermoSetterTM with isolation ball valves, add suffix “...001” to any of the 116 Series code numbers listed in these pages. See NA108 Series on page 93 for isolation valve details. Contact Caleffi for 116...001 List Prices.

Certifications

ES LOW LEAD
Buy American Act
California HSC 116875
Maryland HB372
United States S.3874
Vermont Act 193
NSF/ANSI/CAN 372

Drawings and specifications

Code Connection Note
3D models
Tender text
Isolation full-port ball valve NPT full port ball valves with extended operator handle for insulated or bare pipes. For use with hot or cold water piping in plumbing or hydronic applications. High strength forged low lead brass. Blowout-proof stem with dual o-ring seals. connection: 1/2" FNPT. Fluid temperature range: -4–366 °F (without ice).
3D models
Tender text
Isolation full-port ball valve NPT full port ball valves with extended operator handle for insulated or bare pipes. For use with hot or cold water piping in plumbing or hydronic applications. High strength forged low lead brass. Blowout-proof stem with dual o-ring seals. connection: 3/4" FNPT. Fluid temperature range: -4–366 °F (without ice).
3D models
Tender text
Isolation full-port ball valve NPT full port ball valves with extended operator handle for insulated or bare pipes. For use with hot or cold water piping in plumbing or hydronic applications. High strength forged low lead brass. Blowout-proof stem with dual o-ring seals. connection: 1" FNPT. Fluid temperature range: -4–366 °F (without ice).
3D models
Tender text
Isolation full-port ball valve NPT full port ball valves with extended operator handle for insulated or bare pipes. For use with hot or cold water piping in plumbing or hydronic applications. High strength forged low lead brass. Blowout-proof stem with dual o-ring seals. connection: 1 1/4" FNPT. Fluid temperature range: -4–366 °F (without ice).
3D models
Tender text
Isolation full-port ball valve NPT full port ball valves with extended operator handle for insulated or bare pipes. For use with hot or cold water piping in plumbing or hydronic applications. High strength forged low lead brass. Blowout-proof stem with dual o-ring seals. connection: 1 1/2" FNPT. Fluid temperature range: -4–366 °F (without ice).
3D models
Tender text
Isolation full-port ball valve NPT full port ball valves with extended operator handle for insulated or bare pipes. For use with hot or cold water piping in plumbing or hydronic applications. High strength forged low lead brass. Blowout-proof stem with dual o-ring seals. connection: 2" FNPT. Fluid temperature range: -4–366 °F (without ice).

Applications
