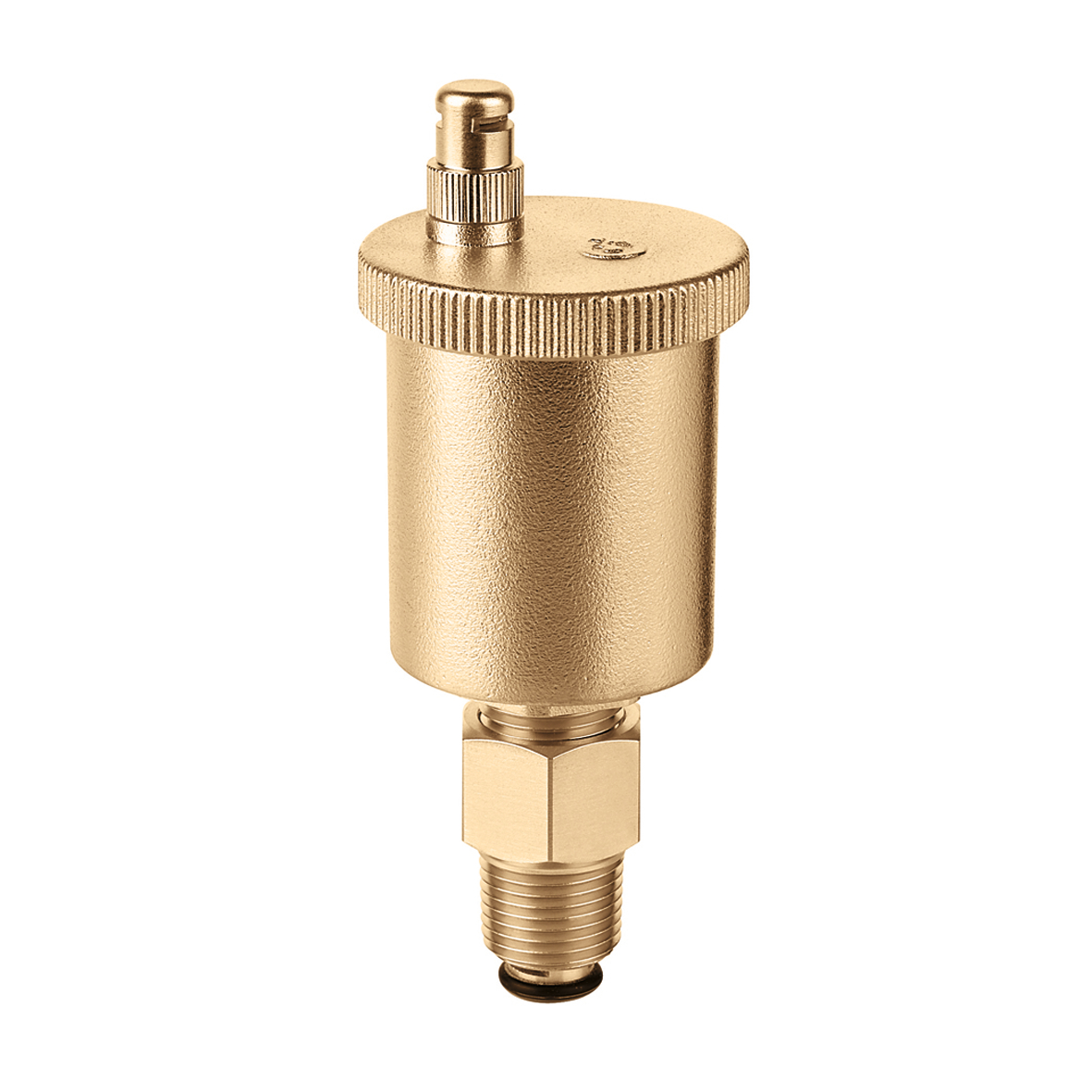

Series 5023

VALCAL™, High discharge automatic air vent with service check

Go to
Download high resolution

Product Description

High discharge automatic air vent with service check
Hygroscopic safety air vent cap

Replacement air vent for union 548 hydro separators

Technical data

Material: brass
Maximum air discharge pressure: 60 psi
Maximum discharge rate: 2.5 SCFM
Medium temperature range: 32–230 °F
Maximum operating pressure: 150 psi
Find us in MasterSpec

Download

01090_NA.pdf pdf
Technical brochure
Download
38521_NA.pdf pdf
Instruction sheet
Download
Idronics_15_NA_Separation in hydronic systems.pdf pdf
Idronics
Idronics 15 - Separation in Hydronic Systems
Download

Drawings and specifications

Part number Connection
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 502343A, VALCAL™. High discharge automatic air vent with service check Hygroscopic safety air vent cap Replacement air vent for union 548 hydro separators connection: 1/2" MNPT. Maximum operating pressure: 150 psi. Maximum air discharge pressure: 60 psi. Medium temperature range: 32 – 230 °F. Maximum discharge rate: 2.5 SCFM. Material: brass.
SCIP code
a8d2eb97-b1f3-4fe5-9658-a87f0442ca2f

Applications
