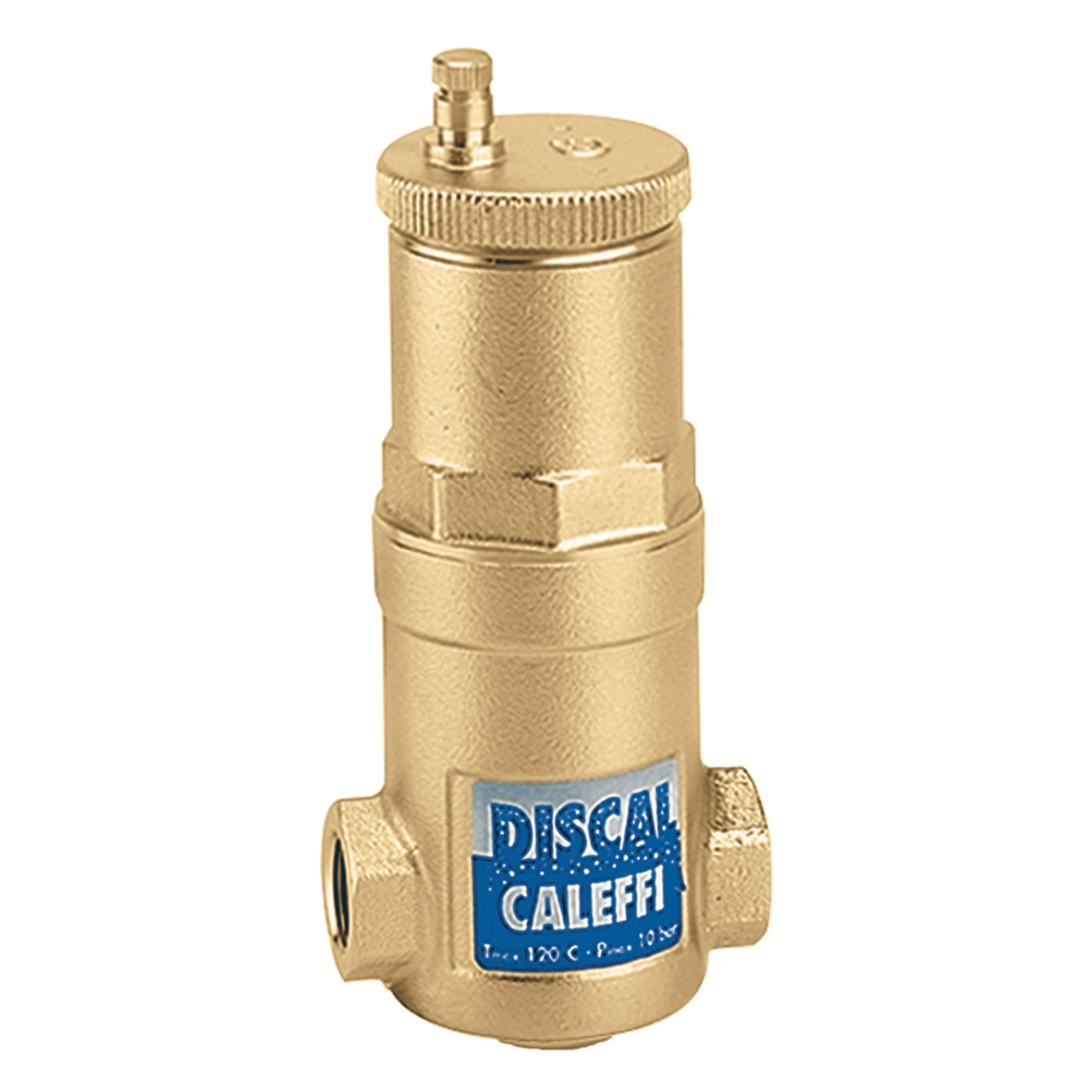

DISCAL®, Air separator (compact)
Product Description
Air separator (compact)
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
½" FNPT bottom thread for service check valve
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
32–250 °F
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 551003A | 3/4" FNPT |
- | |
|
3D models
Tender text
Air separator (compact)
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
½" FNPT bottom thread for service check valve
connection: 3/4" FNPT. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
SCIP code
d8d60454-6e27-422d-9b30-8812a4e6f934
|
|||
| 551003AC | 3/4" FNPT |
Service check valve | |
|
3D models
Tender text
Air separator (compact)
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
½" FNPT bottom thread for service check valve
connection: 3/4" FNPT. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F.
|
|||
| 551022A | 3/4" sweat |
- | |
|
3D models
Tender text
Air separator (compact)
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
½" FNPT bottom thread for service check valve
connection: 3/4", sweat. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
SCIP code
d8d60454-6e27-422d-9b30-8812a4e6f934
|
|||
| 551022AC | 3/4" sweat |
Service check valve | |
|
3D models
Tender text
Air separator (compact)
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
½" FNPT bottom thread for service check valve
connection: 3/4" sweat. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F.
|
|||
