DISCALDIRT® ASME/CRN, Flanged air & dirt separator
Product Description

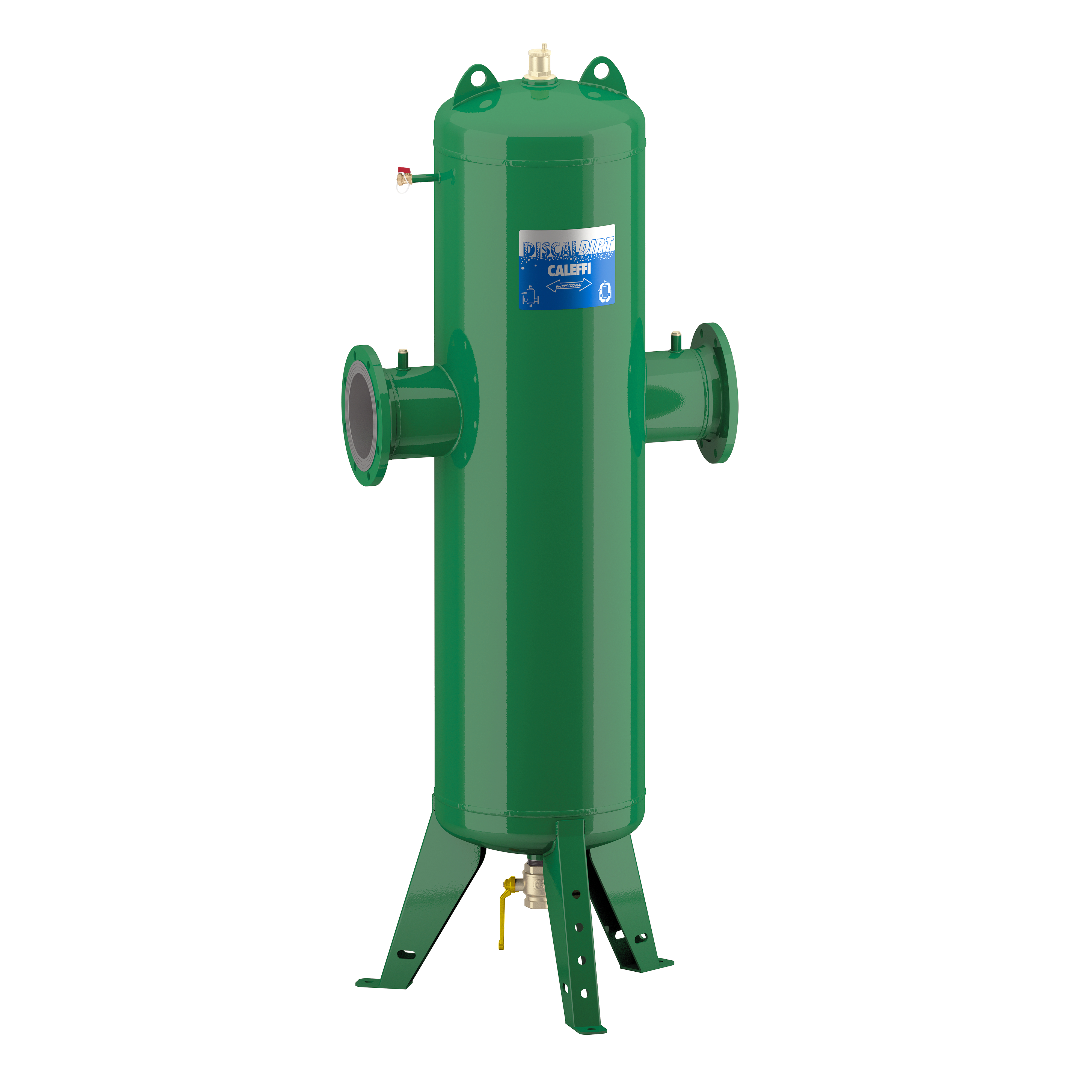

Flanged air & dirt separator
Connection Options:
- Sizes: 8” - 14"
- Types: Flange
Complete with:
- Stainless steel float guide pin and linkage
- Stainless steel mesh internal media
- ½” NPT male drain valve (side)
- 2” NPT female drain valve (bottom)
- Thermowell tap (NPT): ½” inlet/outlet flanges
Technical data
Material:
steel
Medium temperature range:
32 – 270 °F
Maximum operating pressure:
150 psi
Note
NA prefix indicates ASME tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered thru 12". Consult factory for 14"
pdf
Drawings and specifications
| Part number | Connection | Actions | |
|---|---|---|---|
| NA546200A | 8'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
CALEFFI, NA546200A, DISCALDIRT® ASME/CRN.
Flanged air & dirt separator
Connection Options:
Sizes: 8” - 14"
Types: Flange
Complete with:
Stainless steel float guide pin and linkage
Stainless steel mesh internal media
½” NPT male drain valve (side)
2” NPT female drain valve (bottom)
Thermowell tap (NPT): ½” inlet/outlet flanges
connection: 8'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
| NA546250A | 10'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
CALEFFI, NA546250A, DISCALDIRT® ASME/CRN.
Flanged air & dirt separator
Connection Options:
Sizes: 8” - 14"
Types: Flange
Complete with:
Stainless steel float guide pin and linkage
Stainless steel mesh internal media
½” NPT male drain valve (side)
2” NPT female drain valve (bottom)
Thermowell tap (NPT): ½” inlet/outlet flanges
connection: 10'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
| NA546300A | 12'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
CALEFFI, NA546300A, DISCALDIRT® ASME/CRN.
Flanged air & dirt separator
Connection Options:
Sizes: 8” - 14"
Types: Flange
Complete with:
Stainless steel float guide pin and linkage
Stainless steel mesh internal media
½” NPT male drain valve (side)
2” NPT female drain valve (bottom)
Thermowell tap (NPT): ½” inlet/outlet flanges
connection: 12'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
| NA546350A | 14'' ANSI 150 flange ASME |
||
|
3D models
Tender text
CALEFFI, NA546350A, DISCALDIRT® ASME/CRN.
Flanged air & dirt separator
Connection Options:
Sizes: 8” - 14"
Types: Flange
Complete with:
Stainless steel float guide pin and linkage
Stainless steel mesh internal media
½” NPT male drain valve (side)
2” NPT female drain valve (bottom)
Thermowell tap (NPT): ½” inlet/outlet flanges
connection: 14'' ANSI 150 flange, ASME. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
