DISCALDIRT®, Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Product Description

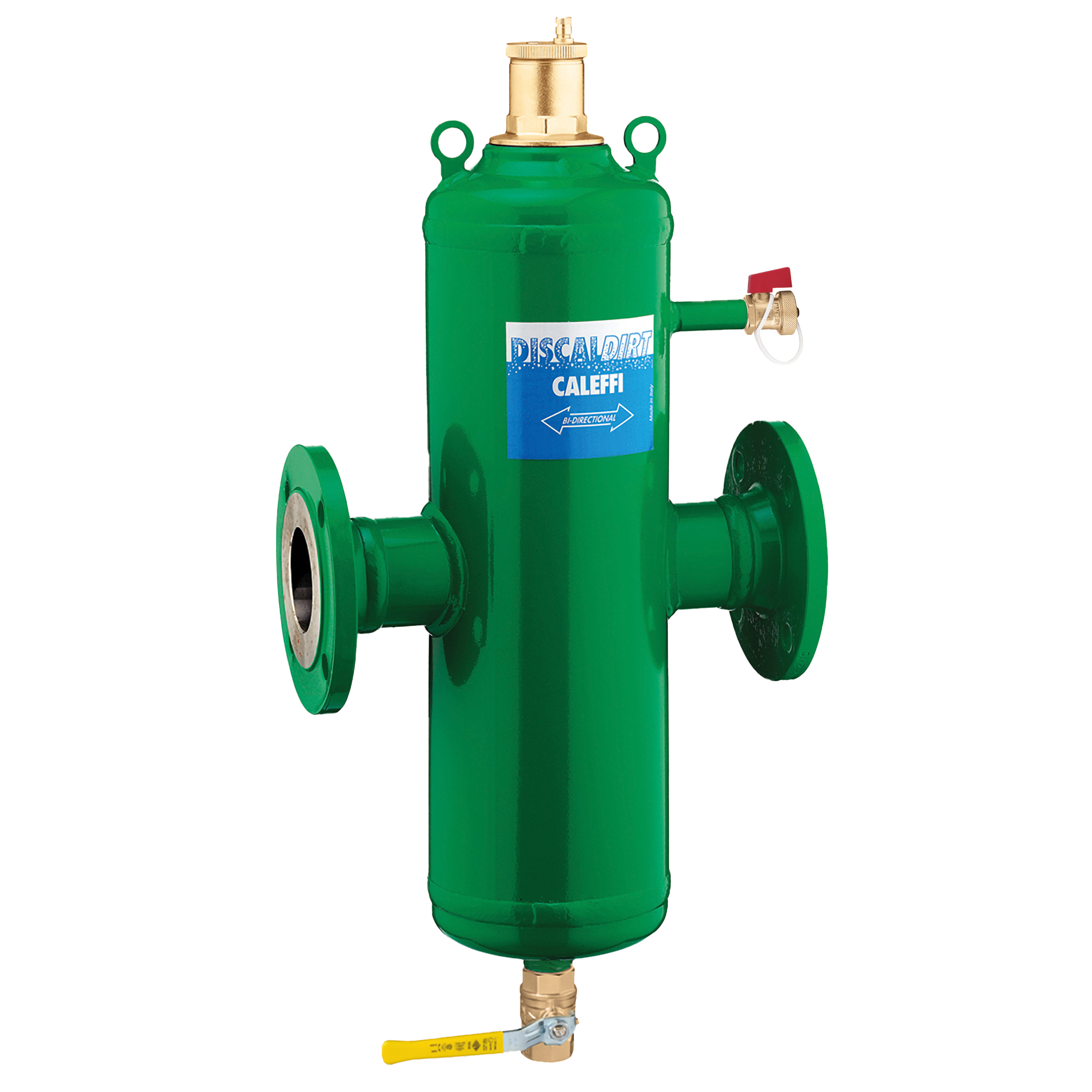

Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
- ½" MNPT side drain valve
- 1" FNPT bottom drain valve
Technical data
Maximum operating pressure:
150 psi
Medium temperature range:
32 – 270 °F
Material:
steel
Note
NA prefix indicates ASME tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered
Download
Drawings and specifications
Part number | Connection | ||
---|---|---|---|
NA546050T | 2" MNPT ASME & CRN |
||
3D models
Tender text
Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
½" MNPT side drain valve
1" FNPT bottom drain valve
connection: 2" MNPT, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546060A | 2 1/2" ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
½" MNPT side drain valve
1" FNPT bottom drain valve
connection: 2 1/2" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546080A | 3" ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
½" MNPT side drain valve
1" FNPT bottom drain valve
connection: 3" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546100A | 4" ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
½" MNPT side drain valve
1" FNPT bottom drain valve
connection: 4" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546120A | 5'' ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
½" MNPT side drain valve
1" FNPT bottom drain valve
connection: 5'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
|||
NA546150A | 6'' ANSI 150 flange ASME & CRN |
||
3D models
Tender text
Air & Dirt separator (ANSI flange ASME & CRN, 2" - 6")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
½" MNPT side drain valve
1" FNPT bottom drain valve
connection: 6'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 270 °F. Material: steel.
|
