DISCALDIRT®, Air & Dirt separator (ANSI flange 2" - 5")
Product Description

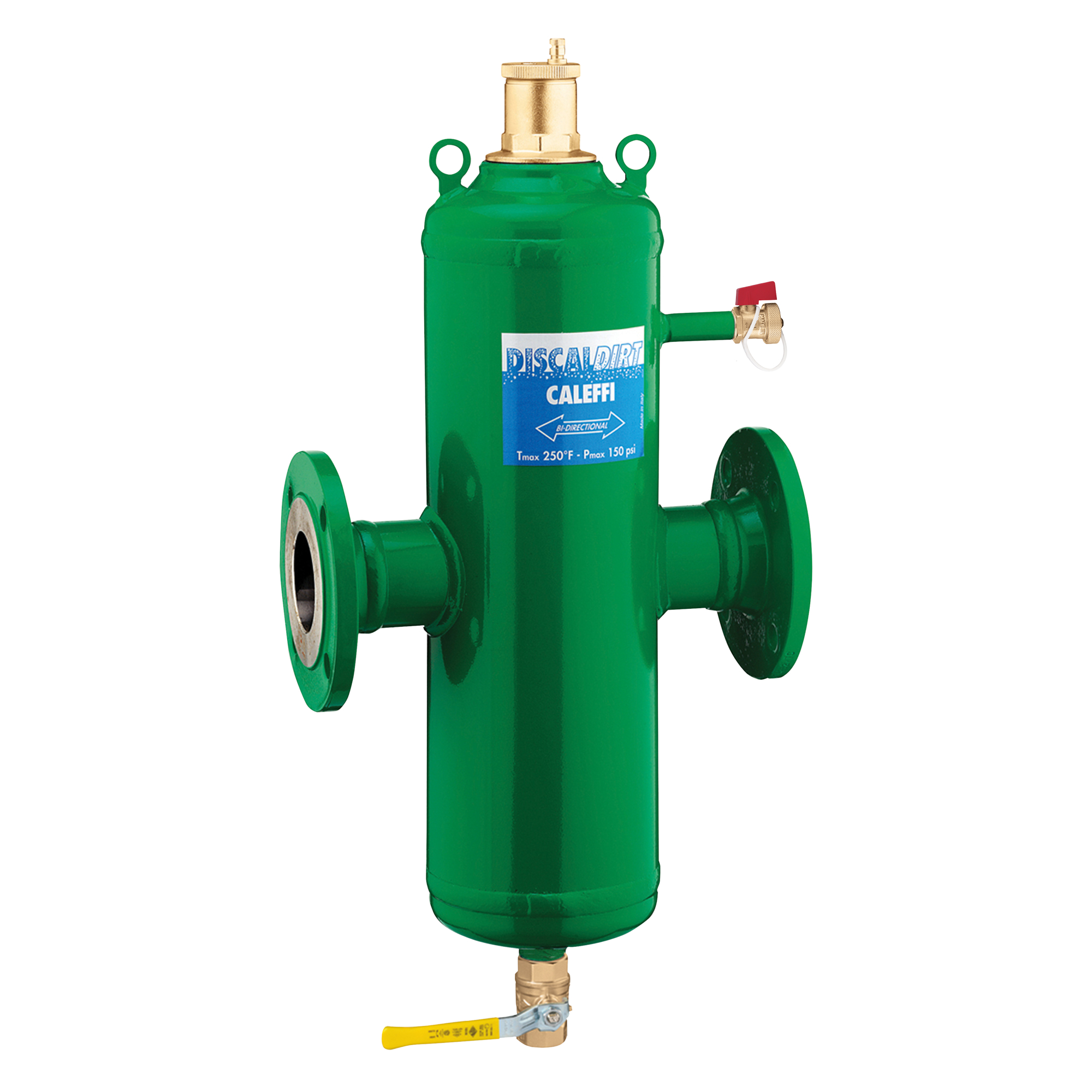

Air & Dirt separator (ANSI flange 2" - 5")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:
- ½" MNPT side drain valve
- 1" FNPT bottom drain valve
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
32–270 °F
Material:
steel
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 546050A | 2" ANSI 150 flange |
||
|
3D models
Tender text
Air & Dirt separator (ANSI flange 2" - 5")
Complete with side drain valve (538402 FD), drain valve (NA39753). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" NPT threaded bottom drain connection. connection: 2" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32–270 °F. Material: steel.
|
|||
| 546060A | 2 1/2" ANSI 150 flange |
||
|
3D models
Tender text
Air & Dirt separator (ANSI flange 2" - 5")
Complete with side drain valve (538402 FD), drain valve (NA39753). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" NPT threaded bottom drain connection. connection: 2 1/2" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32–270 °F. Material: steel.
|
|||
| 546080A | 3" ANSI 150 flange |
||
|
3D models
Tender text
Air & Dirt separator (ANSI flange 2" - 5")
Complete with side drain valve (538402 FD), drain valve (NA39753). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" NPT threaded bottom drain connection. connection: 3" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32–270 °F.
|
|||
| 546100A | 4" ANSI 150 flange |
||
|
3D models
Tender text
Air & Dirt separator (ANSI flange 2" - 5")
Complete with side drain valve (538402 FD), drain valve (NA39753). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" NPT threaded bottom drain connection. connection: 4" ANSI 150 flange. Maximum operating pressure: 150 psi. Fluid temperature range: 32–270 °F.
|
|||
| 546120A | 5'' ANSI 150 flange |
||
|
3D models
Tender text
Air & Dirt separator (ANSI flange 2" - 5")
Complete with side drain valve (538402 FD), drain valve (NA39753). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" NPT threaded bottom drain connection. connection: 5'' ANSI 150 flange. Maximum operating pressure: 150 psi. Fluid temperature range: 32–270 °F.
|
|||
