SEP4™, 4-in-1 Hydraulic Separators (Union)
Product Description

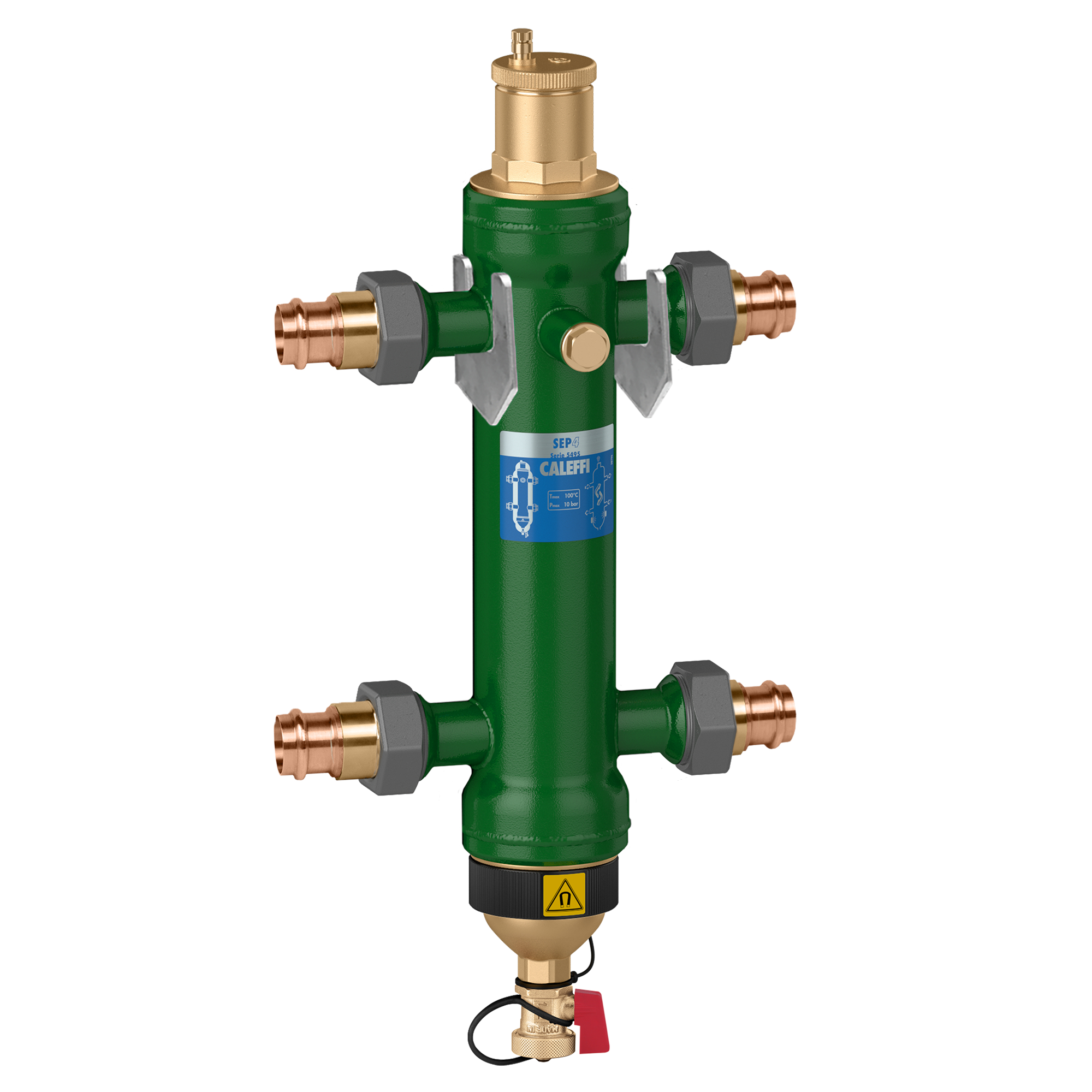

4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
- Drain valve
- Thermowell tap: ½" straight female
- Mounting bracket
Technical data
Maximum operating pressure:
150 psi
Medium temperature range:
32 – 212 °F
Material:
steel
Download
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 549506A | 1" FNPT union |
||
|
3D models
Tender text
CALEFFI, 549506A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549566A | 1" Press union |
||
|
3D models
Tender text
CALEFFI, 549566A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1" Press, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549596A | 1" Sweat union |
||
|
3D models
Tender text
CALEFFI, 549596A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1" Sweat, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549507A | 1 1/4" FNPT union |
||
|
3D models
Tender text
CALEFFI, 549507A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/4" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549567A | 1 1/4" Press |
||
|
3D models
Tender text
CALEFFI, 549567A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/4" Press. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549597A | 1 1/4" Sweat union |
||
|
3D models
Tender text
CALEFFI, 549597A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/4" Sweat, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549508A | 1 1/2" FNPT union |
||
|
3D models
Tender text
CALEFFI, 549508A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/2" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549568A | 1 1/2" Press union |
||
|
3D models
Tender text
CALEFFI, 549568A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/2" Press, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549598A | 1 1/2" Press union |
||
|
3D models
Tender text
CALEFFI, 549598A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/2" Press, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549509A | 2" FNPT union |
||
|
3D models
Tender text
CALEFFI, 549509A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 2" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549569A | 2" Press union |
||
|
3D models
Tender text
CALEFFI, 549569A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 2" Press, union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549599A | 2" Press sweat union |
||
|
3D models
Tender text
CALEFFI, 549599A, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 2" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549506US 001 | 1" Press no tailpiece |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 549506US 001, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1" Press, no tailpiece. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549507US 001 | 1 1/4" Press no tailpiece |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 549507US 001, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/4" Press, no tailpiece. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549508US 001 | 1 1/2" Press no tailpiece |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 549508US 001, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 1 1/2" Press, no tailpiece. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
| 549509US 001 | 2" Press no tailpiece |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 549509US 001, SEP4™.
4-in-1 Hydraulic Separators (Union)
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
Drain valve
Thermowell tap: ½" straight female
Mounting bracket
connection: 2" Press, no tailpiece. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 212 °F. Material: steel.
|
|||
