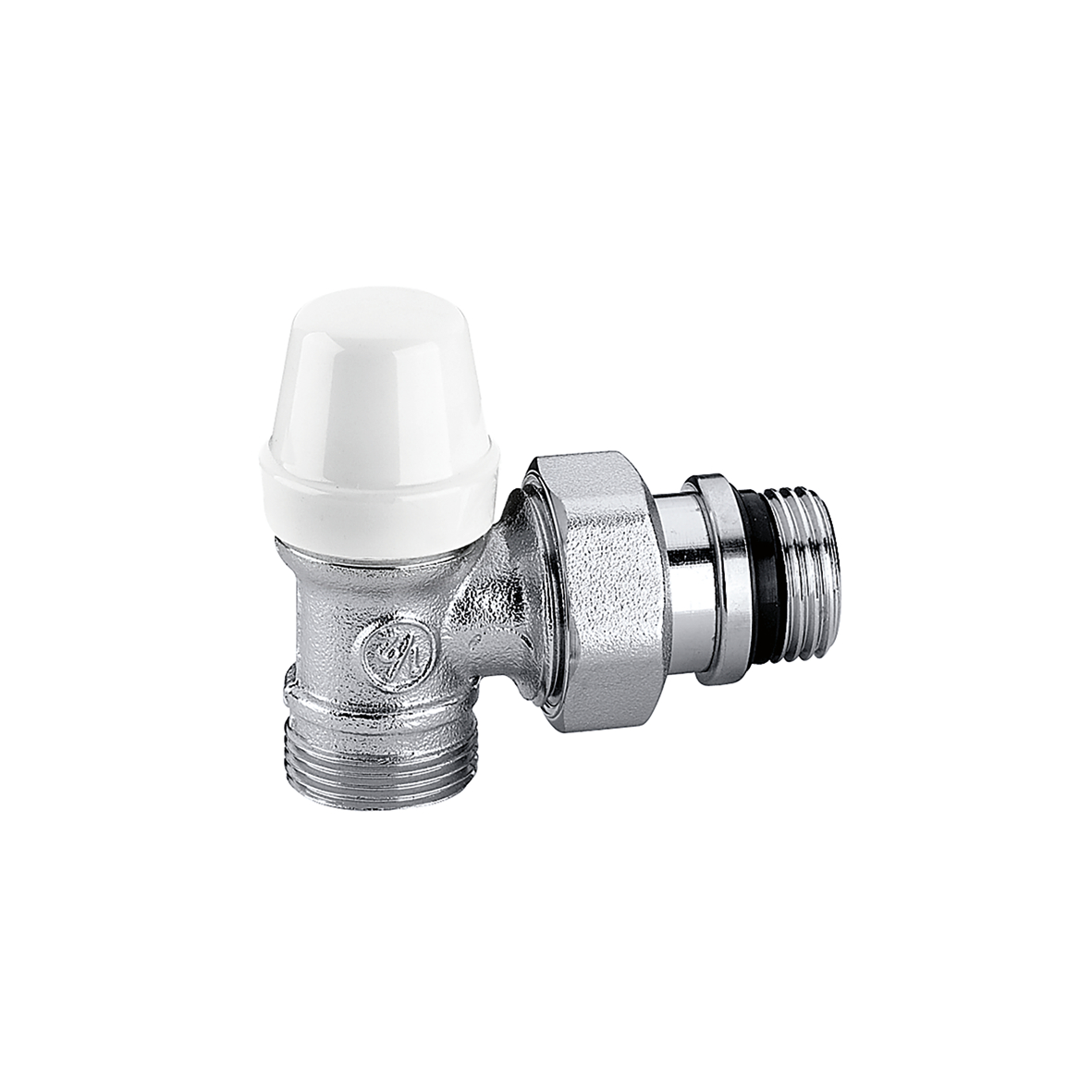

Isolation and balancing valve (angled)
Product Description
Isolation and balancing valve (angled)
Manual adjustment of valve to isolate radiator or modulate flow rate
Technical data
Finish:
Chrome
Material:
brass
Medium temperature range:
5–100 °C
Maximum operating pressure:
10 bar
Download
pdf
Drawings and specifications
| Part number | Radiator Connection | Pipe Connection | Kvs |
|---|---|---|---|
| 342452 | 1/2" straight thread M 1 inlet, angled connection |
3/4" straight thread M end outlet, angled connection |
3.99 m³/h |
|
3D models
Tender text
CALEFFI, 342452.
Isolation and balancing valve (angled)
Manual adjustment of valve to isolate radiator or modulate flow rate
Radiator Connection: 1/2" straight thread M, 1 inlet, angled connection. Pipe Connection: 3/4" straight thread M, end outlet, angled connection, Connection for Caleffi fittings. Maximum operating pressure: 10 bar. Medium temperature range: 5–100 °C. Finish: Chrome. Kvs: 3.99 m³/h. Material: brass.
SCIP code
7e4d3880-3241-433e-bbbf-e37dd1792249
|
|||
