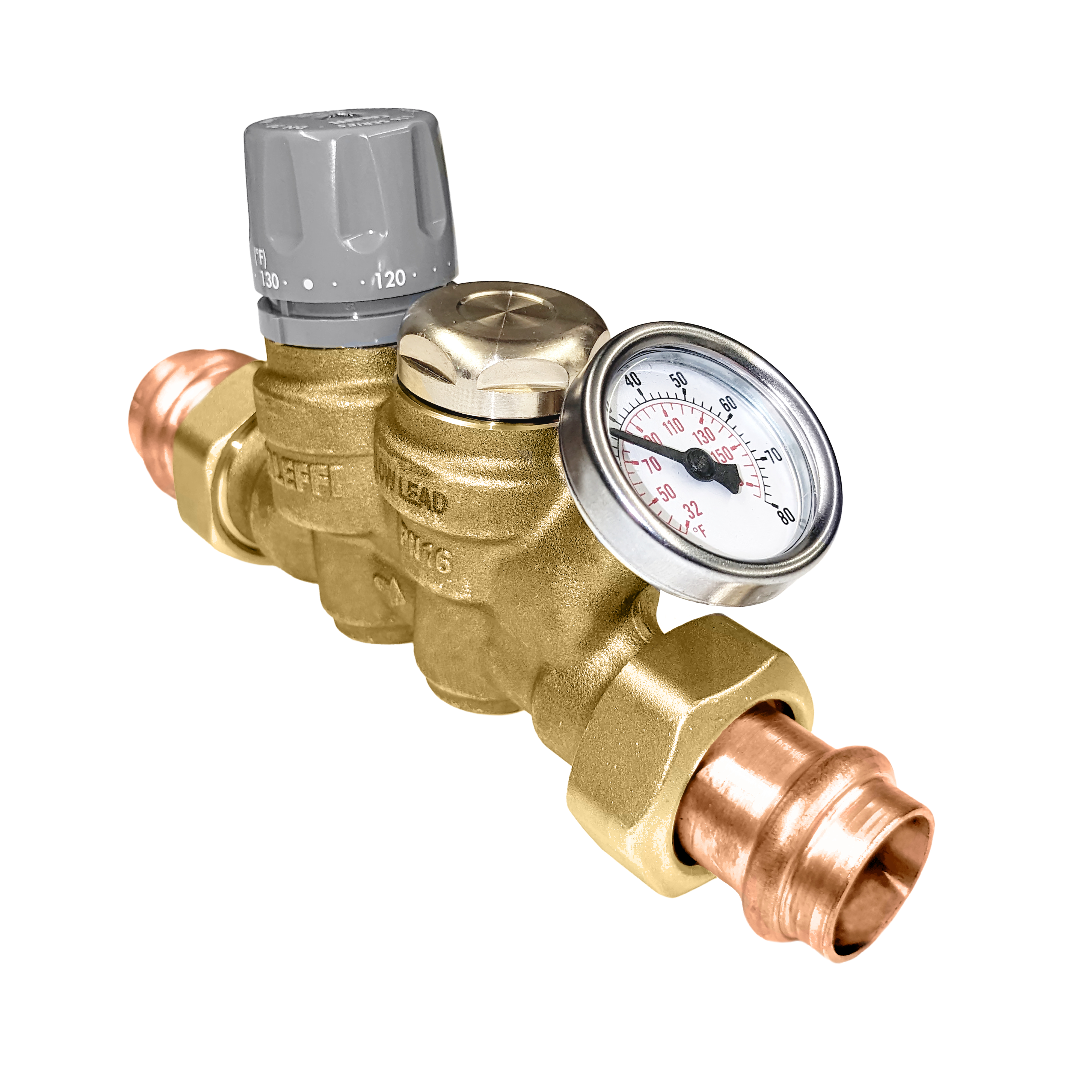

ThermoSetter™, Thermal balancing valve with themal disinfection capablity (press)
Product Description
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
Technical data
Maximum working pressure:
230 psi
Adjustment temperature range:
95 – 140 °F
pdf
Drawings and specifications
| Part number | Main connection | Cv max | Cv min |
|---|---|---|---|
| 116140AC 006 | 1/2" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 1/2", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116140AC 106 | 1/2" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 1/2", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116141AC 006 | 1/2" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 1/2", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116141AC 106 | 1/2" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 1/2", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116150AC 006 | 3/4" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 3/4", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116150AC 106 | 3/4" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 3/4", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116151AC 006 | 3/4" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 3/4", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
| 116151AC 106 | 3/4" press union |
4.4 gpm | 1.0 gpm |
|
Cv design
1.9 gpm
|
Cv disinfection
2.3 gpm
|
||
|
3D models
Tender text
Thermal balancing valve with themal disinfection capablity (press)
Features union connections.
Standard with outlet check valve.
For domestic hot water recirculation circuits.
Includes capped bypass cavity for potential future upgrade.
Drywell for temperature gauge or probe.
main connection: 3/4", press union. Maximum working pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Cv max: 4.4 gpm. Cv min: 1.0 gpm. Cv design: 1.9 gpm. Cv disinfection: 2.3 gpm.
|
|||
