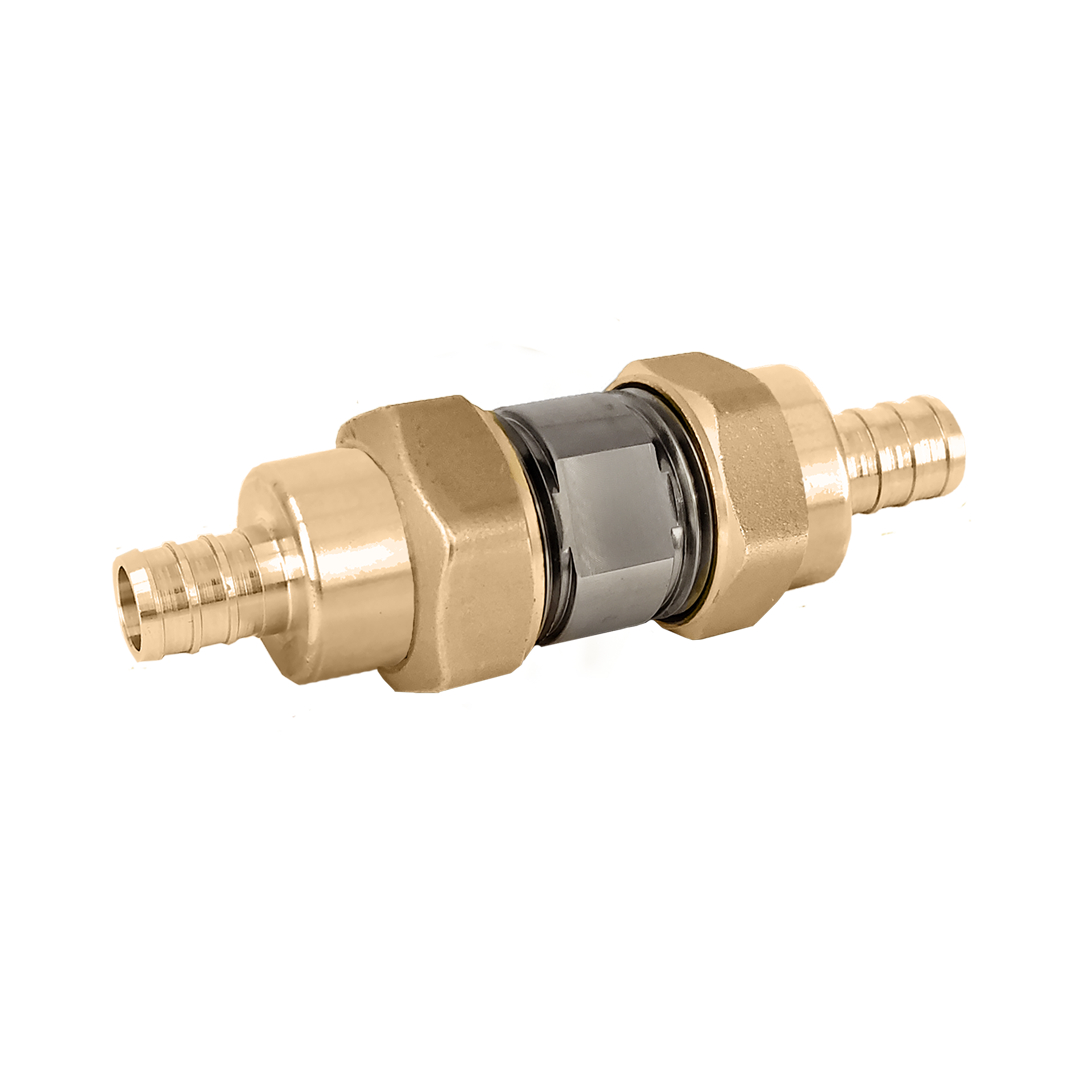

Serviceable flow check valve (PEX)
Product Description
Serviceable flow check valve (PEX)
Serviceable low lead check valves.
PEX crimp: ASTM F1808.
PEX expansion: ASTM F1960.
Max. temperature: for one hour: 190°F (88°C).
Opening pressure differential: 0.25 psi (1/2"through 1 1/4"); 0.50 psi (1 1/2", 2").
Technical data
Maximum working pressure:
150 psi
Medium temperature range:
32–150 °F
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| NA51247 | 1/2" PEX crimp union |
17 | |
|
3D models
Tender text
Serviceable flow check valve (PEX)
Serviceable low lead check valves.
PEX crimp: ASTM F1808. PEX expansion: ASTM F1960. Max. temperature: for one hour: 190°F (88°C). Opening pressure differential: 0.25 psi (1/2"through 1 1/4"); 0.50 psi (1 1/2", 2"). Connection: 1/2", PEX crimp union. Maximum working pressure: 150 psi. Medium temperature range: 32–150 °F. Cv: 17.
|
|||
| NA51248 | 1/2" PEX expansion union |
17 | |
|
3D models
Tender text
Serviceable flow check valve (PEX)
Serviceable low lead check valves.
PEX crimp: ASTM F1808. PEX expansion: ASTM F1960. Max. temperature: for one hour: 190°F (88°C). Opening pressure differential: 0.25 psi (1/2"through 1 1/4"); 0.50 psi (1 1/2", 2"). Connection: 1/2", PEX expansion union. Maximum working pressure: 150 psi. Medium temperature range: 32–150 °F. Cv: 17.
|
|||
| NA51257 | 3/4" PEX crimp union |
17 | |
|
3D models
Tender text
Serviceable flow check valve (PEX)
Serviceable low lead check valves.
PEX crimp: ASTM F1808. PEX expansion: ASTM F1960. Max. temperature: for one hour: 190°F (88°C). Opening pressure differential: 0.25 psi (1/2"through 1 1/4"); 0.50 psi (1 1/2", 2"). Connection: 3/4", PEX crimp union. Maximum working pressure: 150 psi. Medium temperature range: 32–150 °F. Cv: 17.
|
|||
| NA51258 | 3/4" PEX expansion union |
17 | |
|
3D models
Tender text
Serviceable flow check valve (PEX)
Serviceable low lead check valves.
PEX crimp: ASTM F1808. PEX expansion: ASTM F1960. Max. temperature: for one hour: 190°F (88°C). Opening pressure differential: 0.25 psi (1/2"through 1 1/4"); 0.50 psi (1 1/2", 2"). Connection: 3/4", PEX expansion union. Maximum working pressure: 150 psi. Medium temperature range: 32–150 °F. Cv: 17.
|
|||
