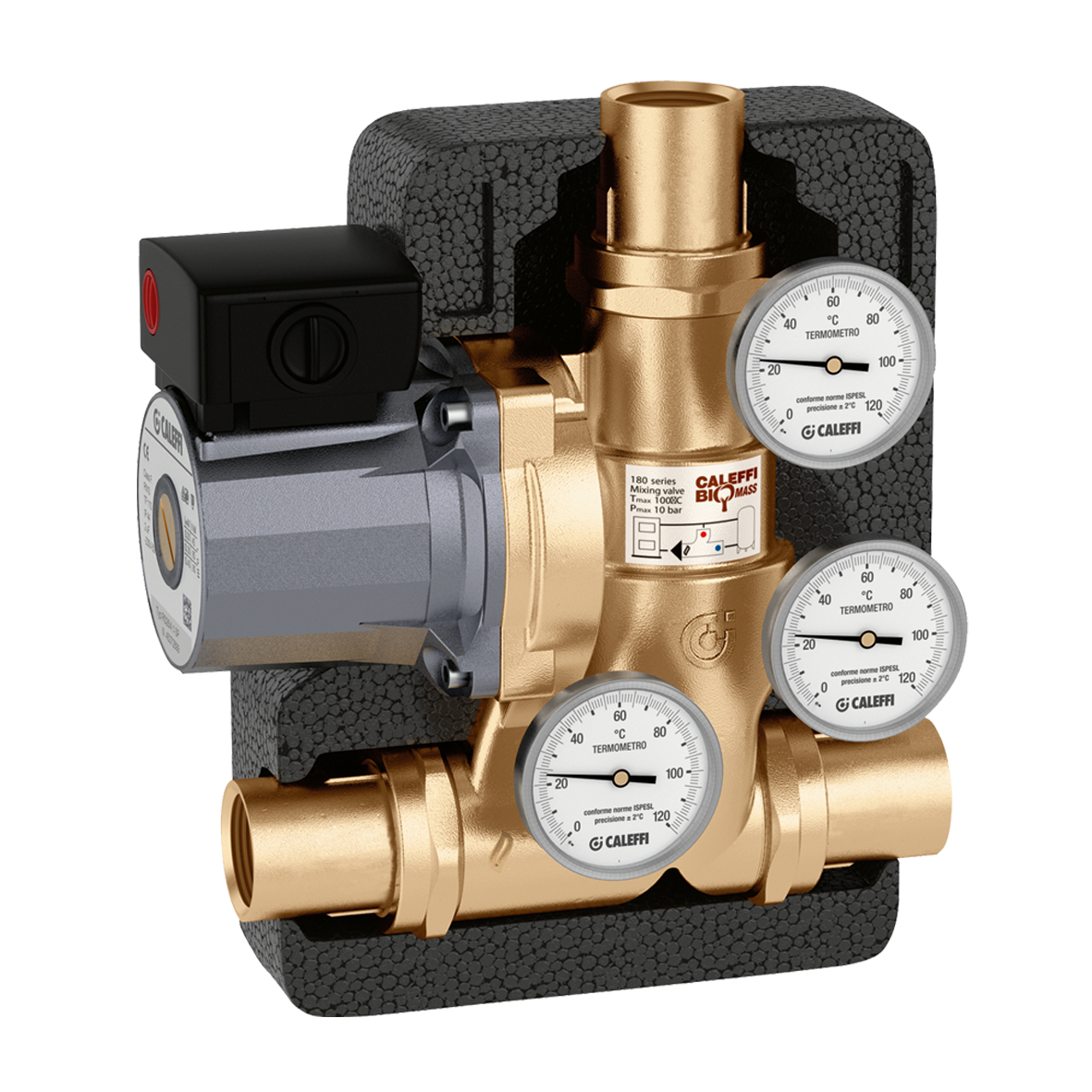

ThermoBloc™, Recirculation and distribution unit
Product Description
Recirculation and distribution unit
ThermoBloc™ boiler protection recirculation and distribution unit.
115ºF, 160ºF Tset optional models.
By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F).
Max.imum pumping capacity: 10 gpm.
Thermostatic sensor: 130ºF & 140°F Tset standard selections, see below.
Technical data
Maximum working pressure:
150 psi
Medium temperature range:
40–210 °F
Maximum percentage of glycol:
50 %
Medium:
water, glycol solutions
Temperature gauge scale:
30–250 °F
Drawings and specifications
| Part number | Note | ||
|---|---|---|---|
| F19379 | Replacement Pump | ||
|
3D models
Tender text
Recirculation and distribution unit
ThermoBloc™ boiler protection recirculation and distribution unit.
115ºF, 160ºF Tset optional models. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). Max.imum pumping capacity: 10 gpm. Thermostatic sensor: 130ºF & 140°F Tset standard selections, see below. Maximum working pressure: 150 psi. Medium temperature range: 40–210 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Temperature gauge scale: 30–250 °F.
SCIP code
CODICE IN FASE DI ANALISI
|
|||
