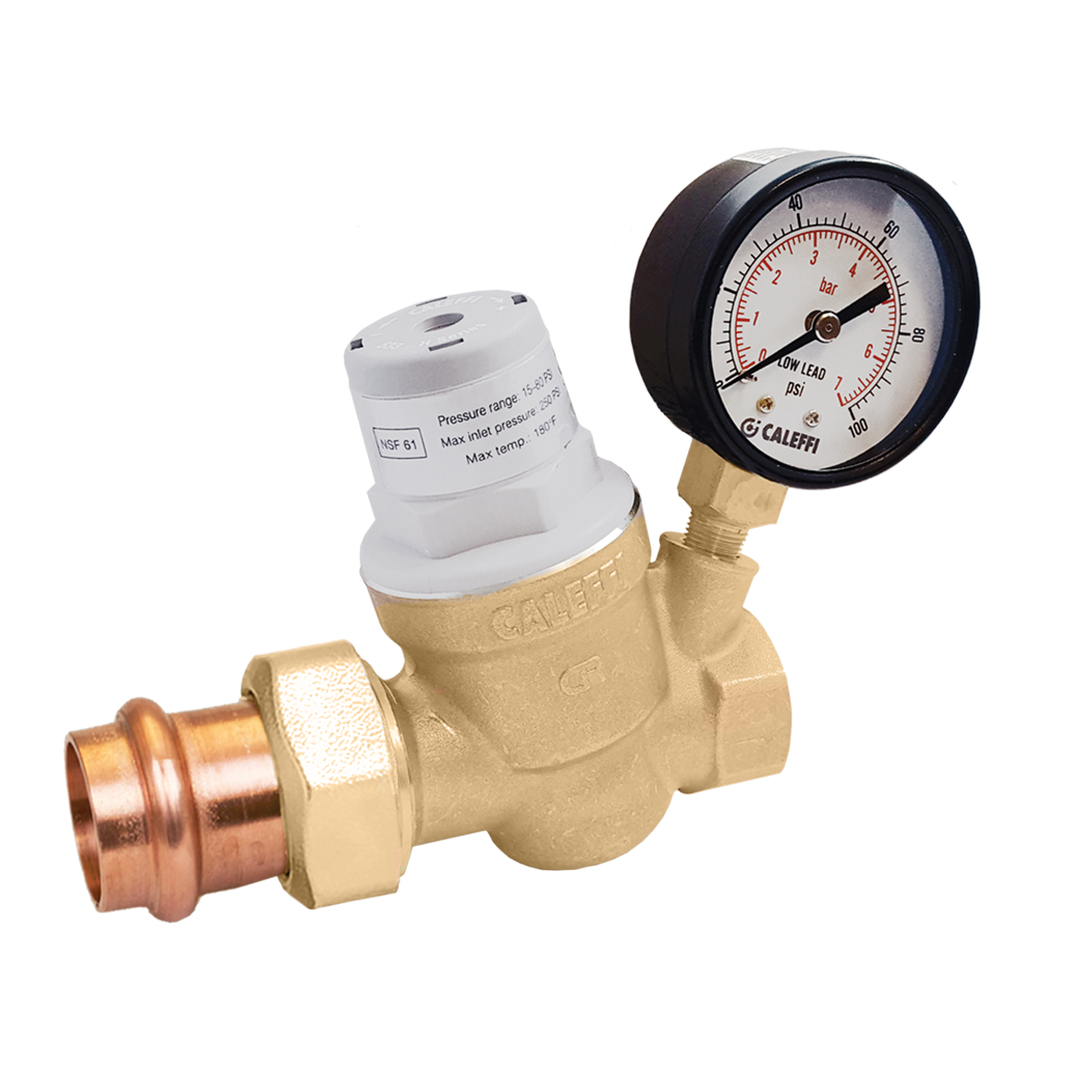

PresCal™, Compact (press)
Product Description
Compact (press)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point.
Technical data
Maximum working pressure:
250 psi
Medium temperature range:
35.6–180 °F
Setting:
45 psi
Adjustment pressure range:
15–80 psi
Material:
low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Minimum flow rate |
|---|---|---|---|
| 533640HA | 1/2" press union |
1.5 gpm | 10 gpm |
|
3D models
Tender text
Compact (press)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 1/2", press union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 1.5 gpm. Maximum flow rate: 10 gpm. Material: low lead brass.
|
|||
| 533641HA | 1/2" press union |
1.5 gpm | 10 gpm |
|
3D models
Tender text
Compact (press)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 1/2", press union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 1.5 gpm. Maximum flow rate: 10 gpm. Material: low lead brass.
|
|||
| 533650HA | 3/4" press union |
Inlet fittings | 1.5 gpm |
|
Maximum flow rate
10 gpm
|
|||
|
3D models
Tender text
Compact (press)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 3/4", press union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 1.5 gpm. Maximum flow rate: 10 gpm. Material: low lead brass.
|
|||
| 533651HA | 3/4" press union |
Inlet fittings | 1.5 gpm |
|
Maximum flow rate
10 gpm
|
|||
|
3D models
Tender text
Compact (press)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 3/4", press union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 1.5 gpm. Maximum flow rate: 10 gpm. Material: low lead brass.
|
|||
