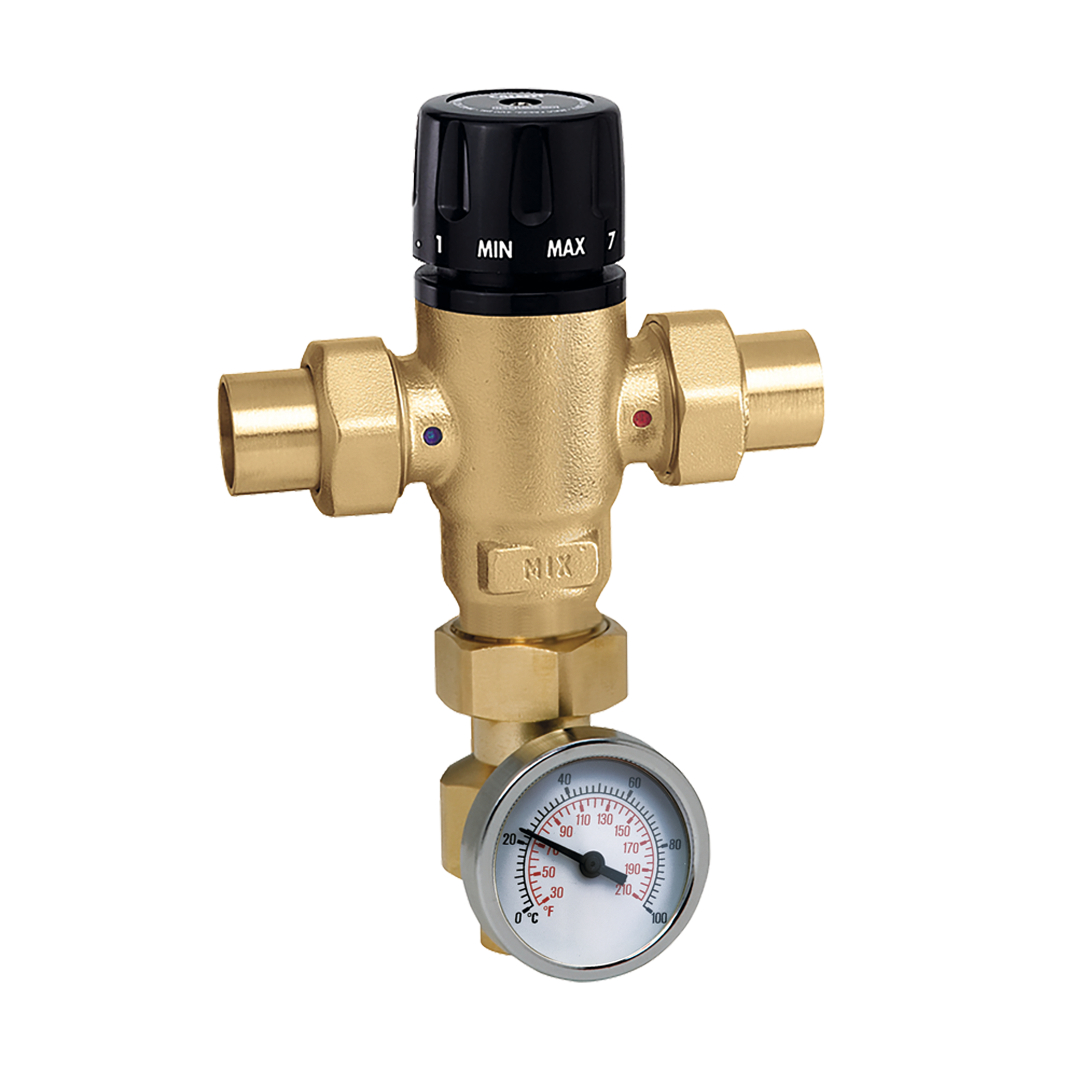

MixCal™, Adjustable thermostatic mixing valve with gauge (sweat)
Product Description
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob.
(0 gpm with recirculation).
Technical data
Maximum working pressure:
200 psi
Adjustment temperature range:
85–150 °F
Maximum inlet temperature:
200 °F
Temperature gauge scale:
30–210 °F
Flow rate working range:
1.0-14 gpm
Material:
low lead brass
Certifications
Download
Drawings and specifications
Part number | Connection | Note | Cv |
---|---|---|---|
521419A | 1/2" sweat union |
- | 3 |
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob. (0 gpm with recirculation). Connection: 1/2", sweat union. Maximum working pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: low lead brass.
|
|||
521419AC | 1/2" sweat union |
Includes check valves | 3 |
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob. (0 gpm with recirculation). Connection: 1/2", sweat union. Maximum working pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: low lead brass.
|
|||
521619A | 1" sweat union |
- | 3 |
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob. (0 gpm with recirculation). Connection: 1", sweat union. Maximum working pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: low lead brass.
|
|||
521619AC | 1" sweat union |
Includes check valves | 3 |
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob. (0 gpm with recirculation). Connection: 1", sweat union. Maximum working pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: low lead brass.
|
|||
521519A | 3/4" sweat union |
- | 3 |
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob. (0 gpm with recirculation). Connection: 3/4", sweat union. Maximum working pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: low lead brass.
|
|||
521519AC | 3/4" sweat union |
Includes check valves | 3 |
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (sweat)
Adjustable thermostatic mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Locking set point knob. (0 gpm with recirculation). Connection: 3/4", sweat union. Maximum working pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: low lead brass.
|
